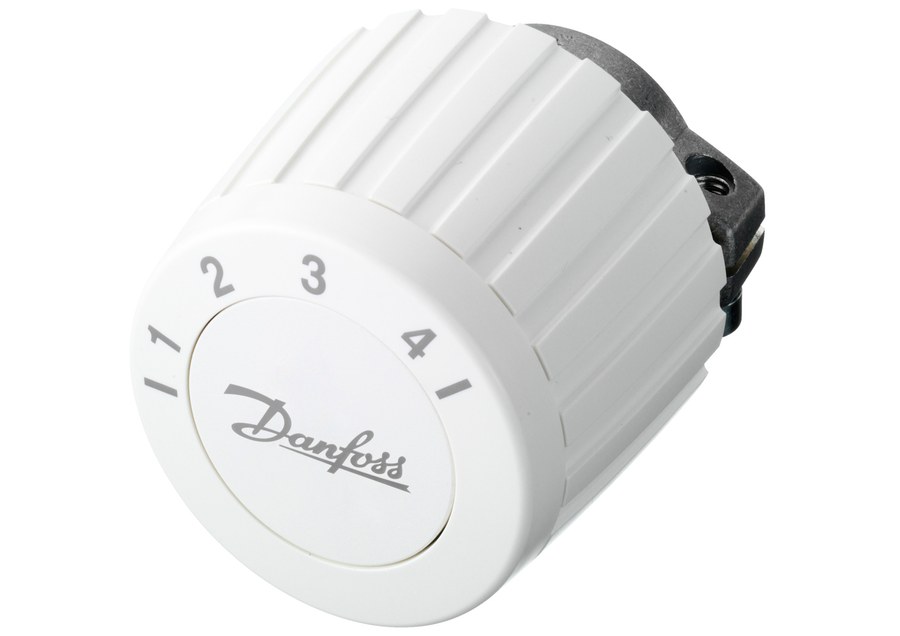

Danfoss FJVR Return-Temperature Limiter Sensor 10–50 °C (003L1040)

Danfoss FJVR return-temperature limiter sensor, OEM order code 003L1040. Self-acting thermostatic head with a built-in sensor that mounts on an FJVR return-temperature limiter valve body (FJVR connection) and throttles the valve to hold the set return temperature. Adjustable setting range 10 °C to 50 °C (no shut-off position), white ral 9016 cap. No auxiliary power required. Net weight 0.143 Kilogram. EAN 5702421034484. Data quoted verbatim from store.danfoss.com (code 003L1040).

Brand

Danfoss

Part number

003L1040

Code number

003L1040

Type

FJVR Sensor

Product group

Return temperature limiters

Function

Self-acting return-temperature limiter sensor / thermostatic head for FJVR valves

Connection type to valve

FJVR

Sensor type

Built-in sensor

Sensor setting-temperature range

10 °C to 50 °C

Shut-off function

No

Colour

White RAL 9016

Net weight

0.143 Kilogram

Gross weight

0.156 Kilogram

EAN

5702421034484

HS code

9032.10 (thermostats)

CE mark

No

China RoHS compliance

Out of scope

Description

Return temperature limiter sensor, type FJVR, should be combined with FJVR valve

Design

Return temperature limiter

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Label product

Yes

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Sensor setting temperature [°C] [Max]

50 °C

Sensor setting temperature [°C] [Min]

10 °C

UL mark

No

UNSPSC CODE

40141616

Temperature Range

10 °C to 50 °C (setting range)

Classification / Approval

CE

HS Code

9032.10
