Product Description
Danfoss VFM 2 two-way seated control-valve body that throttles flow through a single seat, OEM order code 065B3087.. Nominal size DN 250, Kvs 900 m³/h, nominal pressure PN 25. Equal percentage flow characteristic. The valve body is driven by a matched Danfoss electric actuator (AMV/AME series) sized to the valve stroke. Net weight 334 Kilogram. Data quoted verbatim from store.danfoss.com (code 065B3087).
Technical Specifications
- Brand
- Danfoss
- Part number
- 065B3087
- Code number
- 065B3087
- Type
- VFM 2
- Product group
- Motorized control valves
- Valve function
- Two-way (2-port) seated flanged control-valve body
- Nominal size
- DN 250
- Kvs value
- 900 m³/h
- Nominal pressure
- PN 25
- Connection
- Flange
- Net weight
- 334 Kilogram
- Gross weight
- 374.5 Kilogram
- EAN
- 5710104512457
- HS code
- 8481.80 (taps, cocks, valves for pipes)
- Cavitation factor 100%
- 0.14
- Cavitation factor 25%
- 0.24
- Cavitation factor 50%
- 0.22
- Cavitation factor 75%
- 0.21
- China RoHS compliance
- Out of scope
- Connection types
- Flange
- Diameter [mm]
- 250 mm
- EU RoHS compliance
- Out of scope
- Kvs values [m³/h]
- 900 m³/h
- Pressure class
- PN 25
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Valve size
- DN 250
Standards & Compliance
- Pressure Rating
- PN 25
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Two-way seated valve body — requires a matched Danfoss electric actuator (AMV/AME series). Confirm Kvs (900 m³/h), nominal size (DN 250) and pressure class (PN 25) against the circuit design before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss Actuator-to-Valve Mounting Adapter — VFG(S), AFQM6, AFQM PN25
065B3527
Danfoss
Danfoss Stuffing-Box (Stem Gland) Service Kit for VFM Valves DN65-125
065B3529
Danfoss
Danfoss Stuffing-Box (Stem Gland) Service Kit for VFM Valves DN150-250
065B3530
Danfoss
Danfoss VS 2 PN 16 Two-Way Seated Externally-Threaded Control Valve Body DN 15, Kvs 0.63 m³/h
065B3550
Danfoss
Danfoss FHV-R Floor-Heating Regulating Combi-Valve 3/4", Kvs 0.9 m³/h (003L1000)
Danfoss
Danfoss FHV-A Floor-Heating Regulating Combi-Valve 3/4", Kvs 0.8 m³/h
003L1001
Danfoss
Danfoss FHV-R Floor-Heating Regulating Combi-Valve 3/4", Kvs 0.9 m³/h (003L1015)
Danfoss

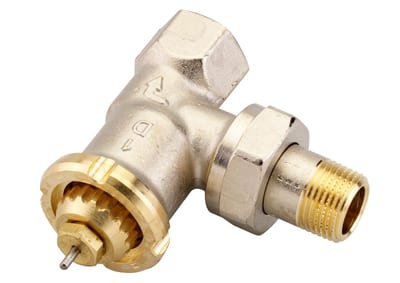

Danfoss FJVR Return-Temperature Limiter Valve DN 10 Angle, Kvs 0.39 m³/h, 10 bar
