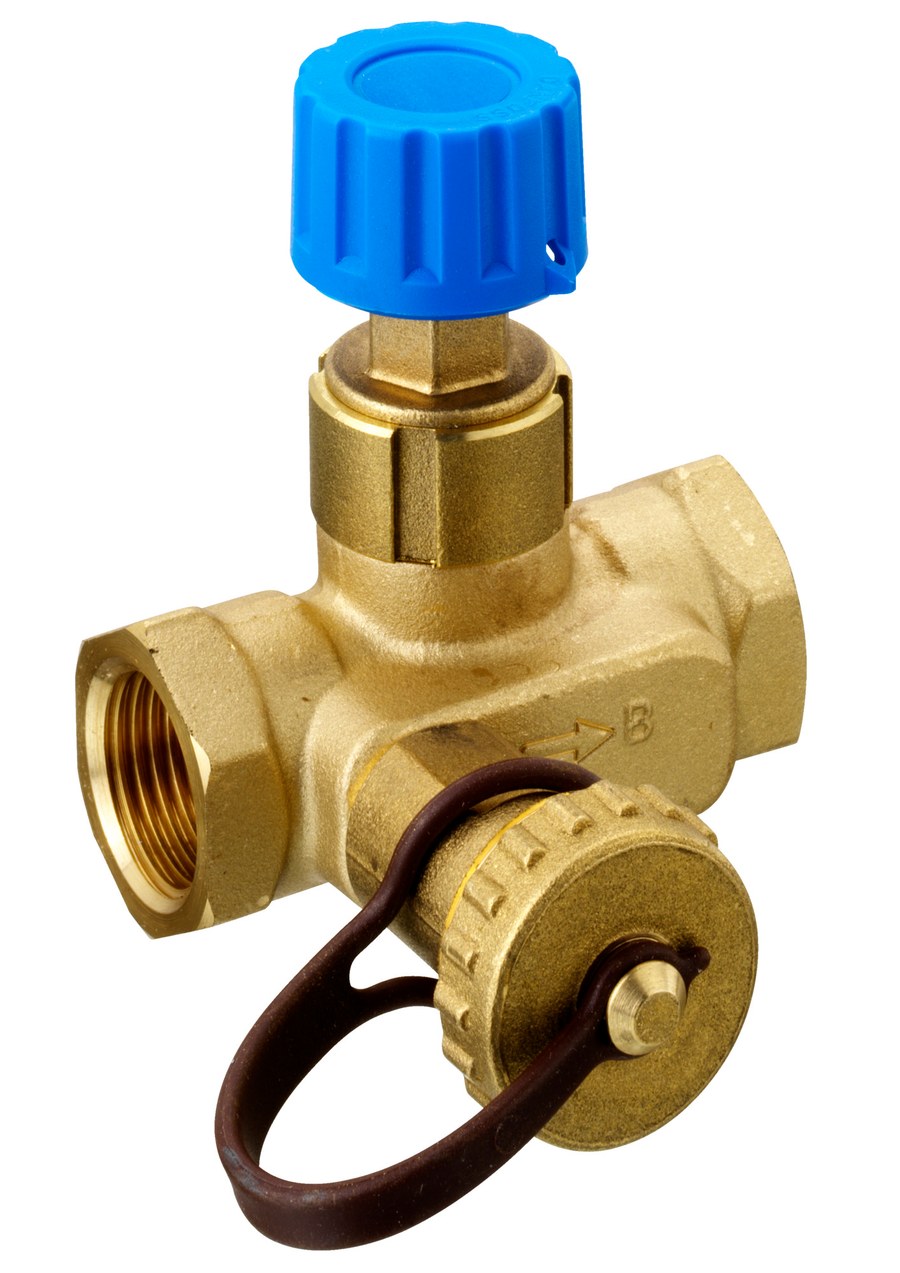

Danfoss USV-M DN 50 PN 16 manual static balancing valve, internal thread

Danfoss USV-M DN 50 PN 16 — manual (static) balancing valve for the risers and branches of hydronic heating and cooling systems; the measuring partner valve of the USV pair — carries the measuring/flow-limitation function and is upgradeable in situ to a differential-pressure (PV) controller. Presetting fixes the branch flow so design flow is distributed correctly across the network. Kvs 16 m³/h. Maximum differential pressure 80 kPa. Media temperature -20 °C to 120 °C. internal thread connection (Internal thread ISO 7/1; Rp 2). Brass body, PN 16. OEM designation "USV-M, DN 50, Internal thread ISO 7/1; Rp 2". OEM P/N 003Z2153. EAN 5702420082547. Technical data quoted verbatim from store.danfoss.com (code 003Z2153).

Code number

003Z2153

Type

USV-M

Product group

Manual balancing

Description

USV-M, DN 50, Internal thread ISO 7/1; Rp 2

Valve size

DN 50

Connection

Internal thread ISO 7/1; Rp 2

Valve body material

Brass

Kvs value

16 m³/h

Pressure class

PN 16

Max. differential pressure

80 kPa

Media temperature range

-20 °C to 120 °C

Setting scale

No

Shut-off function

Yes

Drain function

Yes

Flow limitation

Yes

Upgradeability

Yes

Contains batteries

No

EU RoHS compliance

Out of scope

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

2.194 kg

Gross weight

2.194 kg

Volume

2.466 L

EAN

5702420082547

HS code

8481.80

Size / Series

USV-M

Material

Valve body Brass

Thread Standard

ISO 7/1

Pressure Rating

PN 16

Temperature Range

-20 °C to 120 °C

HS Code

8481.80
