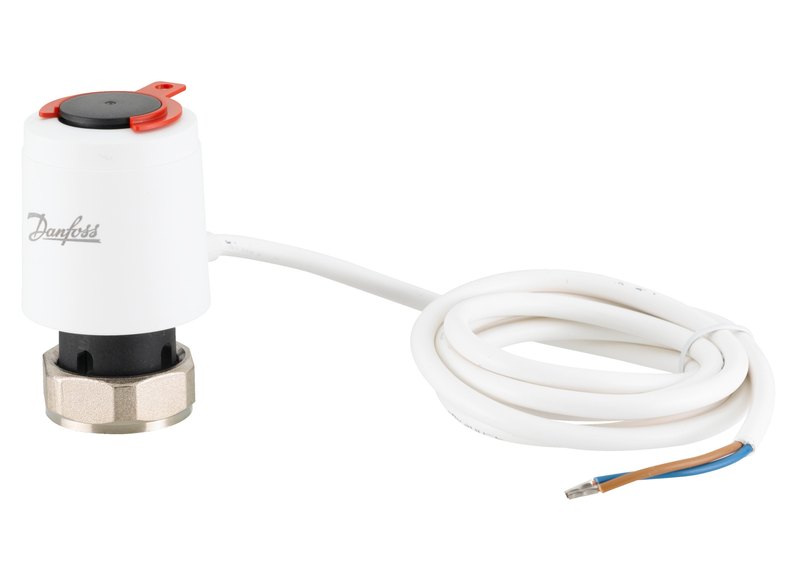

Danfoss TWA-D electrothermal actuator, 230 V AC, normally open, 1.2 m cable

Danfoss TWA-D electrothermal (thermal-wax) valve actuator, OEM order code 088H3153. The TWA-D converts a switching signal from a room thermostat or controller into valve movement on hydronic floor-heating manifolds and radiator/zone valves — no auxiliary air or hydraulics. Normally open (NO) — the valve is open when de-energised and closes when the actuator is powered. Supply voltage 230 V AC (50/60 Hz), power consumption 2 W. RTD connection; fits Danfoss RTD valve bodies. 1.2 m connecting cable. Enclosure rating IP41. Net weight 0.156 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 088H3153). OEM P/N 088H3153, EAN 5702420072395.

Brand

Danfoss

Part number

088H3153

Type

TWA-D

Product group

Thermal actuators

Description

TWA-D NO 230V

Actuator principle

Electrothermal (thermal wax element)

Valve function

NO

End-switch

No

Supply voltage

230 V AC

Frequency range

50 Hz – 60 Hz

Power consumption

2 W

Connection

RTD

Connection type

RTD

Cable length

1.2 m

IP protection class

IP41

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.156 Kilogram

Gross weight

0.156 Kilogram

EAN

5702420072395

HS code

8481.90 (parts of taps, cocks, valves and similar appliances)

Material

Polyamide housing

IP Rating

IP41

HS Code

8481.90
