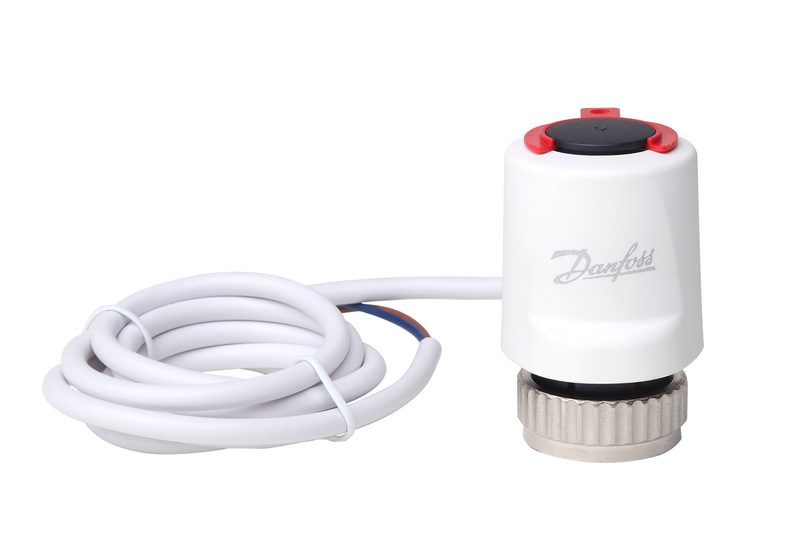

Danfoss Thermot electrothermal actuator, M30X1.5, 230 V AC, normally closed, 0.6 m cable

Danfoss Thermot electrothermal (thermal-wax) valve actuator, OEM order code 088H3230. The Thermot converts a switching signal from a room thermostat or controller into valve movement on hydronic floor-heating manifolds and radiator/zone valves — no auxiliary air or hydraulics. Normally closed (NC) — the valve is closed when de-energised and opens when the actuator is powered. Supply voltage 230 V AC (50/60 Hz), power consumption 2 W. M 30 x 1.5 connection. 0.6 m connecting cable. Enclosure rating IP41. Net weight 0.112 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 088H3230). OEM P/N 088H3230.

Brand

Danfoss

Part number

088H3230

Type

Thermot

Product group

Thermal actuators

Description

Thermot M30x1.5 NC 230V

Actuator principle

Electrothermal (thermal wax element)

Valve function

NC

End-switch

No

Supply voltage

230 V AC

Frequency range

50 Hz – 60 Hz

Power consumption

2 W

Connection size

M 30 x 1.5

Cable length

0.6 m

IP protection class

IP41

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.112 Kilogram

Gross weight

0.151 Kilogram

HS code

8481.90 (parts of taps, cocks, valves and similar appliances)

Code number

088H3230

Supply voltage [V] AC

230 V

Material

Polyamide housing

IP Rating

IP41

HS Code

8481.90
