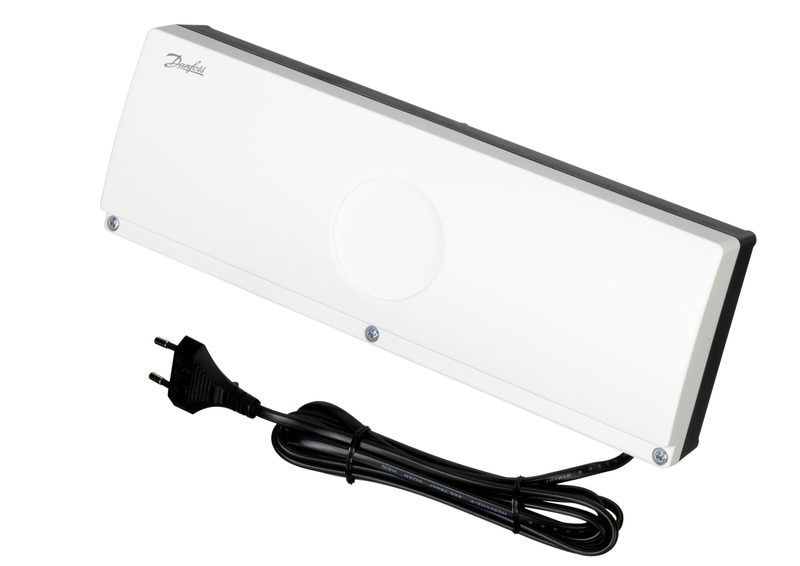

Danfoss FH-WC connection box, 24 V, 10-Channel floor-heating wiring centre
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FH-WC connection box (wiring centre), OEM order code 088H0017. Central wiring unit for hard-wired Danfoss floor-heating systems — links room thermostats to the electrothermal actuators on the manifold and switches boiler and circulation-pump relays. 24 V, 10 channels / 10 actuator outputs, 3 W per output, on-wall mounting, enclosure rating IP20. Net weight 1.52 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 088H0017). OEM P/N 088H0017, EAN 5702420115825.
Technical Specifications
- Brand
- Danfoss
- Part number
- 088H0017
- Type
- FH Connection Boxes
- Product group
- Floor Heating Controls
- Description
- FH-WC Connection Box 24V
- Heating control type
- Wiring center
- Interfaces
- Wired 24V
- Installation
- On-wall
- On-wall
- Yes
- In-wall
- No
- Number of channels
- 10
- Number of outputs
- 10 pc
- Output voltage AC
- 24 V
- Power per output
- 3 W
- Boiler relay
- Yes
- Pump relay
- Yes
- Suitable for
- 24V actuators
- Usage
- for 10 outputs
- EU RoHS compliance
- Yes
- IP protection class
- IP20
- REACH candidate-list substances
- No
- Net weight
- 1.52 Kilogram
- Gross weight
- 1.52 Kilogram
- EAN
- 5702420115825
- HS code
- 8537.10 (boards/panels for electric control, up to 1000 V)
Standards & Compliance
- Material
- Polyamide housing
- IP Rating
- IP20
- HS Code
- 8537.10
Compatibility & Fitment
Wiring centre for the hard-wired Danfoss FH floor-heating range (FH-WS/FH-WT thermostats + TWA/Thermot 24 V actuators). Match actuator and thermostat supply voltage to 24 V and confirm channel count (10) against the number of manifold loops.
