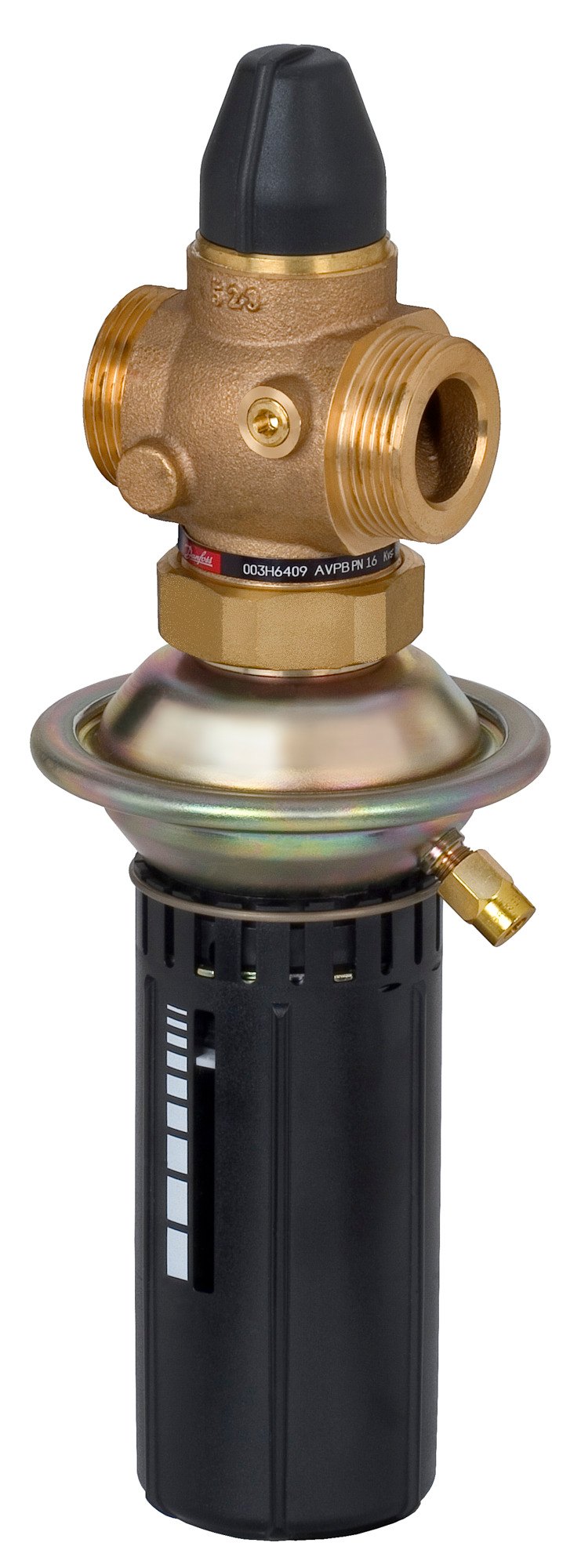

Danfoss AVPB-F differential pressure controller & flow limiter, PN 16, DN 15, fixed Δp 0.2 bar, 0.06–1.4 m³/h, external thread G ¾ A

Danfoss AVPB-F (003H6411) — self-acting differential pressure control and flow limiter, PN 16, DN 15, for district heating and central heating systems. The AVPB-F closes on rising differential pressure or when the set maximum flow is exceeded, holding a stable differential pressure across the controlled circuit so that connected control valves keep their authority. The controller combines a control valve with an adjustable flow restrictor and an actuator with one control diaphragm (fixed differential-pressure setting, no handle). Differential-pressure setting fixed at 0.2 bar; flow rate 0.06–1.4 m³/h. Maximum differential pressure 12 bar, maximum water temperature 140 °C, cavitation factor z ≥ 0.6. Valve body red bronze Rg 5 (CuSn5ZnPb, DIN 1705 W.no. 2.1096.01), control diaphragm EPDM, valve insert/spindle CrNi steel 1.4404. Connection external thread G ¾ A (ISO 228/1) via tailpieces (ordered separately). Media: water for district/central heating; glycolic water up to 30% resistant to -30 °C. OEM P/N 003H6411. Technical data quoted verbatim from the Danfoss AVPB/AVPB-F PN 16 data sheet and store.danfoss.com (code 003H6411). 2.1096.01); valve insert/spindle CrNi steel 1.4404; control diaphragm EPDM; Pressure rating: PN 16 (max. differential pressure 12 bar); Temperature range: up to 140 °C (heating water); glycolic water resistant to -30 °C; HS code: 8481.80. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

003H6411

Type

AVPB-F

Product group

Pressure flow controllers

Description

Self-acting differential pressure control and flow limiter (district heating)

Valve size

DN 15

Pressure class

PN 16

Connection

External thread G ¾ A (ISO 228/1), via tailpieces

Flow rate [m³/h]

0.06 - 1.4

Differential pressure setting

0.2 bar (fixed setting)

Max. differential pressure

12 bar

Max. water temperature

140 °C

Cavitation factor z

≥ 0.6

Mounting version

Return

Permissible media

Water for district/central heating systems; glycolic water (≤30%) resistant to -30 °C

Valve body material

Red bronze Rg 5 (CuSn5ZnPb, DIN 1705 W.no. 2.1096.01)

Valve insert / spindle

CrNi steel 1.4404

Control diaphragm

EPDM

EU RoHS compliance

Yes with exemptions (6(c))

REACH Candidate List substance

Lead (CAS no. 7439-92-1)

EAN

5702421539309

Material

Valve body red bronze Rg 5 (CuSn5ZnPb, DIN 1705 W.no. 2.1096.01); valve insert/spindle CrNi steel 1.4404; control diaphragm EPDM

Pressure Rating

PN 16 (max. differential pressure 12 bar)

Temperature Range

up to 140 °C (heating water); glycolic water resistant to -30 °C

HS Code

8481.80
