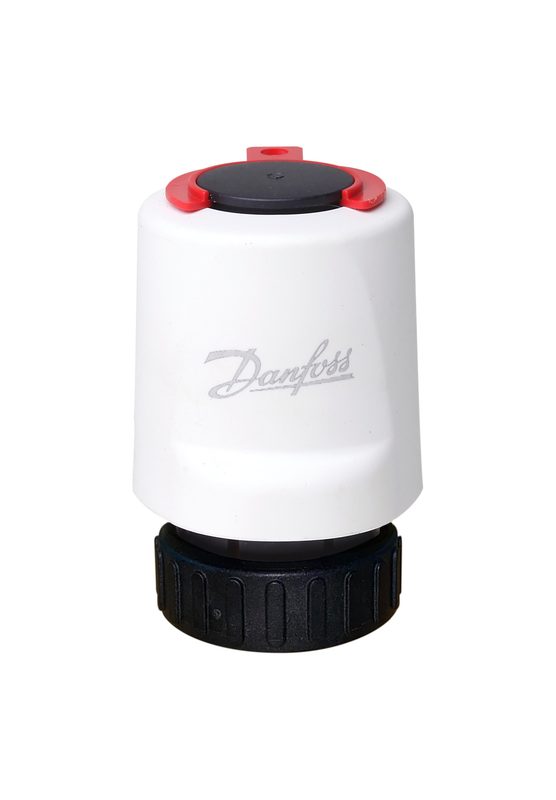

Danfoss Thermot electrothermal actuator, M30X1.5, 24 V AC, normally open, 0.95 m cable

Danfoss Thermot electrothermal (thermal-wax) valve actuator, OEM order code 088H3218. The Thermot converts a switching signal from a room thermostat or controller into valve movement on hydronic floor-heating manifolds and radiator/zone valves — no auxiliary air or hydraulics. Normally open (NO) — the valve is open when de-energised and closes when the actuator is powered. Supply voltage 24 V AC (50/60 Hz), power consumption 2 W. M 30 x 1.5 connection. 0.95 m connecting cable. Enclosure rating IP41. Net weight 136 Gram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 088H3218). OEM P/N 088H3218, EAN 5702425110139.

Brand

Danfoss

Part number

088H3218

Type

Thermot

Product group

Thermal actuators

Description

Thermot M30x1.5 NO 24V

Actuator principle

Electrothermal (thermal wax element)

Valve function

NO

End-switch

No

Supply voltage

24 V AC

Frequency range

50 Hz – 60 Hz

Power consumption

2 W

Connection size

M 30 x 1.5

Cable length

0.95 m

IP protection class

IP41

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

136 Gram

Gross weight

136 Gram

EAN

5702425110139

HS code

8481.90 (parts of taps, cocks, valves and similar appliances)

Cable length [m]

0.95 m

Frequency range [Hz] [Max]

60 Hz

Frequency range [Hz] [Min]

50 Hz

Power consumption [W]

2 W

Supply voltage [V] AC

24 V

Material

Polyamide housing

IP Rating

IP41

HS Code

8481.90
