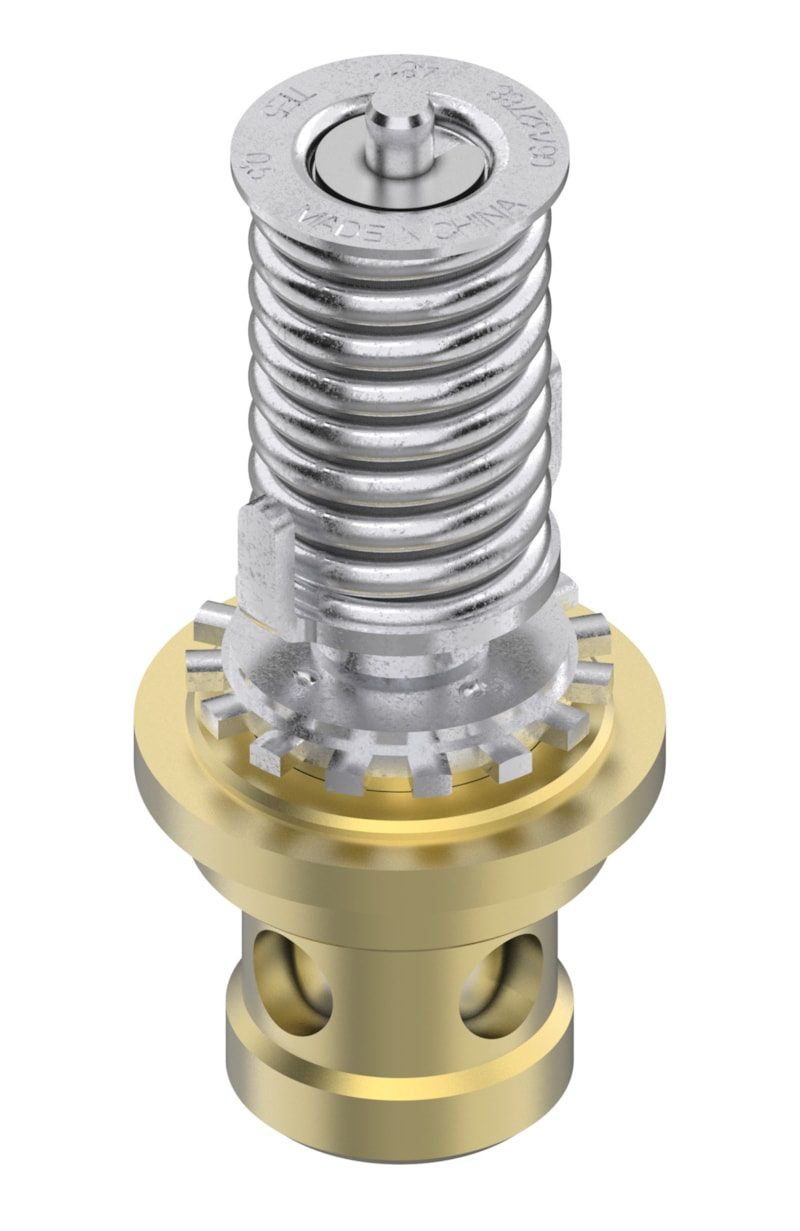

Danfoss orifice assembly no. 0.5 for TE 5 thermostatic expansion valve, rated 7 kW / 2 TR R404A (Range N)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable orifice assembly (ORF) no. 0.5 for the TE 5 thermostatic expansion valve. rated 7 kW / 2 TR R404A (Range N). Compatible refrigerants: R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A. Fits the TE 5 valve body of the TE parts program.
Technical Specifications
- Type
- Orifice assembly (ORF, thermostatic expansion valve)
- Used for
- TE 5
- Orifice no.
- 0.5
- Refrigerants
- R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A
- Rated capacity R404A/R507A
- Range N 7 kW / 2 TR, Range B 4.2 kW / 1.2 TR
- Rated capacity R134a
- Range N 5 kW / 1.5 TR
- Rating basis
- te 4.4 °C, tc 38 °C, tliq 37 °C (ARI)
- Net weight
- 0.101 kg / Gross: 0.132 kg
- EAN
- 5702428320955
- Code number
- 067B2788
- Product group
- Expansion valves
- Orifice size
- 0,5
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Rated cap. cond. Range N [IMP]
- tcond=100 °F; tevap=40 °F; tliq=98 °F
- Rated cap. R134a, Range N
- 5.00 kW, 1.50 TR
- Rated cap. R22, Range B
- 6.48 kW, 1.84 TR
- Rated cap. R22, Range N
- 9.00 kW, 2.50 TR
- Rated cap. R404A, Range B
- 4.20 kW, 1.20 TR
- Rated cap. R404A, Range N
- 7.00 kW, 2.00 TR
- Rated cap. R407A, Range N
- 9.00 kW, 2.50 TR
- Rated cap. R407C, Range N
- 11.00 kW, 3.00 TR
- Rated cap. R407F, Range N
- 11.00 kW, 3.00 TR
- Rated cap. R507, Range B
- 4.20 kW, 1.20 TR
- Rated cap. R507, Range N
- 7.00 kW, 2.00 TR
- Rated cap.R1234yf, Range N [kW
- 5.00 kW
- Rated cap.R1234yf, Range N [TR
- 1.50 TR
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss
Danfoss orifice assembly no. 01 for TE 5 thermostatic expansion valve, rated 11 kW R134A (Range N)
067B2789
Danfoss
Danfoss orifice assembly no. 06 for TE 12 thermostatic expansion valve, rated 63 kW / 18 TR R404A (Range N)
067B2709
Danfoss

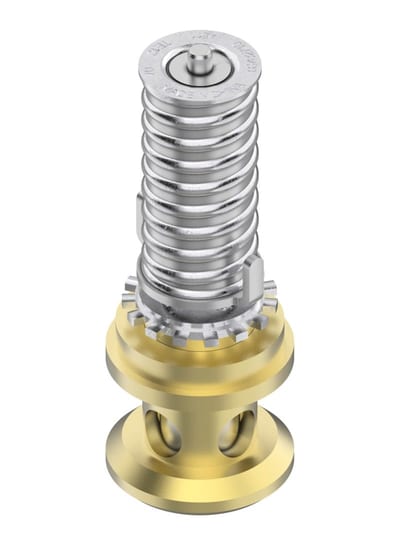

Danfoss orifice assembly no. 07 for TE 12 thermostatic expansion valve, rated 81 kW / 23 TR R404A (Range N)
