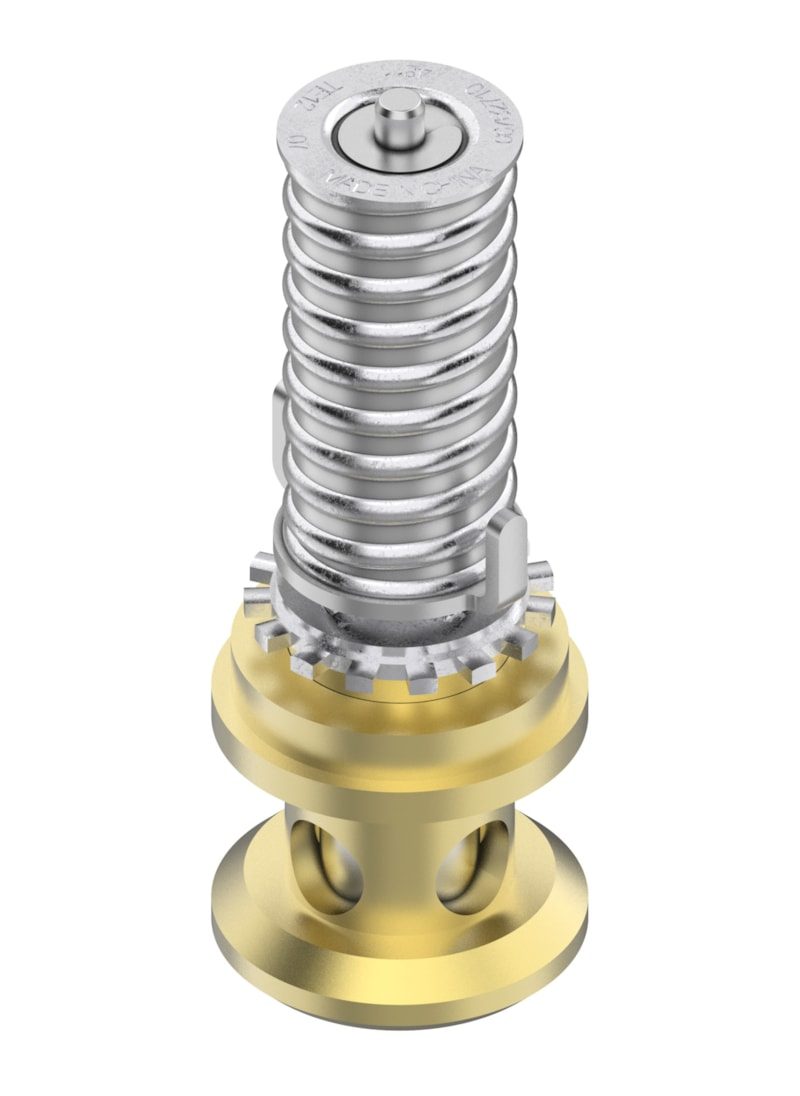

Danfoss orifice assembly no. 07 for TE 12 thermostatic expansion valve, rated 81 kW / 23 TR R404A (Range N)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable orifice assembly (ORF) no. 07 for the TE 12 thermostatic expansion valve. rated 81 kW / 23 TR R404A (Range N). Compatible refrigerants: R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A. Fits the TE 12 valve body of the TE parts program.
Technical Specifications
- Type
- Orifice assembly (ORF, thermostatic expansion valve)
- Used for
- TE 12
- Orifice no.
- 07
- Refrigerants
- R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A
- Rated capacity R404A/R507A
- Range N 81 kW / 23 TR
- Rated capacity R134a
- Range N 63 kW / 18 TR
- Rating basis
- te 4.4 °C, tc 38 °C, tliq 37 °C (ARI)
- Net weight
- 0.13 kg / Gross: 0.164 kg
- EAN
- 5702428320924
- Code number
- 067B2710
- Product group
- Expansion valves
- Orifice size
- 07
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Rated cap. cond. Range N [IMP]
- tcond=100 °F; tevap=40 °F; tliq=98 °F
- Rated cap. R134a, Range N
- 63.00 kW, 18.00 TR
- Rated cap. R22, Range B
- 48.50 kW, 13.80 TR
- Rated cap. R22, Range N
- 95.00 kW, 27.00 TR
- Rated cap. R404A, Range B
- 34.00 kW, 9.72 TR
- Rated cap. R404A, Range N
- 81.00 kW, 23.00 TR
- Rated cap. R407A, Range N
- 95.00 kW, 27.00 TR
- Rated cap. R407C, Range N
- 91.00 kW, 26.00 TR
- Rated cap. R407F, Range N
- 113.00 kW, 32.00 TR
- Rated cap. R454C, Range N
- 75.27 kW, 21.49 TR
- Rated cap. R507, Range B
- 34.00 kW, 9.72 TR
- Rated cap. R507, Range N
- 81.00 kW, 23.00 TR
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss
Danfoss power element for TE 12 thermostatic expansion valve, R404A/R507A, externally equalized, MOP 28 bar (400 psig), evaporating -40 to +10 °C
067B3346
Danfoss
Danfoss power element for TE 12 thermostatic expansion valve, R134A, externally equalized, MOP 28 bar (400 psig), evaporating -40 to +10 °C
067B3232
Danfoss
Danfoss power element for TE 12 thermostatic expansion valve, R407C, externally equalized, MOP 95 (at 15 °C), evaporating -40 to +10 °C
067B3367
Danfoss
Danfoss valve body for TE 5 thermostatic expansion valve, 12 mm × 22 mm solder ODF, angleway, brass
067B4005
Danfoss

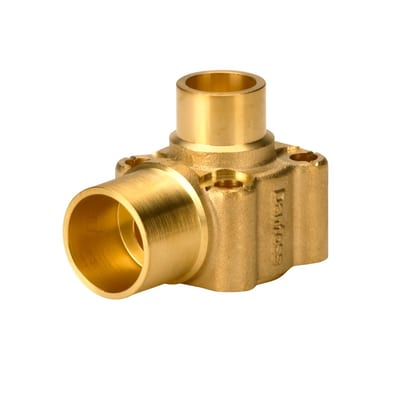

Danfoss valve body for TE 5 thermostatic expansion valve, 1/2 in (12.7 mm) × 5/8 in (15.9 mm) solder ODF, straightway, brass
