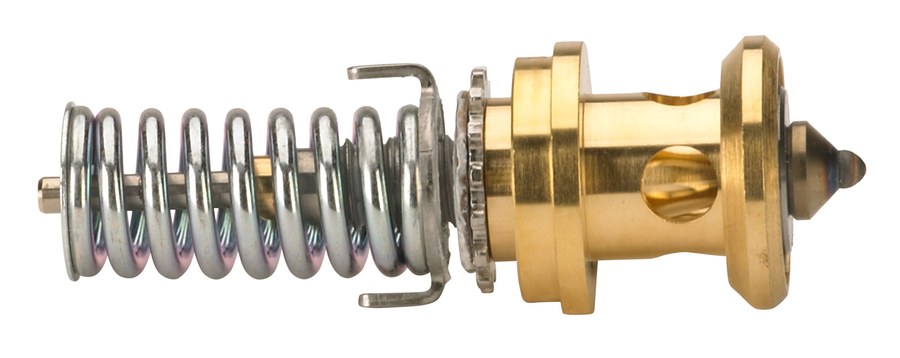

Danfoss orifice assembly no. 06 for TE 12 thermostatic expansion valve, rated 63 kW / 18 TR R404A (Range N)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable orifice assembly (ORF) no. 06 for the TE 12 thermostatic expansion valve. rated 63 kW / 18 TR R404A (Range N). Compatible refrigerants: R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A. Fits the TE 12 valve body of the TE parts program.
Technical Specifications
- Type
- Orifice assembly (ORF, thermostatic expansion valve)
- Used for
- TE 12
- Orifice no.
- 06
- Refrigerants
- R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A
- Rated capacity R404A/R507A
- Range N 63 kW / 18 TR, Range B 27.9 kW / 7.97 TR
- Rated capacity R134a
- Range N 49 kW / 14 TR
- Rating basis
- te 4.4 °C, tc 38 °C, tliq 37 °C (ARI)
- Net weight
- 0.13 kg / Gross: 0.164 kg
- EAN
- 5702428320917
- Code number
- 067B2709
- Product group
- Expansion valves
- Orifice size
- 06
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Rated cap. cond. Range N [IMP]
- tcond=100 °F; tevap=40 °F; tliq=98 °F
- Rated cap. R134a, Range N
- 49.00 kW, 14.00 TR
- Rated cap. R22, Range B
- 38.00 kW, 10.80 TR
- Rated cap. R22, Range N
- 74.00 kW, 21.00 TR
- Rated cap. R404A, Range B
- 27.90 kW, 7.97 TR
- Rated cap. R404A, Range N
- 63.00 kW, 18.00 TR
- Rated cap. R407A, Range N
- 74.00 kW, 21.00 TR
- Rated cap. R407C, Range N
- 74.00 kW, 21.00 TR
- Rated cap. R407F, Range N
- 95.00 kW, 27.00 TR
- Rated cap. R454C, Range N
- 59.06 kW, 16.85 TR
- Rated cap. R507, Range B
- 27.90 kW, 7.97 TR
- Rated cap. R507, Range N
- 63.00 kW, 18.00 TR
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
