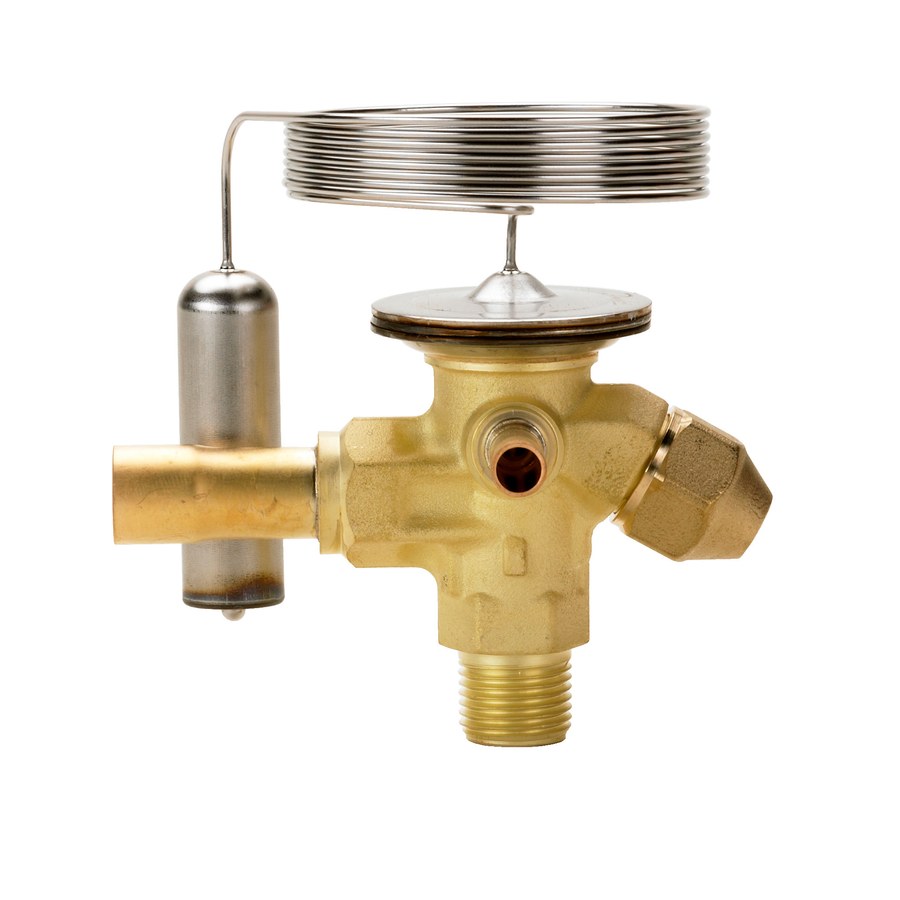

Danfoss TE 2 thermostatic expansion valve, R22/R407C, 3/8 in flare × 1/2 in solder, externally equalized, evaporating -60 to -25 °C (code 068Z3320)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TE 2 thermostatic expansion valve for R22/R407C. Externally equalized (1/4 in solder equalizer connection) with adjustable 4 °C static superheat, 3/8 in flare inlet and 1/2 in solder outlet, evaporating range -60 to -25 °C, MOP 20 (20 psig at -20 °C). Brass body. Replaceable orifice assembly (ordered separately). Max working pressure 34 bar (500 psig).
Specifications
- Part number
- 068Z3320
- HS code
- 8481.80
Compatibility
Refrigerant compatibility per Danfoss datasheet. Verify against your system specification.
Standards
Approvals
