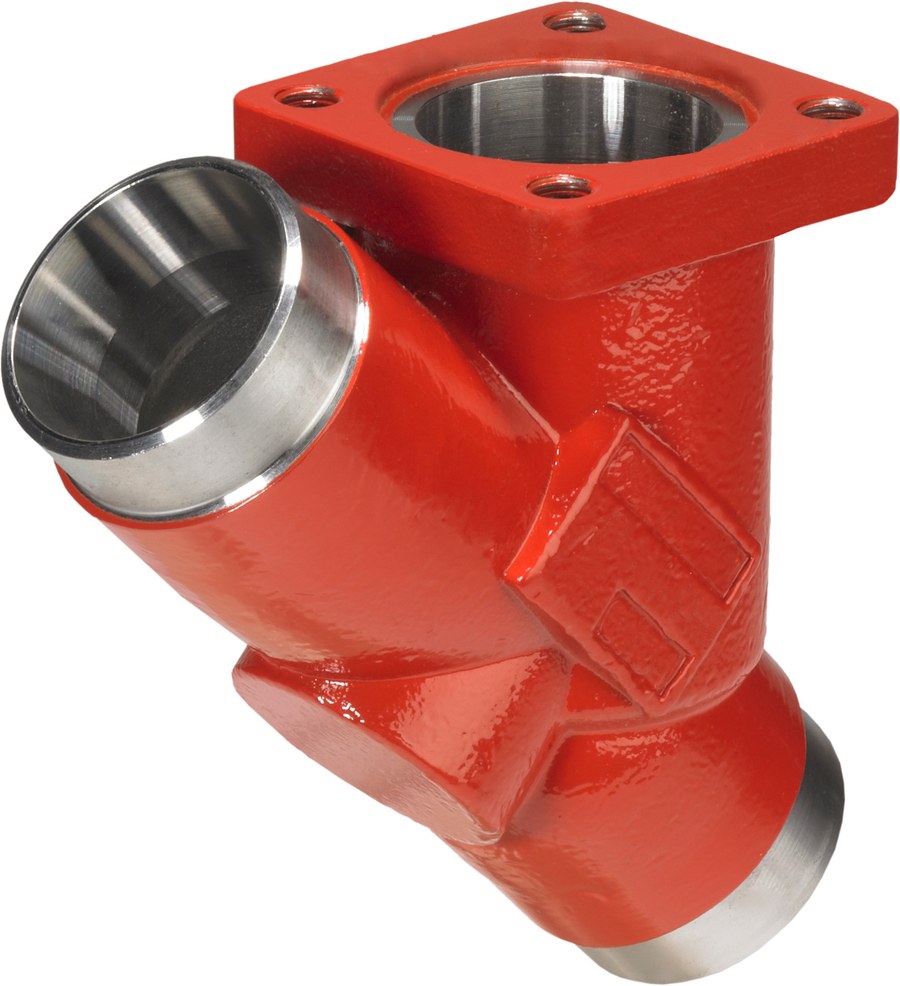

Danfoss SVL Flexline multifunction valve body, SVL 65 straightway socket weld, 65 mm (2 1/2 in), 52 bar, steel

Danfoss SVL 65 multifunction valve body for the SVL Flexline industrial-refrigeration range, code 148B5817. This is the bare valve housing (body only, without function module) in a low-temperature steel casting; it is welded permanently into the line and then converted to any SVL Flexline function — shut-off (SVA-S/SVA-L), regulating (REG-SA/REG-SB), check & stop (SCA-X) or check (CHV-X) — by fitting the corresponding function module (complete top part). Keeping a common body across functions lets a plant standardise on one welded housing and change the valve duty later without re-welding. This SKU is the straightway body with 65 mm (2 1/2 in) socket weld connections. Bi-flow body; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Steel construction suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Straightway bodies place the inlet and outlet in line; socket weld ends are prepared for socket-welding over the pipe end. Order the matching SVL function module separately for the required duty and nominal size.

Type

Multifunction valve body, SVL 65 (SVL Flexline)

Code number

148B5817

Series

SVL Flexline (multifunction valve body / housing)

Function

Bare valve body — accepts SVA-S/SVA-L, REG-SA/REG-SB, SCA-X or CHV-X function module

Nominal size

65 mm (2 1/2 in)

Flow direction body

Straightway

Connection

Socket weld

Body material

Steel

Flow

Bi-flow body

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

Fluid groups

1, 2

Conformity assessment

PED category II

Approvals

CE

Net weight

2.578 kg

EAN

5702428485029

Product group

Multifunction valves

Approval

CE

CE mark

Yes

China RoHS compliance

Yes

Connection Code

(2001:D29:65); (2005:G29:65)

Connection material

Steel

Connection standard

GOST 8734-75/8732-78

Direction

Straightway

EU RoHS compliance

Yes

Flow direction

Bi-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Inlet connection size [in]

2 1/2 in

Inlet connection size [mm]

65 mm

Inlet connection type

Butt weld

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Outlet connection size [in]

2 1/2 in

Outlet connection size [mm]

65 mm

Outlet connection type

Butt weld

PED category

II

REACH Candidate List substances

No

Refrigerants

R113

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Used for product

SVL 65

Size / Series

65 mm

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.90
