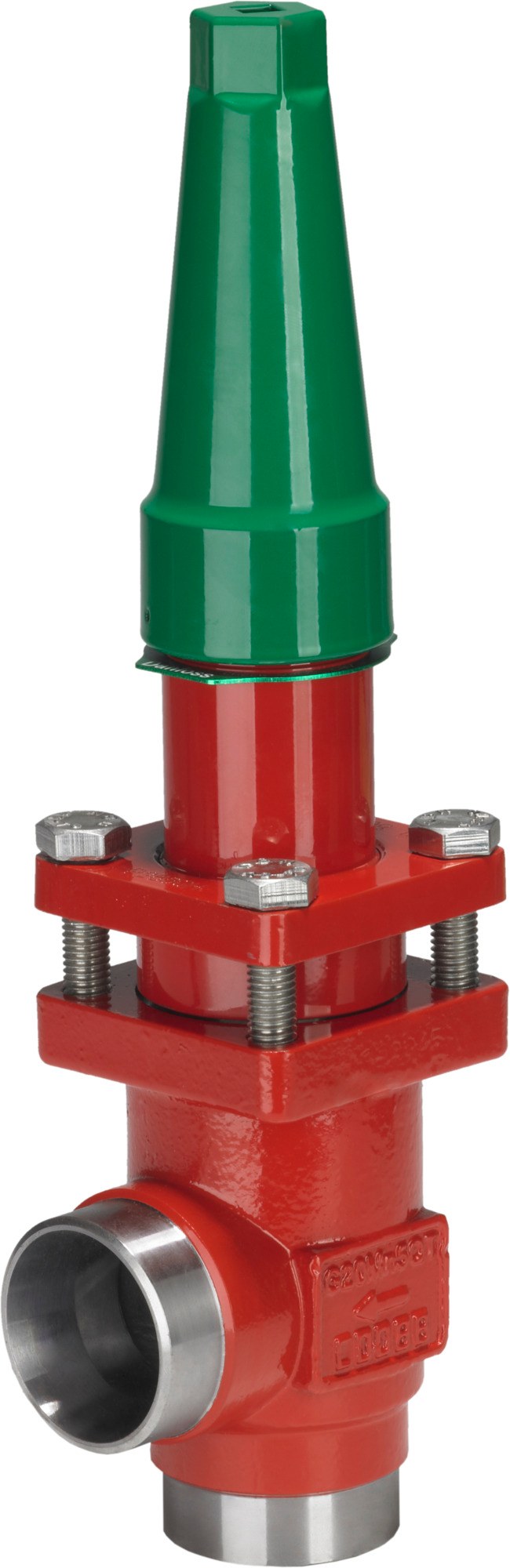

Danfoss SCA-X 50 angleway stop/check valve, 50 mm (2 in) butt weld EN 10220, 52 bar, steel (code 148B5702)
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss SCA-X 50 stop/check valve for the SVL Flexline industrial-refrigeration range, code 148B5702. The SCA-X combines a spring-loaded check (non-return) function with a hand-operated stop function: the guided cone permits flow in one direction only and closes against back-flow toward pumps, compressors and vessels, while the spindle under the vented cap allows the line to be shut off manually for service. This SKU is the angleway body in cold-resistant steel with 50 mm (2 in) butt-weld connections to EN 10220. Flow coefficient Kv 45 m3/h (Cv 53 gal/min); minimum opening differential pressure 0.04 bar (0.62 psi); flow direction marked by an embossed 1-way arrow. Internal backseating lets the spindle seal be replaced while the valve is under pressure. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Built on the SVL Flexline modular platform and serviceable with SVL Flexline spare parts.
Specifications
- Part number
- 148B5702
- HS code
- 8481.30
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 50 mm
Compatibility
Danfoss SVL Flexline SCA-X stop/check valve. Select by nominal size (50 mm / 2 in), flow body (angleway) and connection standard (EN 10220 butt weld). EN 10220 and ASME B 36.10M weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. The SCA-X adds a hand stop to the check function; where check-only is required, use the CHV-X of the same size. Mount with the embossed arrow in the direction of intended flow.
Approvals
