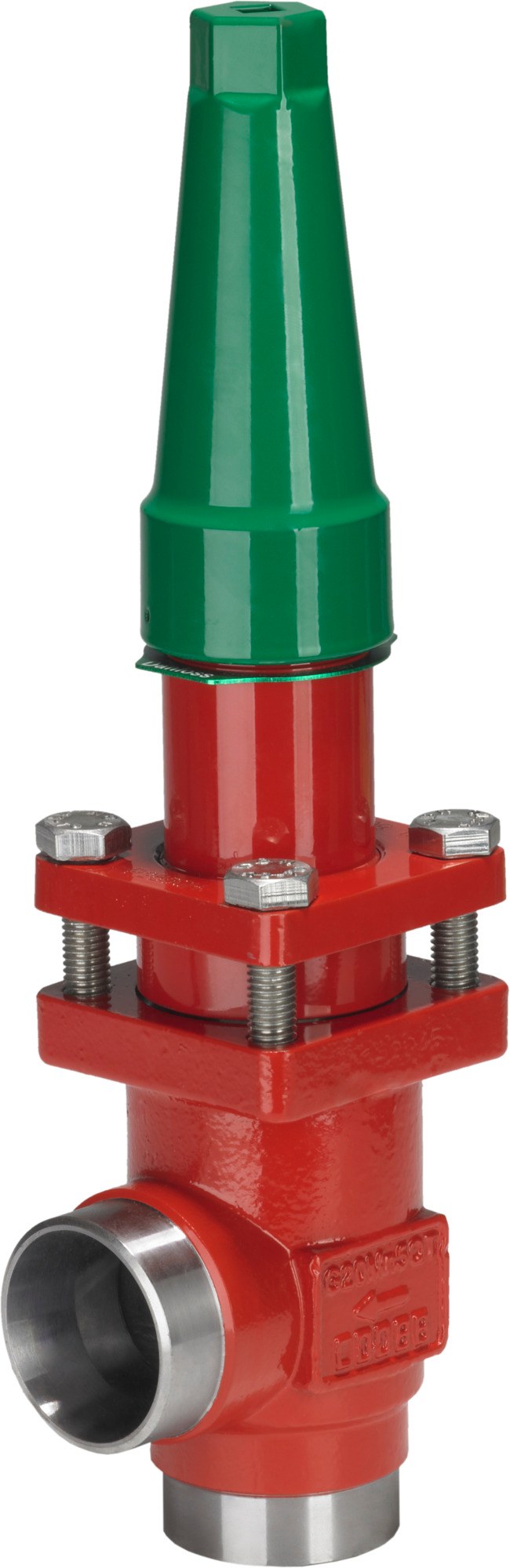

Danfoss SCA-X 65 angleway stop/check valve, 65 mm (2 1/2 in) butt weld ASME B 36.10M Schedule 40, 52 bar, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SCA-X 65 stop/check valve for the SVL Flexline industrial-refrigeration range, code 148B5802. The SCA-X combines a spring-loaded check (non-return) function with a hand-operated stop function: the guided cone permits flow in one direction only and closes against back-flow toward pumps, compressors and vessels, while the spindle under the vented cap allows the line to be shut off manually for service. This SKU is the angleway body in cold-resistant steel with 65 mm (2 1/2 in) butt-weld connections to ASME B 36.10M Schedule 40. Flow coefficient Kv 72 m3/h (Cv 85 gal/min); minimum opening differential pressure 0.04 bar (0.62 psi); flow direction marked by an embossed 1-way arrow. Internal backseating lets the spindle seal be replaced while the valve is under pressure. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Built on the SVL Flexline modular platform and serviceable with SVL Flexline spare parts.
Technical Specifications
- Type
- SCA-X 65 (SVL Flexline stop/check valve) Code number: 148B5802 Series: SCA-X (SVL Flexline) Function: Combined check (non-return) and hand-operated stop valve Nominal size: 65 mm (2 1/2 in) Flow direction: Angleway Connection: Butt weld (ASME B 36.10M Schedule 40) Housing material: Steel (cold-resistant) Kv value: 72 m3/h (Cv 85 gal/min) minimum opening differential pressure: 0.04 bar (0.62 psi) Flow direction indicator: Embossed 1-way arrow Maximum working pressure: 52 bar (754 psig) Media temperature range: -60 to 150 C (-76 to 302 F) Applicable media: HCFC, HFC, R717 (ammonia), R744 (CO2) Fluid groups: 1, 2 Approvals: CE, PED Category II Compliance: EU RoHS, China RoHS Net weight: 6.896 kg EAN: 5702428478748 Product group: Check valves Approval: CE CE mark: Yes China RoHS compliance: Yes Colour Paint: Reddish brown Connection Code: (2002:S40:65) Connection material: Steel Connection standard: ASME B 36.10M SCHEDULE 40 Cv value [gal/min]: 85 gal/min Direction: Angleway Equipment: Cap EU RoHS compliance: Yes Fluid Group: 1 Inlet connection size [in]: 2 1/2 in Inlet connection size [mm]: 65 mm Inlet connection type: Butt weld Kv value [m³/h]: 72 m³/h Max. Working Pressure [bar]: 52 bar Max. Working Pressure [psig]: 754 psig MinODP [bar]: 0.04 bar MinODP [psi]: 0.62 psi Outlet connection size [in]: 2 1/2 in Outlet connection size [mm]: 65 mm Outlet connection type: Butt weld PED category: II REACH Candidate List substances: No Refrigerants: R134a Temperature range [°C] [max]: 150 °C Temperature range [°C] [min]: -60 °C Temperature range [°F] [max]: 302 °F Temperature range [°F] [min]: -76 °F Valve version: Standard version
Standards & Compliance
- Size / Series
- 65 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SVL Flexline SCA-X stop/check valve. Select by nominal size (65 mm / 2 1/2 in), flow body (angleway) and connection standard (ASME B 36.10M Schedule 40 butt weld). EN 10220 and ASME B 36.10M weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. The SCA-X adds a hand stop to the check function; where check-only is required, use the CHV-X of the same size. Mount with the embossed arrow in the direction of intended flow.
Product Documentation
More from Danfoss
Danfoss
Danfoss SCA-X 65 angleway stop/check valve, 65 mm (2 1/2 in) butt weld EN 10220, 52 bar, steel
148B5803
Danfoss
Danfoss SCA-X 80 angleway stop/check valve, 80 mm (3 in) butt weld EN 10220, 52 bar, steel
148B5902
Danfoss
Danfoss SCA-X 80 angleway stop/check valve, 80 mm (3 in) butt weld ASME B 36.10M Schedule 40, 52 bar, steel
148B5903
Danfoss
Danfoss SCA-X 100 angleway stop/check valve, 100 mm (4 in) butt weld EN 10220, 52 bar, steel
148B6002
Danfoss
Danfoss SCA-X 125 angleway stop/check valve, 125 mm (5 in) butt weld EN 10220, 52 bar, steel
148B6102
Danfoss
Danfoss SCA-X 125 angleway stop/check valve, 125 mm (5 in) butt weld ASME B 36.10M Schedule 40, 52 bar, steel
148B6103
Danfoss
Danfoss SVL Flexline multifunction valve body, SVL 15 angleway socket weld, 15 mm (1/2 in), 52 bar, steel
148B5256
Danfoss
Danfoss SVL Flexline multifunction valve body, SVL 15 straightway socket weld, 15 mm (1/2 in), 52 bar, steel
148B5257
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 148B5802?
- 148B5802 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 148B5802.
- What is the HS code for 148B5802?
- The customs tariff (HS) code for 148B5802 is 8481.30.
- Who manufactures 148B5802?
- 148B5802 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 148B5802?
- Yes — the 148B5802 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 148B5802?
- The minimum order quantity is 1.
- Is 148B5802 available?
- Yes — 148B5802 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
