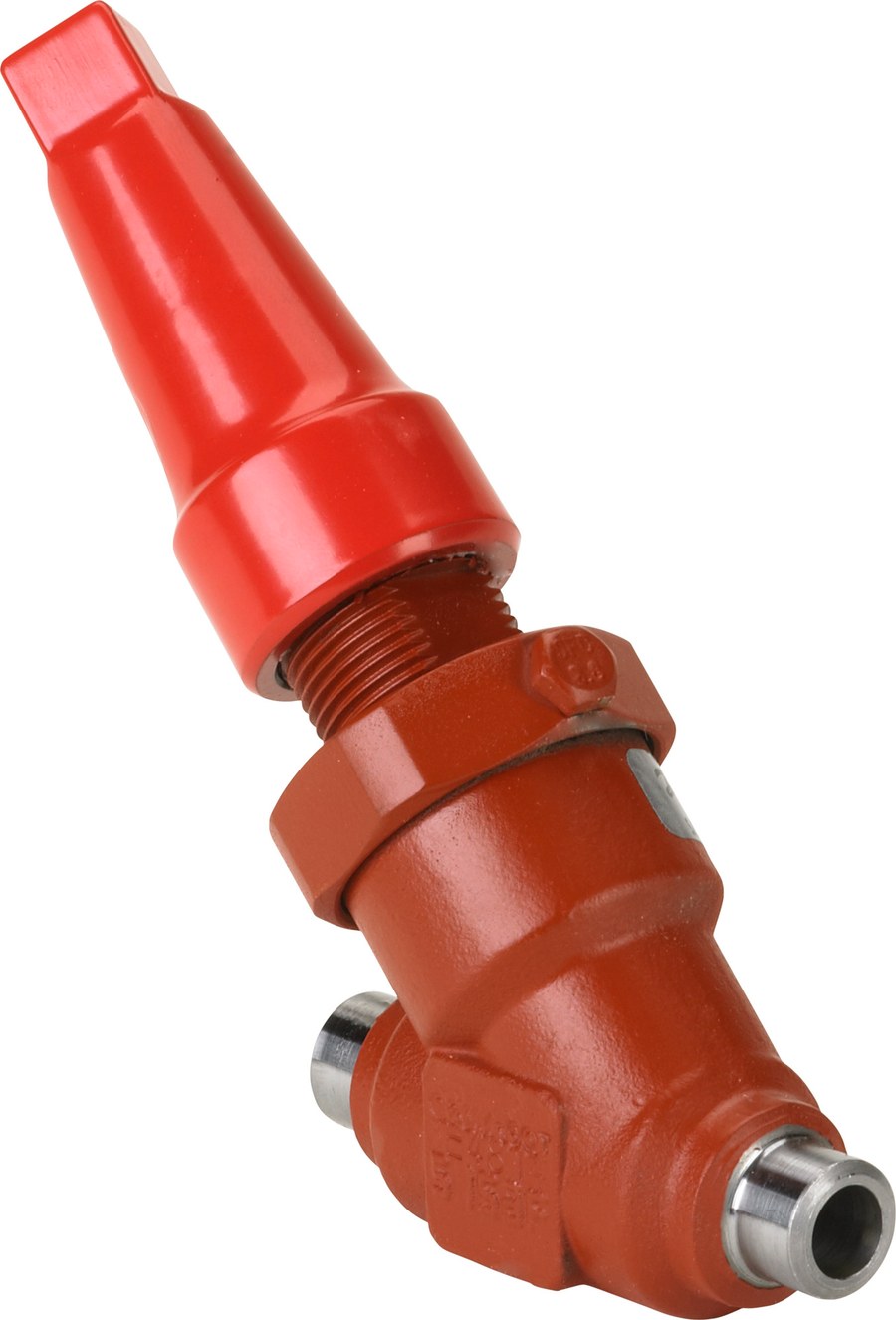

Danfoss SVA-S 6 shut-off (stop) valve, 6 mm (1/4 in) straightway with cap, butt weld, steel, 52 bar, Kv 2 M3/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 6 angleway/straightway shut-off (stop) valve for industrial refrigeration, code 148B5031. Steel body with butt weld connections, nominal size 6 mm (1/4 in), straightway flow, supplied with cap. The SVA-S is a manually operated bi-flow stop valve with a standard bonnet length; it has internal backseating that allows the spindle seal to be replaced while the valve remains under pressure, and a Teflon (PTFE) seat for tight shut-off. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 2 m3/h (Cv 2.32 gal/min). For R134a, R404A, R407C, R410A, R507A, R717 (ammonia), R744 (CO2) and other HCFC/HFC/HFO refrigerants. PED Article 4, paragraph 3. CE marked and EAC certified.
Technical Specifications
- Type
- Danfoss SVA-S 6 shut-off valve
- Code number
- 148B5031
- Series
- SVA-S (Standard bonnet length, Flexline)
- Direction
- Straightway
- Operation/equipment
- Cap
- Connection type
- Butt weld
- Nominal size
- 6 mm (1/4 in)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 2 m3/h (Cv 2.32 gal/min)
- Flow
- bi-flow (embossed flow-direction arrow)
- Weight
- net 0.475 kg
- PED
- Article 4, paragraph 3
- Approvals
- CE, EAC
- EAN
- 5702428471558
- Net weight
- 0.475 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- EAC
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Colour Paint
- Reddish brown
- Connection material
- Steel
- Connection standard
- ASME B 36.10M SCHEDULE 80
- Cv value [gal/min]
- 2.32 gal/min
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1/4 in
- Inlet connection size [mm]
- 6 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 2 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Outlet connection size [in]
- 1/4 in
- Outlet connection size [mm]
- 6 mm
- Outlet connection type
- Butt weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Size / Series
- 6 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVA-S 6 is a manual stop valve for industrial refrigeration lines. Confirm nominal size (6 mm / 1/4 in), connection standard (butt weld), flow direction (straightway) and operation (cap vs hand wheel) before ordering. SVA-S uses a standard bonnet length; SVA-L is the long-bonnet, insulation-friendly variant. Function module and valve housing are available separately as service parts.
