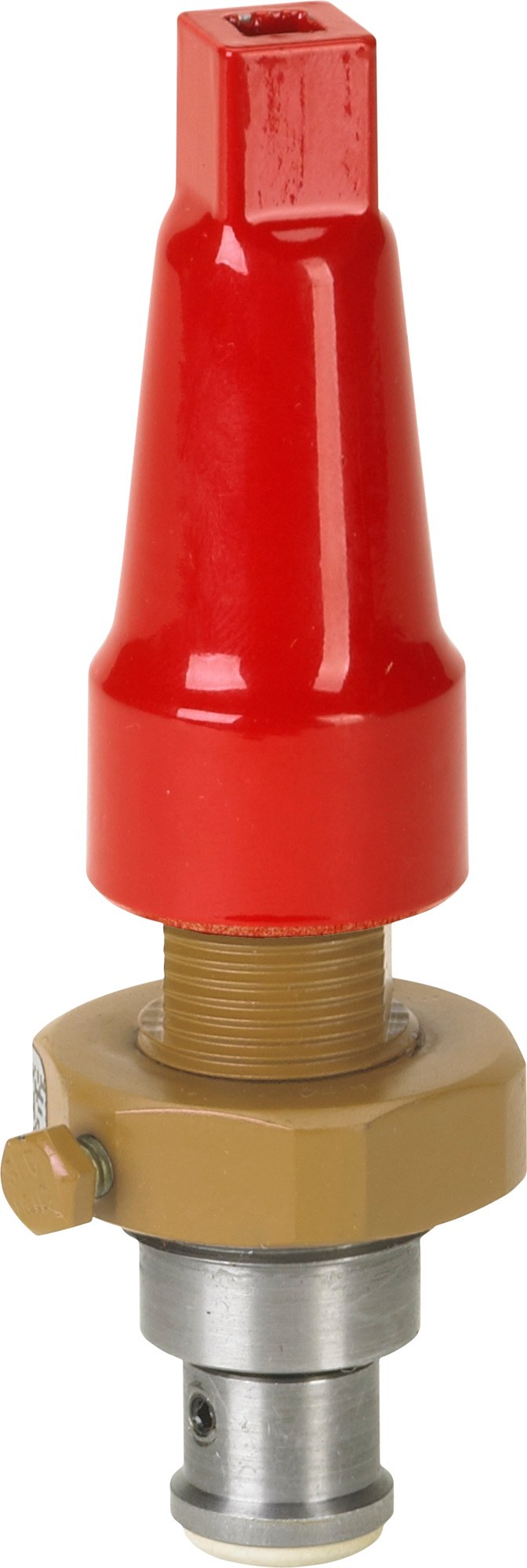

Danfoss SVA-S 6-10 function module (SVL Flexline top complete, cap, standard neck), 65 bar (code 148B6695)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 6-10 function module for the SVL Flexline industrial-refrigeration range, code 148B6695. The function module is the complete valve top part (spindle, seat, bonnet and cap) that converts an SVL multifunction valve body into a working SVA-S shut-off (stop) valve of the same nominal size, without re-welding the housing. This SKU is the standard-neck version fitted with a cap (no handwheel). Maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F); for use with the SVA-S 6-10 valve body. Steel/refrigeration-grade construction; suits HCFC, HFC, R717 (ammonia) and R744 (CO2) systems. Order the matching SVL valve body separately if not already installed.
Specifications
- Part number
- 148B6695
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to 150 C
Compatibility
Danfoss SVL Flexline function module (complete top part). Fits the SVA-S 6-10 SVL multifunction valve body of the matching nominal size. Cap version has no handwheel; a handwheel version is a separate code. The function module sets the valve duty (here: shut-off) on a common welded body.
Approvals
