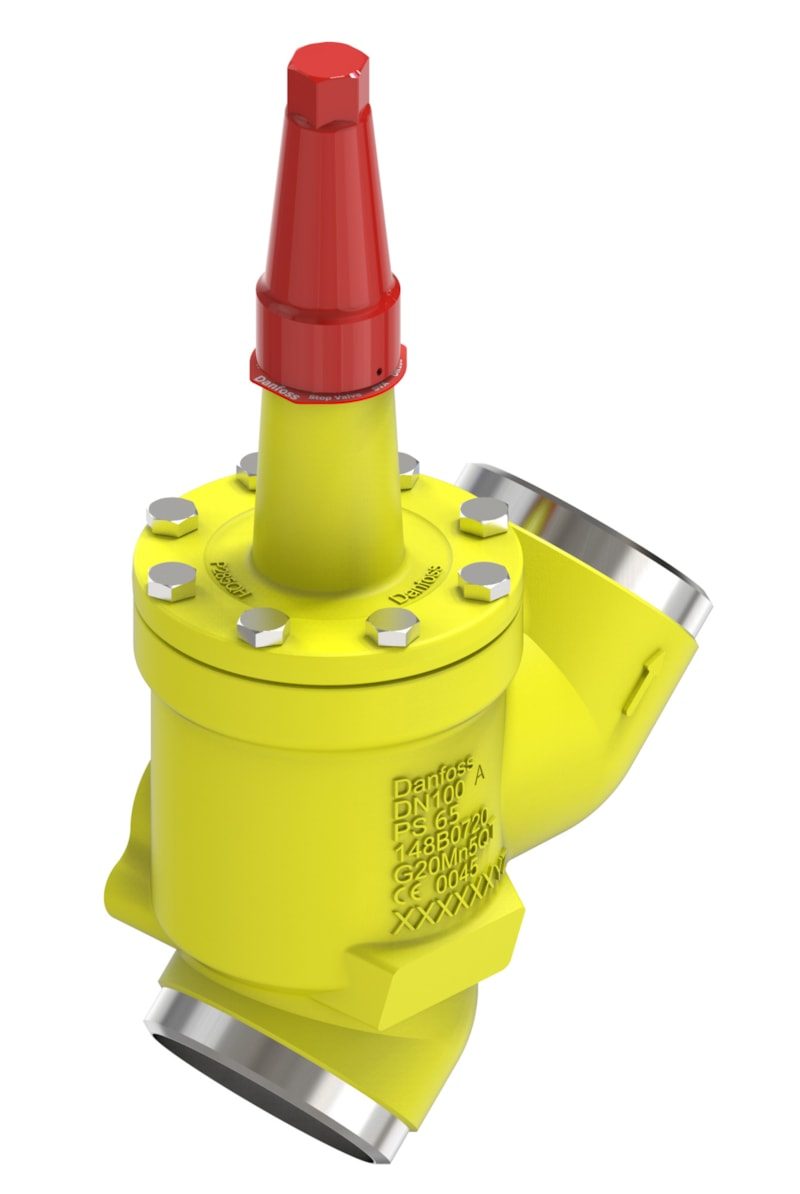

Danfoss SVA-S 100 shut-off (stop) valve, straightway, 100 mm (4 in), butt weld to ASME B 36.10M Schedule 40, steel, 65 bar, Kv 278 M3/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 100 straightway shut-off (stop) valve for industrial refrigeration, code 148B5063. Steel body with butt weld to ASME B 36.10M Schedule 40 connections, nominal size 100 mm (4 in). The SVA-S is a manually operated bi-flow stop valve with a spindle cap; it has internal backseating that allows the spindle seal to be replaced while the valve remains under pressure, and a PTFE seat for tight shut-off. Maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 278 m3/h. For R134a, R404A, R407C, R410A, R507A, R717 (ammonia), R744 (CO2) and other HCFC/HFC/HFO refrigerants. PED category II. CE marked and EAC certified.
Technical Specifications
- Type
- Danfoss SVA-S 100 shut-off (stop) valve
- Code number
- 148B5063
- Series
- SVA-S (standard bonnet length, Flexline)
- Connection type
- butt weld
- Connection standard
- ASME B 36.10M Schedule 40
- Nominal size
- 100 mm (4 in)
- Flow
- straightway
- Operation
- spindle cap
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 278 m3/h
- Weight
- net 17.3 kg, gross 25.275 kg
- PED
- PED category II
- Approvals
- CE, EAC
- EAN
- 5702424056957
- Net weight
- 17.3 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Yellow
- Connection Code
- (2002:S40:100)
- Connection material
- Steel
- Cv value [gal/min]
- 322.48 gal/min
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 4 in
- Inlet connection size [mm]
- 100 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 278 m³/h
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Neck
- Standard
- Outlet connection size [in]
- 4 in
- Outlet connection size [mm]
- 100 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 40
- Size / Series
- 100 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVA-S 100 is a manual stop valve for industrial refrigeration lines. Confirm nominal size (100 mm (4 in)), connection (butt weld to ASME B 36.10M Schedule 40), flow direction (straightway) and operation (cap vs hand wheel) before ordering. SVA-S uses a standard bonnet length; SVA-L is the long-bonnet, insulation-friendly variant. Function module and valve housing are available separately as service parts.
