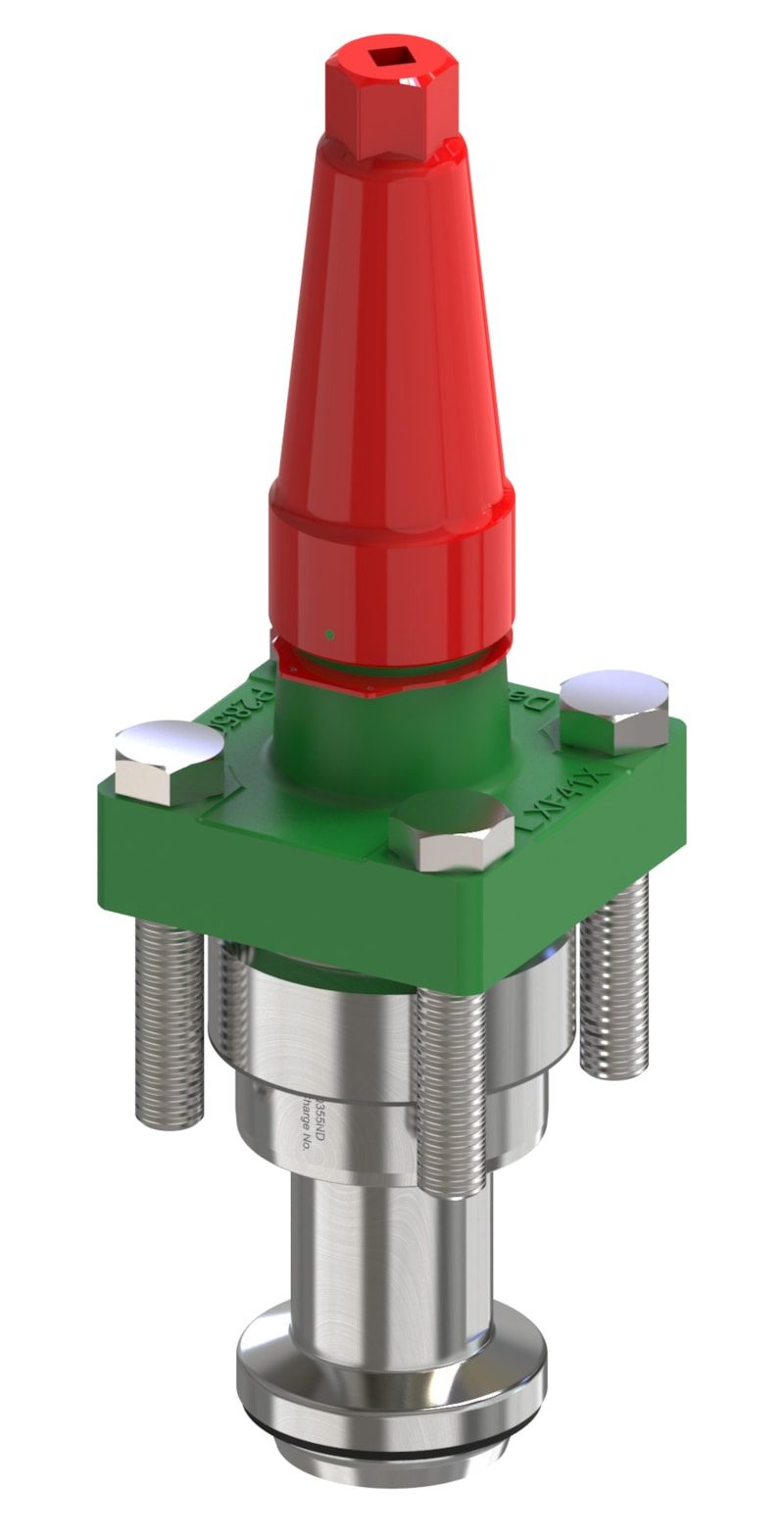

Danfoss SVA-140B 50-65 function module (complete top part, cap) for 140 bar CO2 shut-off valve, SVL Flexline (code 148B6927)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-140B 50-65 function module, code 148B6927 — the complete top part with cap that converts an SVL-140B 50-65 valve body into a manual shut-off (stop) valve for 140 bar (2030 psig) industrial R744 (CO2) service. Features a balanced piston design for smooth, low-torque opening at high differential pressure and internal metal back-seating. The top part exchanges on an installed body without welding, so a strainer body can be re-tasked as a shut-off valve (and back) simply by swapping the module. Used for products SVL-140B 50; SVL-140B 65. Supplied with 1 gasket. Cap-type spindle prepared for seal-wire against unauthorised operation.
Specifications
- Part number
- 148B6927
- HS code
- 8481.90
- Material
- Low-temperature steel
- Pressure rating
- 140 bar
- Temperature range
- -40 to 150 C
Compatibility
Danfoss SVA-140B shut-off function module (spare top part) for the 140 bar CO2 SVL Flexline. Fits the SVL-140B 50-65 valve body (SVL-140B 50; SVL-140B 65); the module exchanges on an installed body without welding. Order the matching SVL-140B body separately if not already installed. The FIA-140B strainer module fits the same body for filter duty. Not interchangeable with the 52/65 bar SVL family.
Approvals
