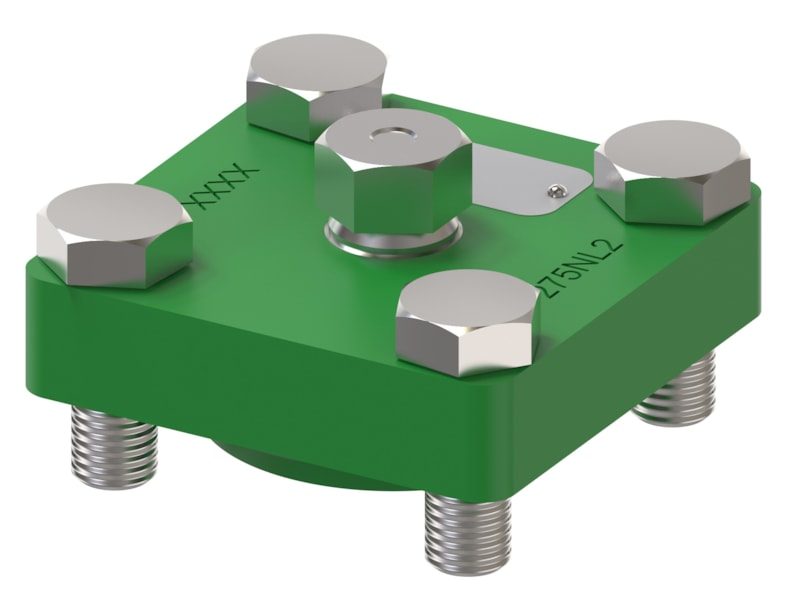

Danfoss FIA-140B 50-65 function module (Top Complete strainer insert) for 140 bar CO2 strainer, SVL Flexline (code 148B6932)
Danfoss · HVAC & Refrigeration · Valve Spare Parts
Danfoss FIA-140B 50-65 function module (Top Complete), code 148B6932 — the complete top part with stainless-steel filter net that converts an SVL-140B 50-65 valve body into an inline strainer for 140 bar (2030 psig) industrial R744 (CO2) service. The filter net is mounted directly without extra gaskets for easy servicing. Plain and pleated stainless-steel inserts (150 to 500 micron) are available; sizes 80-100 (3-4 in) can take a magnetic insert. The top part exchanges on an installed body without welding, so a strainer can be re-tasked as a shut-off valve (SVA-140B) and back by swapping the module. Used for products SVL-140B 50; SVL-140B 65. Supplied with 1 gasket.
Specifications
- Part number
- 148B6932
- HS code
- 8421.99
- Material
- Low-temperature steel
- Pressure rating
- 140 bar
- Temperature range
- -40 to 150 C
Compatibility
Danfoss FIA-140B strainer function module (spare top part) for the 140 bar CO2 SVL Flexline. Fits the SVL-140B 50-65 valve body (SVL-140B 50; SVL-140B 65); the module exchanges on an installed body without welding. Order stainless-steel plain, pleated or (sizes 80-100) magnetic inserts separately. The SVA-140B shut-off module fits the same body for stop-valve duty. Not interchangeable with the 52/65 bar SVL family.
Approvals
