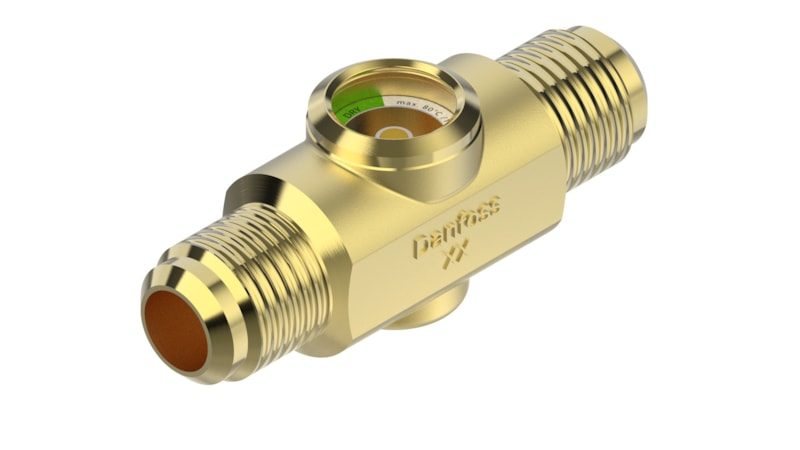

Danfoss SGP 19 N moisture-indicating sight glass, flare 3/4 in (19 mm), code
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SGP 19 N refrigerant sight glass with N-type moisture indicator, 3/4 in (19 mm) flare (SAE) connections on both ends, code 014L0166. Brass body and brass flare connections. The fused-glass window shows the liquid-line refrigerant flow (bubbles = undercharge / non-condensables) while the colour-change N indicator reads system moisture content (green = dry, yellow = wet). Max working pressure 52 bar (754 psig), media temperature -50 to 80 C (-58 to 175 F). For HFC / HFO / CO2 (R744) and hydrocarbon-blend liquid lines. EAN 5702428818872.
Technical Specifications
- Type designation
- SGP 19 N
- Product line
- SGP moisture-indicating sight glass
- Connection type
- Flare (SAE), both ends
- Connection size
- 3/4 in (19 mm)
- Moisture indicator
- N-type (colour-change, green=dry / yellow=wet)
- Max working pressure
- 52 bar (754 psig)
- Media temperature range
- -50 to 80 C (-58 to 175 F)
- Body material
- Brass
- Connection material
- Brass
- Compatible refrigerants
- R1233zd(E), R1234yf, R1234ze(E), R134a, R22, R32, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R450A, R452A, R452B, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R744
- Approvals
- C UL US LISTED, EAC
- EU RoHS compliance
- Yes with exemptions (6(c))
- China RoHS compliance
- Yes with exemptions
- Packing format
- Multi pack (36 pc)
- Net weight
- 0.504 kg
- Gross weight
- 0.524 kg
- EAN
- 5702428818872
- MPN
- 014L0166
- Type
- SGP 19 N
- Product group
- Sight glasses
- Approval
- C UL US LISTED
- Approval file name
- REF. LIQUID INDICATOR 76H4
- Connection Code
- (3011:X:19)
- EU RoHS exemption clause
- 6(c)
- Green
- max moist con@25 °C: R134a: 30 ppm
- Inlet connection type
- Flare
- Inlet Internal/External
- External
- Inlet size [in]
- 3/4 in
- Inlet size [mm]
- 19 mm
- Lubricants compatibility
- Oilfree applications
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Oil free refrigerants
- R1234ze(E)
- Outlet connection type
- Flare
- Outlet Internal/External
- External
- Outlet size [in]
- 3/4 in
- Outlet size [mm]
- 19 mm
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1233zd(E)
- Temperature range [°C] [max]
- 80 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 175 °F
- Temperature range [°F] [min]
- -58 °F
- UL approval file name
- REF. LIQUID INDICATOR 76H4
- UL approved refrigerants
- R1233zd(E)
- UL mark
- Yes
- Yellow
- min moist con@25 °C: R134a: 100 ppm
Standards & Compliance
- Standard
- SAE flare
- Size / Series
- 3/4 in (19 mm)
- Material
- Brass
- Thread Standard
- SAE flare
- Pressure Rating
- 52 bar (754 psig)
- Temperature Range
- -50 to 80 C
- Classification / Approval
- C UL US LISTED, EAC
- HS Code
- 8418.69
Compatibility & Fitment
Liquid-line moisture-indicating sight glass with flare connections. Select by line size and connection type (flare vs solder ODF). N indicator suits HFC / HFO / CO2 and common hydrocarbon-blend refrigerants; verify the moisture end-point against the specific refrigerant/oil. Not a shut-off device.
Product Documentation
More from Danfoss
Danfoss
Danfoss SGP 6S N moisture-indicating sight glass, solder ODF x ODM 1/4 in (6 mm), code
014L0201
Danfoss
Danfoss SGP 10S N moisture-indicating sight glass, solder ODF x ODM 3/8 in (10 mm), code
014L0202
Danfoss
Danfoss SGP 12S N moisture-indicating sight glass, solder ODF x ODM 1/2 in (12 mm), code
014L0203
Danfoss
Danfoss SGP 16S N moisture-indicating sight glass, solder ODF x ODM 5/8 in (16 mm), code
014L0204
Danfoss
Danfoss SGP 22S N moisture-indicating sight glass, solder ODF x ODM 7/8 in (22 mm), code
014L0206
Danfoss

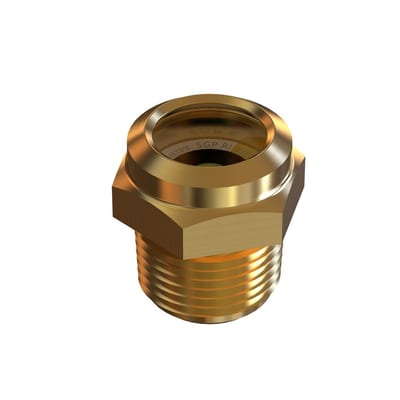

Danfoss SGP 1/2 RN threaded sight-glass socket, G 1/2 in, code
014L0180
Danfoss
Danfoss SGP 1/2 RI threaded sight-glass socket, NPT 1/2 in, code
014L0131
Danfoss

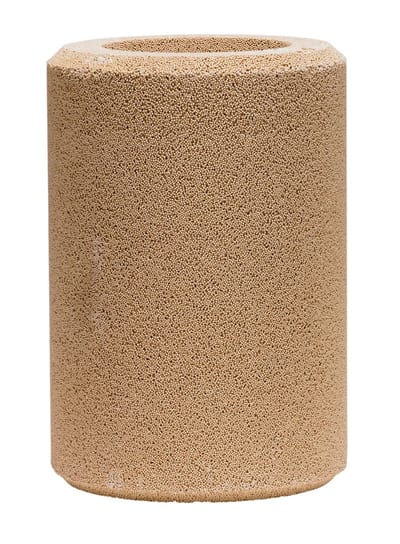

Danfoss ELIMINATOR DCR filter drier core, 48-Dc, 48 cu.in. 80% molecular sieve + 20% activated alumina (moisture and acid), code
