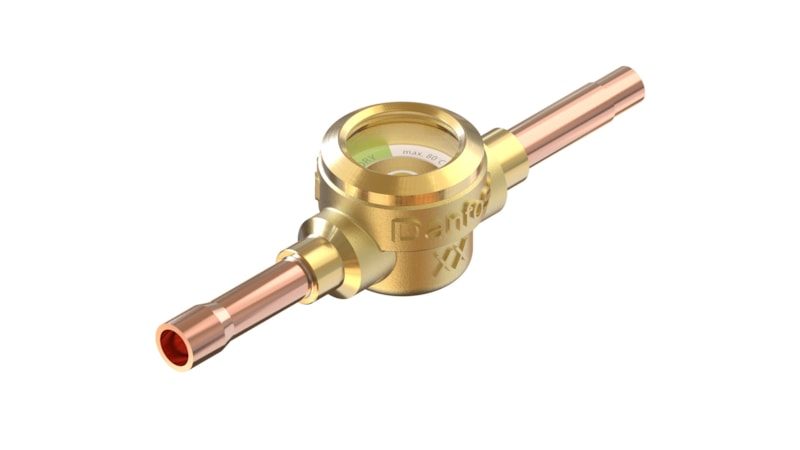

Danfoss SGP 6S N moisture-indicating sight glass, solder ODF x ODM 1/4 in (6 mm), code
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SGP 6s N refrigerant sight glass with N-type moisture indicator, 1/4 in (6 mm) solder connections — ODF (female) inlet and ODM (male) outlet, code 014L0201. Brass body with copper connections; the reducing male/female pairing lets it splice directly into a run of same-size copper line without a coupling. Fused-glass window shows liquid-line flow while the colour-change N indicator reads system moisture (green = dry, yellow = wet). Max working pressure 52 bar (754 psig), media temperature -50 to 80 C (-58 to 175 F). For HFC / HFO / CO2 (R744) and hydrocarbon-blend liquid lines. EAN 5702428838764.
Technical Specifications
- Type designation
- SGP 6s N
- Product line
- SGP moisture-indicating sight glass
- Connection type
- Solder ODF (inlet) x Solder ODM (outlet)
- Connection size
- 1/4 in (6 mm)
- Moisture indicator
- N-type (colour-change, green=dry / yellow=wet)
- Max working pressure
- 52 bar (754 psig)
- Media temperature range
- -50 to 80 C (-58 to 175 F)
- Body material
- Brass
- Connection material
- Copper
- Compatible refrigerants
- R1233zd(E), R1234yf, R1234ze(E), R1270, R134a, R22, R32, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R450A, R452A, R452B, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R744
- Approvals
- C UL US LISTED, EAC
- EU RoHS compliance
- Yes with exemptions (6(c))
- China RoHS compliance
- Yes with exemptions
- Packing format
- Multi pack (25 pc)
- Net weight
- 0.089 kg
- Gross weight
- 0.104 kg
- Alternate (identical) code
- 014L1201
- EAN
- 5702428838764
- MPN
- 014L0201
- Type
- SGP 6s N
- Product group
- Sight glasses
- Approval
- C UL US LISTED
- Approval file name
- REF. LIQUID INDICATOR 76H4
- Connection Code
- (3002:X:6; 3004:X:6)
- EU RoHS exemption clause
- 6(c)
- Green
- max moist con@25 °C: R1234ze(E): 26 ppm
- Ignition source assessment
- Yes
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 1/4 in
- Lubricants compatibility
- Oilfree applications
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Oil free refrigerants
- R1234ze(E)
- Outlet connection type
- Solder, ODM
- Outlet size [in]
- 1/4 in
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1233zd(E)
- Temperature range [°C] [max]
- 80 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 175 °F
- Temperature range [°F] [min]
- -58 °F
- UL approval file name
- REF. LIQUID INDICATOR 76H4
- UL approved refrigerants
- R1233zd(E)
- UL mark
- Yes
- Yellow
- min moist con@25 °C: R1234ze(E): 132 ppm
Standards & Compliance
- Standard
- EN 1254 solder
- Size / Series
- 1/4 in (6 mm)
- Material
- Brass
- Pressure Rating
- 52 bar (754 psig)
- Temperature Range
- -50 to 80 C
- Classification / Approval
- C UL US LISTED, EAC
- HS Code
- 8418.69
Compatibility & Fitment
Liquid-line moisture-indicating sight glass with reducing ODF x ODM solder ends (splices into a same-size copper line without a coupling). Select by line size and connection type. N indicator suits HFC / HFO / CO2 and common hydrocarbon-blend refrigerants; verify moisture end-point against the specific refrigerant/oil. Not a shut-off device.
