Danfoss SGP 1/2 RI threaded sight-glass socket, NPT 1/2 in, code
Pricing
Request a quote
We reply within 24 hours
Product Description

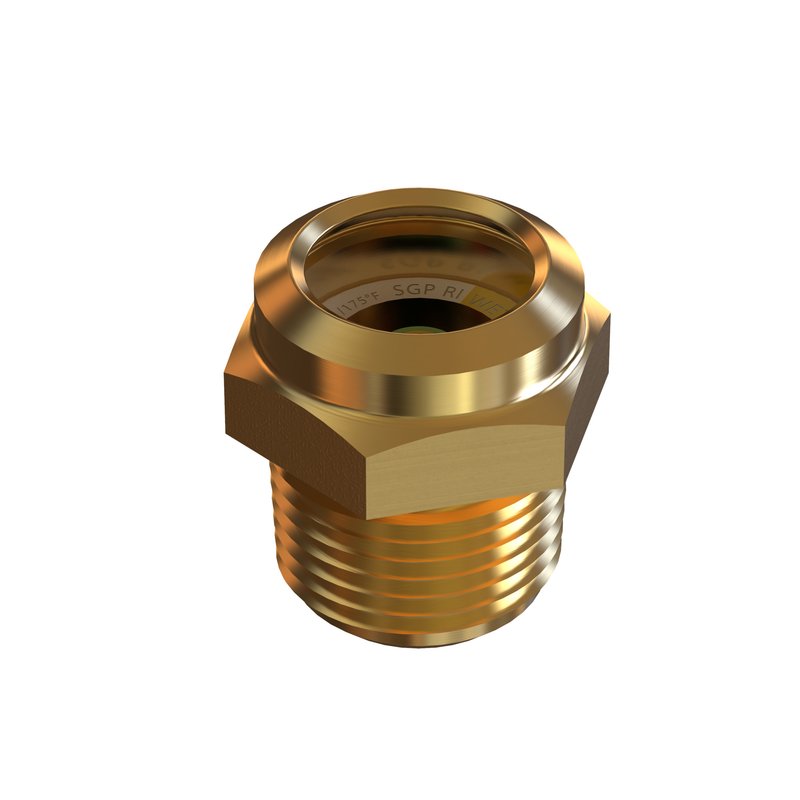

Danfoss SGP 1/2 RI threaded moisture-indicating sight-glass socket, NPT 1/2 in (NPT) male thread, code 014L0131. Brass hex body with a fused-glass window and I-type colour-change moisture indicator; screws directly into a matching threaded port to give a liquid-line flow and moisture view without a solder joint. Max working pressure 52 bar (754 psig), media temperature -50 to 80 C (-58 to 175 F). EAN 5702428840163.
Technical Specifications
- Type designation
- SGP 1/2 RI
- Product line
- SGP threaded sight-glass socket
- Connection
- NPT 1/2 in male thread (NPT)
- Moisture indicator
- I-type (colour-change, green=dry / yellow=wet)
- Max working pressure
- 52 bar (754 psig)
- Media temperature range
- -50 to 80 C (-58 to 175 F)
- Body material
- Brass
- Connection material
- Brass
- Approvals
- C UL US LISTED, EAC
- EU RoHS compliance
- Yes with exemptions (6(c))
- China RoHS compliance
- Yes with exemptions
- Packing format
- Multi pack (19 pc)
- Net weight
- 0.074 kg
- Gross weight
- 0.076 kg
- EAN
- 5702428840163
- MPN
- 014L0131
- Type
- SGP 1/2 RI
- Product group
- Sight glasses
- Approval
- C UL US LISTED
- Approval file name
- REF. LIQUID INDICATOR 76H4
- Connection size
- 1/2 in
- Connection size [in]
- 1/2 in
- Connection standard
- ANSI/ASME B1.20.1
- Connection type
- NPT
- EU RoHS exemption clause
- 6(c)
- Floating ball [pc]
- 3 pc
- Green
- max moist con@25 °C: R22: 150 ppm
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R22
- Temperature range [°C] [max]
- 80 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 175 °F
- Temperature range [°F] [min]
- -58 °F
- UL approval file name
- REF. LIQUID INDICATOR 76H4
- UL approved refrigerants
- R22
- UL mark
- Yes
- Yellow
- min moist con@25 °C: R22: 300 ppm
Standards & Compliance
- Standard
- NPT
- Size / Series
- NPT 1/2 in
- Material
- Brass
- Thread Standard
- NPT
- Pressure Rating
- 52 bar (754 psig)
- Temperature Range
- -50 to 80 C
- Classification / Approval
- C UL US LISTED, EAC
- HS Code
- 8418.69
Compatibility & Fitment
Threaded moisture-indicating sight glass — screws into a matching NPT NPT 1/2 in port instead of solder/flare. Select the thread standard (G / ISO 228-1 vs NPT) to match the receiving fitting. Not a shut-off device.
Product Documentation
More from Danfoss
Danfoss
Danfoss ELIMINATOR DCR filter drier core, 48-Dc, 48 cu.in. 80% molecular sieve + 20% activated alumina (moisture and acid), code
023U4380
Danfoss

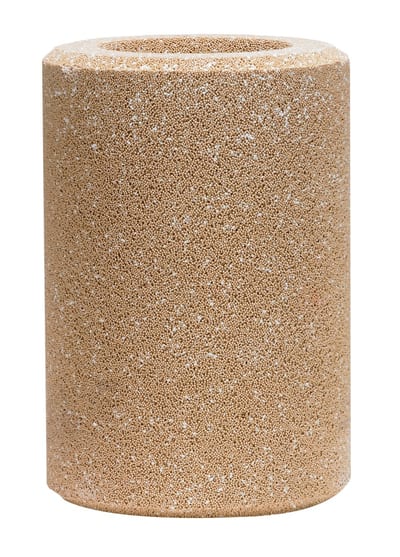

Danfoss ELIMINATOR DCRE filter drier core, 48-Dc, 48 cu.in. 80% molecular sieve + 20% activated alumina (moisture and acid), code
023U4388
Danfoss

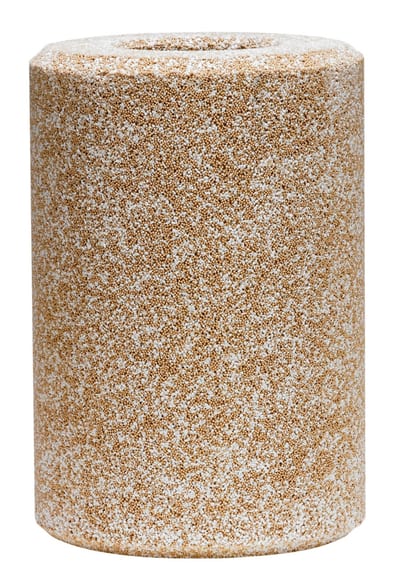

Danfoss ELIMINATOR DCR filter drier core, 48-Da, 48 cu.in. 30% molecular sieve + 70% activated alumina (acid and post burn-out clean-up), code
023U5381
Danfoss

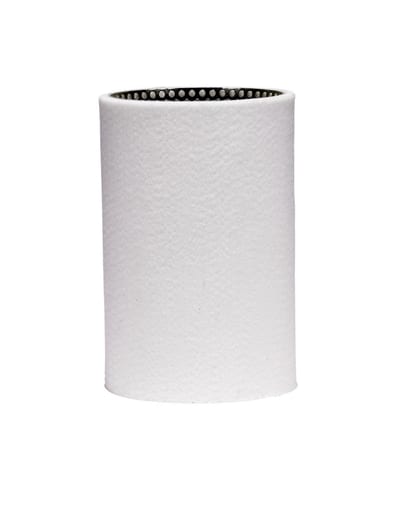

Danfoss ELIMINATOR DCR filter drier core, 48-F, 48 cu.in. 15 micron strainer (mechanical straining (15 micron)), code
023U1921
Danfoss

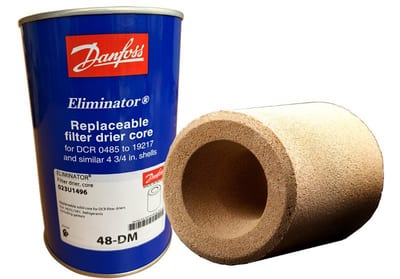

Danfoss ELIMINATOR DCR filter drier core, 100-Dm, 100 cu.in. 100% molecular sieve (moisture), code
023U7562
Danfoss

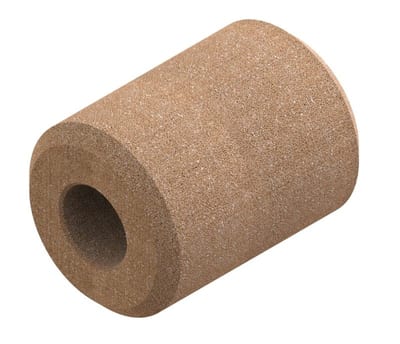

Danfoss ELIMINATOR DCR filter drier core, 100-Dc, 100 cu.in. 80% molecular sieve + 20% activated alumina (moisture and acid), code
023U7563
Danfoss

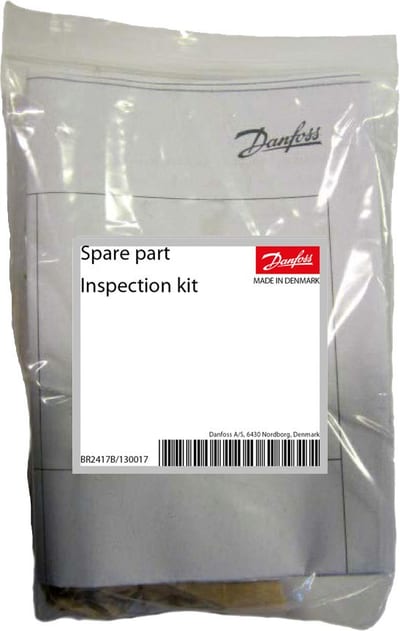

Danfoss PM inspection / service kit for PMFL / PMFH / PM sizes 5, 8, 10, 15, 20, 25 main valves
027F3075
Danfoss

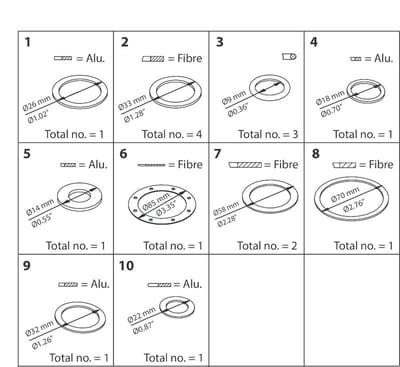

Danfoss PM inspection / service kit for PMFL / PMFH / PM size 32 main valves
