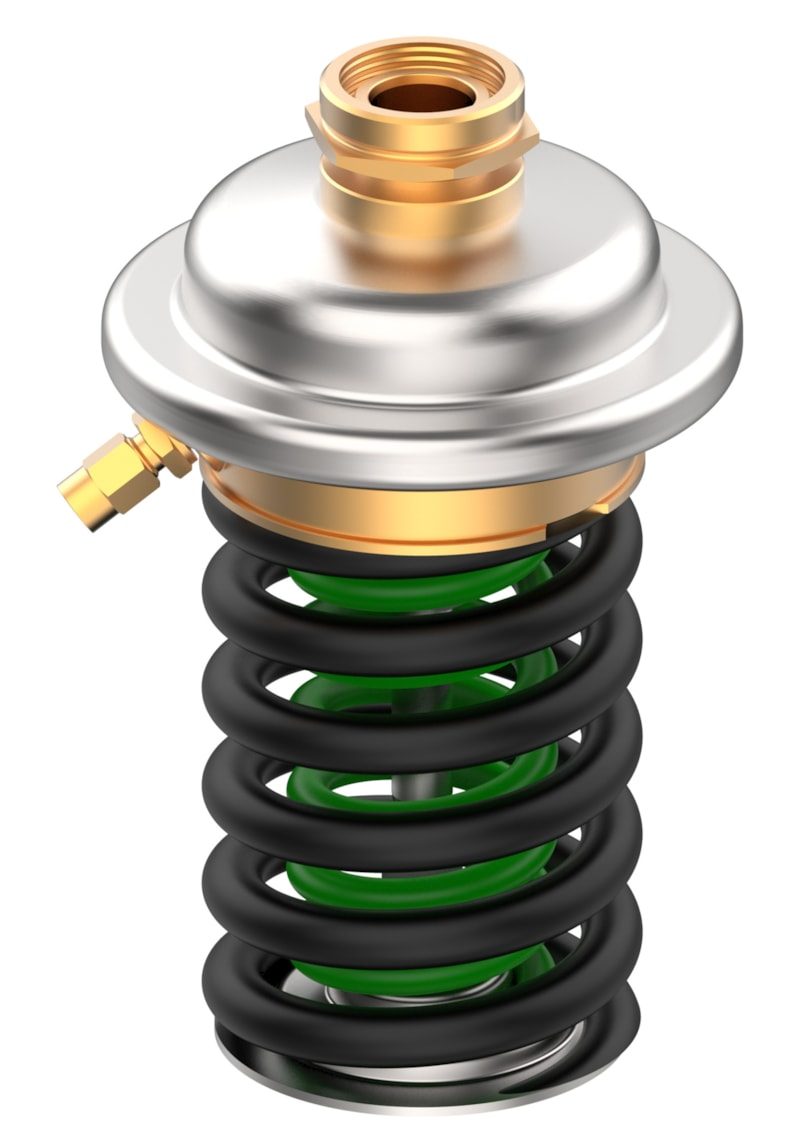

Danfoss Lower actuator adjustment part, PN 25, for SAVA, SAVD, 3 – 11 bar setting range, self-acting-controller spare

Danfoss lower actuator adjustment part (003H6848) — genuine PN 25 spare assembly for the Danfoss self-acting controller range. It is the diaphragm actuator / setting-spring "top works" that mounts on the controller valve body: the actuator senses the controlled differential pressure through the Ø6 mm copper impulse tubes and modulates the valve cone, and the adjustment part carries the setting spring that fixes the working range. Fits Danfoss SAVA, SAVD controllers, bypass / return / flow (per controller configuration). Adjustable setting range 3 – 11 bar. OEM designation "Low.Act.Adj.part PN25 3-11 SAVA-D". Net weight 4.623 kg. OEM P/N 003H6848. EAN 5702421553039. Technical data quoted verbatim from store.danfoss.com (code 003H6848).

Code number

003H6848

Type

Actuators and adjustment parts

Item

Lower actuator adjustment part

Product group

Accessories — SAC (self-acting controllers)

Function

Diaphragm actuator / setting-spring assembly for self-acting controllers (top works)

For product type

SAVA, SAVD

Mounting version

Bypass / return / flow (per controller configuration)

Pressure class

PN 25

Pressure setting range

3 – 11 bar

Differential-pressure setting range

3 – 11 bar

Impulse-tube connection

Ø6 mm copper (compression fittings)

OEM description

Low.Act.Adj.part PN25 3-11 SAVA-D

Volume

7.9 L

Net weight

4.623 kg

Gross weight

4.623 kg

EAN

5702421553039

HS code

8481.90

Description

Low.Act.Adj.part PN25 3-11 SAVA-D

Differential pressure setting [bar] [Max]

11 bar

Differential pressure setting [bar] [Min]

3 bar

Pressure setting range [bar] [Max]

11 bar

Pressure setting range [bar] [Min]

3 bar

Pressure Rating

PN 25

HS Code

8481.90
