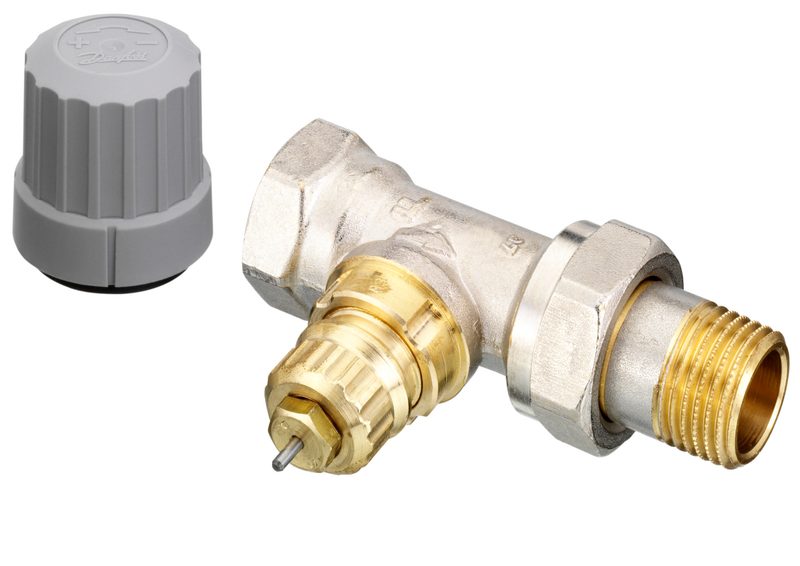

Danfoss RTR-FN DN 15 straight thermostatic radiator valve — fixed-capacity valve (no presetting), dimension standard F

Danfoss RTR-FN — fixed-capacity valve (no presetting), OEM order code 013G7004. The RTR-FN is a fixed-capacity thermostatic radiator valve body for two-pipe systems without presetting — the flow is fixed by the valve's own Kv characteristic rather than an adjustable presetting device. It accepts an RA/RTR-series thermostatic sensor or actuator on the valve clamp connection. (RTR-FN DN 15, straight, dimension standard F.) Nominal size DN 15, straight pattern, connection Rp 1/2 (inlet) / R 1/2 (outlet) (internal thread), Kvs 0.9 m³/h, max. working pressure 10 bar, test pressure 16 bar, max. differential pressure 0.6 bar, flow temperature up to 120 °C. Finish Nickel plated. Application: 2-pipe system. Net weight 0.252 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G7004). OEM P/N 013G7004, EAN 5702425126048. HS 8481.80.

Brand

Danfoss

Part number

013G7004

Type

RTR-FN

Product group

Radiator Valves

Description

Normal flow valves without presetting

Valve type

Fixed capacity

Design

Straight

Dimension standard

F

Nominal size

DN 15

Connection size (inlet)

Rp 1/2

Connection size (outlet)

R 1/2

Connection types

Internal thread

Tailpiece type

Standard

Presetting

no

Kvs value

0.9 m³/h

Kv measuring range

0.22 - 0.7 m³/h

Application

2-pipe system

Flow temperature (max)

120 °C

Working pressure (max)

10 bar

Test pressure

16 bar

Differential pressure (max)

0.6 bar

Finish

Nickel plated

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.252 Kilogram

Gross weight

0.262 Kilogram

EAN

5702425126048

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass, Nickel plated

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
