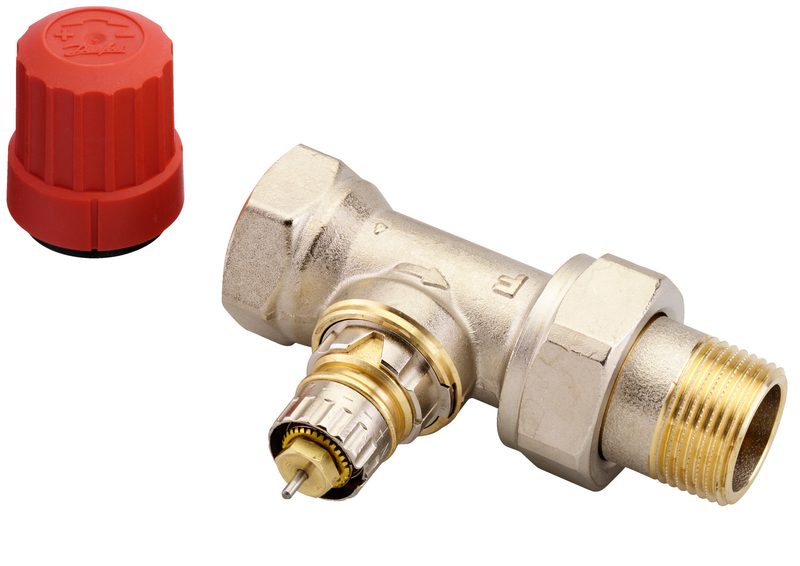

Danfoss RTR-N DN 20 straight thermostatic radiator valve — normal-flow valve with presetting, dimension standard F

Danfoss RTR-N — normal-flow valve with presetting, OEM order code 013G7016. The RTR-N (normal flow) valve body accepts an RA/RTR-series thermostatic sensor or actuator on its clamp connection; the integral presetting device limits the design flow per radiator so a two-pipe system self-balances without a separate balancing valve. Presetting is stepped and read under the head. (RTR-N DN 20, straight, dimension standard F.) Nominal size DN 20, straight pattern, connection Rp 3/4 (inlet) / R 3/4 (outlet) (internal thread), Kvs 1.4 m³/h, Kv presetting range 0.10 - 1.0 m³/h, max. working pressure 10 bar, test pressure 16 bar, max. differential pressure 0.6 bar, flow temperature up to 120 °C. Finish Nickel plated. Application: 2-pipe system. Net weight 0.37 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G7016). OEM P/N 013G7016, EAN 5702425126116. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Brand

Danfoss

Part number

013G7016

Type

RTR-N

Product group

Radiator Valves

Description

Normal flow valves with presetting

Valve type

Normal flow

Design

Straight

Dimension standard

F

Nominal size

DN 20

Connection size (inlet)

Rp 3/4

Connection size (outlet)

R 3/4

Connection types

Internal thread

Tailpiece type

Standard

Presetting

yes

Kvs value

1.4 m³/h

Kv measuring range

0.10 - 1.0 m³/h

Application

2-pipe system

Flow temperature (max)

120 °C

Working pressure (max)

10 bar

Test pressure

16 bar

Differential pressure (max)

0.6 bar

Finish

Nickel plated

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.37 Kilogram

Gross weight

0.404 Kilogram

EAN

5702425126116

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass, Nickel plated

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
