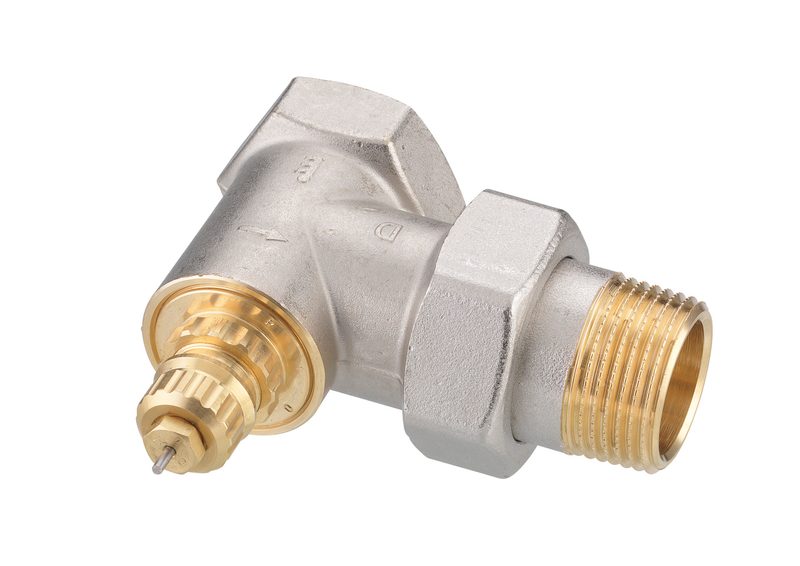

Danfoss RTR-G DN 25 angle thermostatic radiator valve — high-flow valve for one-pipe systems (no presetting), dimension standard D

Danfoss RTR-G — high-flow valve for one-pipe systems (no presetting), OEM order code 013G7027. The RTR-G is a high-capacity thermostatic radiator valve body for one-pipe (single-pipe) heating systems, where a share of the circuit flow is diverted through the radiator. It carries an RA/RTR-series thermostatic sensor or actuator on the valve clamp connection; the high Kvs (5.5 m³/h) suits the larger flow of one-pipe risers. No presetting. (RTR-G DN 25, angle, dimension standard D.) Nominal size DN 25, angle pattern, connection Rp 1 (inlet) / R 1 (outlet) (internal thread), Kvs 5.5 m³/h, max. working pressure 16 bar, test pressure 25 bar, max. differential pressure 0.16 bar, flow temperature up to 120 °C. Finish Nickel plated. Application: 1-pipe system. Net weight 0.591 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G7027). OEM P/N 013G7027, EAN 5702425126253. HS 8481.80.

Brand

Danfoss

Part number

013G7027

Type

RTR-G

Product group

Radiator Valves

Description

High capacity valve for 1-pipe systems

Valve type

High flow

Design

Angle

Dimension standard

D

Nominal size

DN 25

Connection size (inlet)

Rp 1

Connection size (outlet)

R 1

Connection types

Internal thread

Tailpiece type

Standard

Presetting

no

Kvs value

5.5 m³/h

Kv measuring range

0.59 - 2.41 m³/h

Application

1-pipe system

Flow temperature (max)

120 °C

Working pressure (max)

16 bar

Test pressure

25 bar

Differential pressure (max)

0.16 bar

Finish

Nickel plated

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.591 Kilogram

Gross weight

0.619 Kilogram

EAN

5702425126253

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass, Nickel plated

Pressure Rating

16 bar max working (test 25 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
