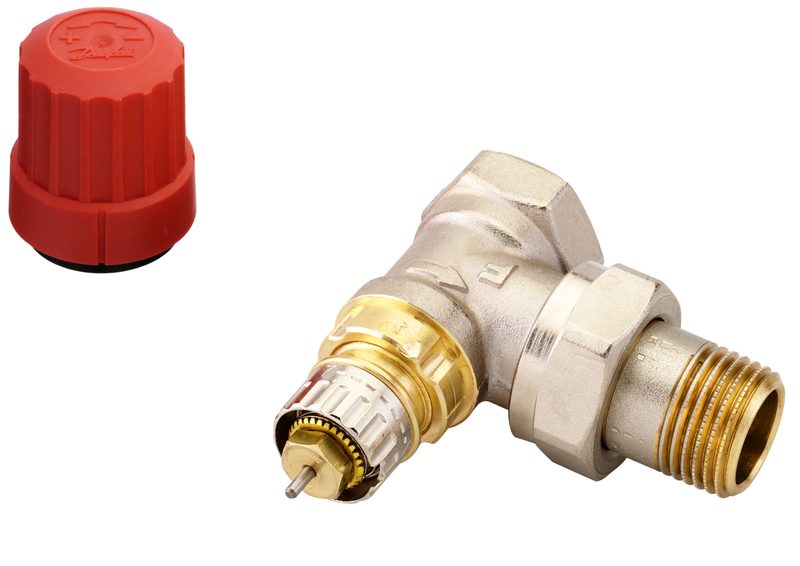

Danfoss RTR-N DN 15 angle thermostatic radiator valve — normal-flow valve with presetting, dimension standard F
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RTR-N — normal-flow valve with presetting, OEM order code 013G7013. The RTR-N (normal flow) valve body accepts an RA/RTR-series thermostatic sensor or actuator on its clamp connection; the integral presetting device limits the design flow per radiator so a two-pipe system self-balances without a separate balancing valve. Presetting is stepped and read under the head. (RTR-N DN 15, angle, dimension standard F.) Nominal size DN 15, angle pattern, connection Rp 1/2 (inlet) / R 1/2 (outlet) (internal thread), Kvs 0.9 m³/h, Kv presetting range 0.04 - 0.7 m³/h, max. working pressure 10 bar, test pressure 16 bar, max. differential pressure 0.6 bar, flow temperature up to 120 °C. Finish Nickel plated. Application: 2-pipe system. Net weight 0.228 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G7013). OEM P/N 013G7013, EAN 5702425126086. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Brand
- Danfoss
- Part number
- 013G7013
- Type
- RTR-N
- Product group
- Radiator Valves
- Description
- Normal flow valves with presetting
- Valve type
- Normal flow
- Design
- Angle
- Dimension standard
- F
- Nominal size
- DN 15
- Connection size (inlet)
- Rp 1/2
- Connection size (outlet)
- R 1/2
- Connection types
- Internal thread
- Tailpiece type
- Standard
- Presetting
- yes
- Kvs value
- 0.9 m³/h
- Kv measuring range
- 0.04 - 0.7 m³/h
- Application
- 2-pipe system
- Flow temperature (max)
- 120 °C
- Working pressure (max)
- 10 bar
- Test pressure
- 16 bar
- Differential pressure (max)
- 0.6 bar
- Finish
- Nickel plated
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.228 Kilogram
- Gross weight
- 0.228 Kilogram
- EAN
- 5702425126086
- HS code
- 8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)
Standards & Compliance
- Material
- Body brass, Nickel plated
- Pressure Rating
- 10 bar max working (test 16 bar)
- Temperature Range
- up to 120 °C (flow)
- HS Code
- 8481.80
Compatibility & Fitment
Two-pipe thermostatic radiator valve body for DN 15 angle connection (Rp 1/2 / R 1/2). Accepts a Danfoss RA/RTR-series thermostatic sensor (RA 2000 / RTR head) or thermal/electric actuator on the valve clamp ring. Set the presetting to the design flow of the radiator. Confirm type (RTR-N), design (Angle), nominal size (DN 15) and dimension standard (F) against the installation before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss RTR-N DN 15 straight thermostatic radiator valve — normal-flow valve with presetting, dimension standard F
013G7014
Danfoss
Danfoss RTR-N DN 20 angle thermostatic radiator valve — normal-flow valve with presetting, dimension standard F
013G7015
Danfoss
Danfoss RTR-N DN 20 straight thermostatic radiator valve — normal-flow valve with presetting, dimension standard F
013G7016
Danfoss
Danfoss RTR-N DN 25 angle thermostatic radiator valve — normal-flow valve with presetting, dimension standard D
013G7017
Danfoss
Danfoss RTR-N DN 15 double angle right thermostatic radiator valve — normal-flow valve with presetting
013G7021
Danfoss
Danfoss RTR-N DN 15 double angle left thermostatic radiator valve — normal-flow valve with presetting
013G7022
Danfoss

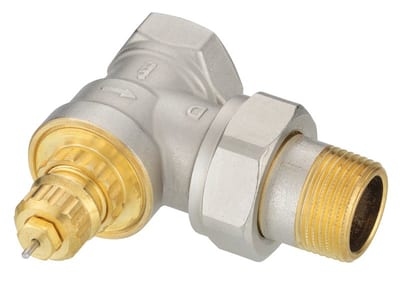

Danfoss RTR-G DN 15 angle thermostatic radiator valve — high-flow valve for one-pipe systems (no presetting), dimension standard D
