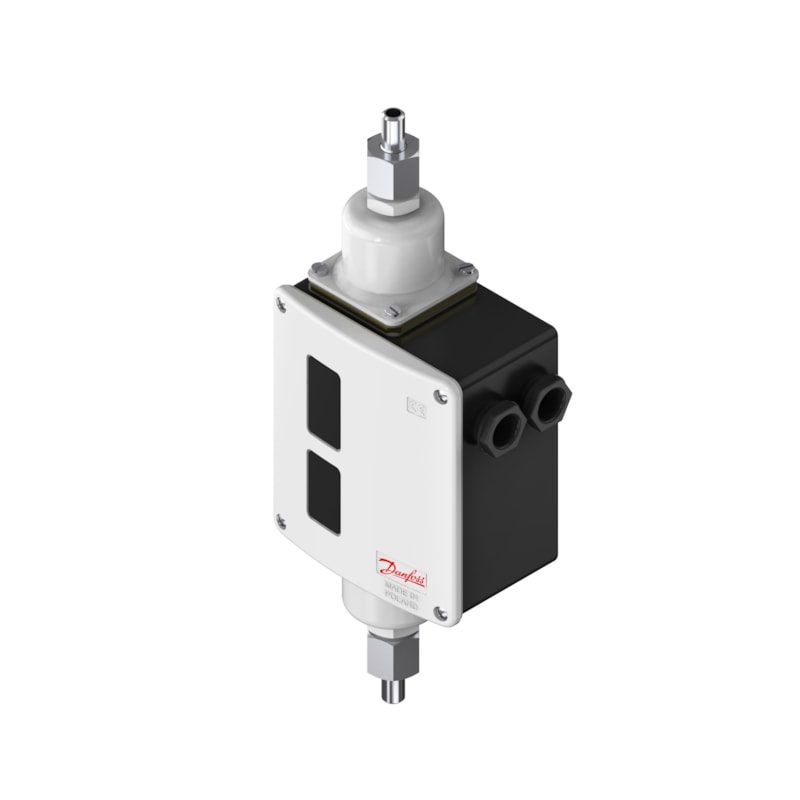

Danfoss RT262AL Differential Pressure Switch 0.1 to 1.5 bar SPDT Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT262AL mechanical differential pressure switch with bellows sensing element, SPDT (neutral zone) contact and auto reset. Monitors the pressure difference across two connections; differential setting range 0.1 to 1.5 bar; maximum working pressure 11 bar; G 3/8 male pressure connection (ISO 228-1); enclosure IP66. Danfoss code number 017D004366; EAN 5702428042765.
Technical Specifications
- Brand
- Danfoss
- Model
- RT262AL differential pressure switch
- Code number
- 017D004366
- Differential pressure range
- 0.1 to 1.5 bar
- Maximum working pressure
- 11 bar
- Contact function
- SPDT (neutral zone)
- Reset
- Auto
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC (-58 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Maximum test pressure
- 13 bar
- EAN
- 5702428042765
- Net weight
- 1.1 kg
- Gross weight
- 1.38 kg
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CCC, CE, EAC, LVD, PED, RMRS
- Type
- RT262AL
- Product group
- Switches and thermostats
- Alarm Signal
- Falling
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact differential [bar]
- 0.1 bar
- Diff.press.setting range [bar] [max]
- 1.5 bar
- Diff.press.setting range [bar] [min]
- 0.1 bar
- Diff.press.setting range [MPa] [max]
- 0.15 MPa
- Diff.press.setting range [MPa] [min]
- 0.01 MPa
- Diff.press.setting range [psi] [max]
- 21.8 psi
- Diff.press.setting range [psi] [min]
- 1.5 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- Factory setting [bar]
- 0.3 bar
- Factory setting [MPa]
- 0.03 MPa
- Factory setting [psig]
- 4 psig
- In scope of WEEE
- Yes
- Max. neutral zone [bar]
- 0.33 bar
- Max. test pressure [bar] Pe
- 13 bar
- Max. test pressure [psig]
- 188 psig
- Max. Working Pressure [bar]
- 11 bar
- Max. Working Pressure [psig]
- 160 psig
- Operat. range LP side [bar] Pe [max]
- 9 bar
- Operat. range LP side [bar] Pe [min]
- -1 bar
- Operat. range LP side [psig]Pe [max]
- 131 psig
- Operat. range LP side [psig]Pe [min]
- -15 psig
- Pressure connection notes
- Weld nipple d6.5/D10mm
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] Pe [max]
- 9 bar
- Pressure range [bar] Pe [min]
- -1 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R11
- Relay release time [s]
- 0 s
- Reset function
- Auto
- UL approved refrigerants
- R11
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 11 bar
- Temperature Range
- -50 to +70 degC
- IP Rating
- IP66
- Classification / Approval
- CCC, CE, EAC, LVD, PED, RMRS
- HS Code
- 9032.20
Compatibility & Fitment
G 3/8 male (ISO 228-1) pressure connection. Neutral-zone (adjustable) differential pressure switch; confirm range and reset type against application.
