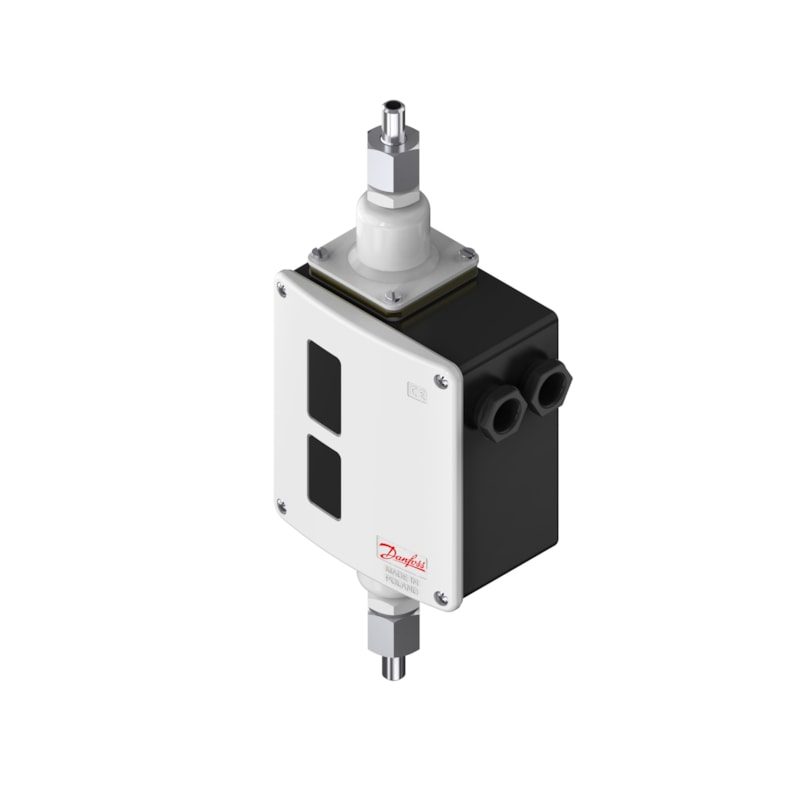

Danfoss RT260AL Differential Pressure Switch 0.5 to 4 bar SPDT Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT260AL mechanical differential pressure switch with bellows sensing element, SPDT (neutral zone) contact and auto reset. Monitors the pressure difference across two connections; differential setting range 0.5 to 4 bar; maximum working pressure 22 bar; G 3/8 male pressure connection (ISO 228-1); enclosure IP66. Danfoss code number 017D004866; EAN 5702428042727.
Technical Specifications
- Brand
- Danfoss
- Model
- RT260AL differential pressure switch
- Code number
- 017D004866
- Differential pressure range
- 0.5 to 4 bar
- Maximum working pressure
- 22 bar
- Contact function
- SPDT (neutral zone)
- Reset
- Auto
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC (-58 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Maximum test pressure
- 25 bar
- EAN
- 5702428042727
- Net weight
- 1.022 kg
- Gross weight
- 1.3 kg
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CCC, CE, EAC, LVD, PED, RMRS
- Type
- RT260AL
- Product group
- Switches and thermostats
- Alarm Signal
- Falling
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact differential [bar]
- 0.3 bar
- Diff.press.setting range [bar] [max]
- 4 bar
- Diff.press.setting range [bar] [min]
- 0.5 bar
- Diff.press.setting range [MPa] [max]
- 0.4 MPa
- Diff.press.setting range [MPa] [min]
- 0.05 MPa
- Diff.press.setting range [psi] [max]
- 58 psi
- Diff.press.setting range [psi] [min]
- 7.3 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- Factory setting [bar]
- 0.14 bar
- Factory setting [MPa]
- 0.014 MPa
- Factory setting [psig]
- 2 psig
- In scope of WEEE
- Yes
- Max. neutral zone [bar]
- 0.9 bar
- Max. test pressure [bar] Pe
- 25 bar
- Max. test pressure [psig]
- 362 psig
- Max. Working Pressure [bar]
- 22 bar
- Max. Working Pressure [psig]
- 319 psig
- Operat. range LP side [bar] Pe [max]
- 18 bar
- Operat. range LP side [bar] Pe [min]
- -1 bar
- Operat. range LP side [psig]Pe [max]
- 261 psig
- Operat. range LP side [psig]Pe [min]
- -15 psig
- Pressure connection notes
- Weld nipple d6.5/D10mm
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] Pe [max]
- 18 bar
- Pressure range [bar] Pe [min]
- -1 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Relay release time [s]
- 0 s
- Reset function
- Auto
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 22 bar
- Temperature Range
- -50 to +70 degC
- IP Rating
- IP66
- Classification / Approval
- CCC, CE, EAC, LVD, PED, RMRS
- HS Code
- 9032.20
Compatibility & Fitment
G 3/8 male (ISO 228-1) pressure connection. Neutral-zone (adjustable) differential pressure switch; confirm range and reset type against application.
Product Documentation
More from Danfoss
Danfoss
Danfoss RT260A Differential Pressure Switch 1.5 to 11 bar SPDT Auto Reset
017D002466
Danfoss
Danfoss RT265A Differential Pressure Switch 1 to 6 bar SPDT plus SPST Auto Reset
017D007266
Danfoss

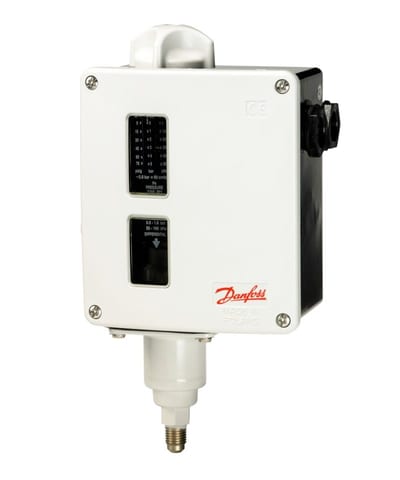

Danfoss RT1 Pressure Switch -0.8 to 5 SPDT Manual Reset
017-524666
Danfoss
Danfoss RT5A Pressure Switch 4 to 17 SPDT Manual Reset
017-504766
Danfoss

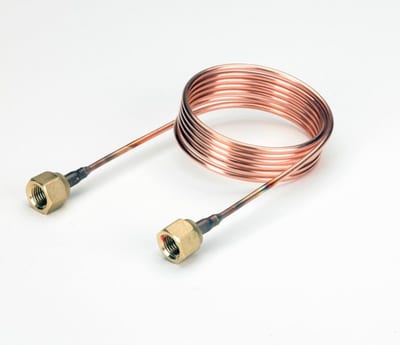

Danfoss Switch Accessory Capillary Tube 500mm Copper 1/4IN Flare
060-019066
Danfoss

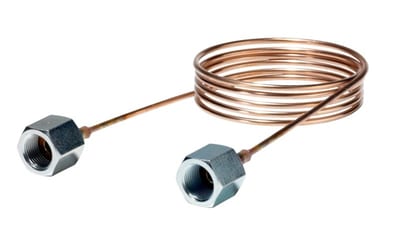

Danfoss Switch Accessory Capillary Tube 1500mm Copper 3/8IN G
060-104766
Danfoss

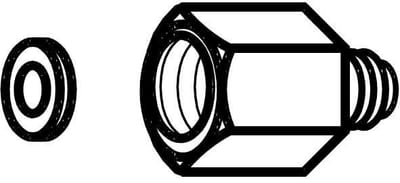

Danfoss Switch Accessory Reducing Nipple 3/8IN G x 7/16-20 UNF
017-420566
Danfoss

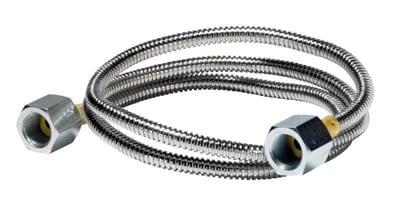

Danfoss Switch Accessory Capillary Tube Armoured 1000mm 3/8IN G
