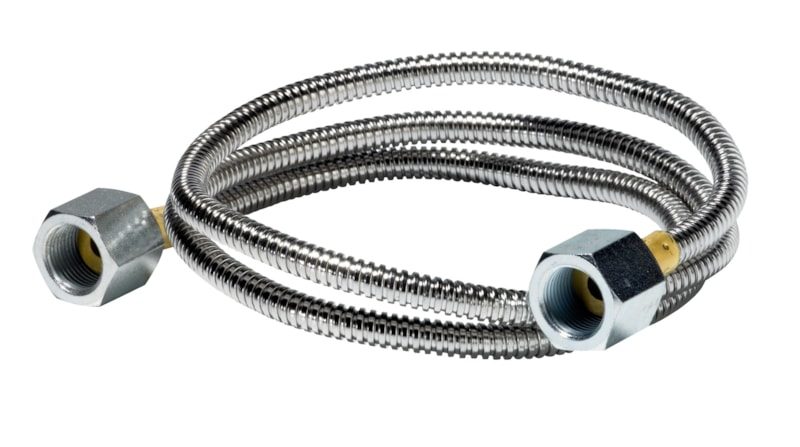

Danfoss Switch Accessory Capillary Tube Armoured 1000mm 3/8IN G
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss switch accessory: armoured copper capillary tube for CAS/KPS/MBC/RT pressure switches, 1000 mm long with 25 mm tube tail, 3/8 in G (ISO 228-1, internal) connection at both ends, includes 2x copper washers. Danfoss code number 060-333366. Multi pack of 15 pc.
Technical Specifications
- Brand
- Danfoss
- Type
- switch accessory, armoured capillary tube
- Code number
- 060-333366
- Used for product
- CAS, KPS, MBC, RT
- Tube
- copper, 1000 mm length, 25 mm tube tail
- Connection
- 3/8 in G (ISO 228-1, internal) both ends
- Included
- 2x washer Cu
- Packing format
- multi pack, 15 pc per pack
- EAN
- 5702428130301
- Net weight
- 0.177 kg; gross weight: 0.204 kg
- REACH Candidate List
- no substances listed
- EU RoHS / China RoHS
- compliant
- Product group
- Switches accessories
- Capillary tube length [in]
- 39 in
- Capillary tube length [mm]
- 1000 mm
- Capillary tube material
- Copper
- China RoHS compliance
- Yes
- Connection notes
- 25 mm tube "tail"
- EU RoHS compliance
- Yes
- Parts included
- 2x washer Cu
- Pressure inlet conn. size [in]
- 3/8
- Pressure inlet conn. std.
- ISO 228-1
- Pressure inlet conn. type
- G
- Pressure inlet Female/Male
- Internal
- Pressure outlet conn. size[in]
- 3/8
- Pressure outlet conn. type
- G
- REACH Candidate List substances
- No
- Type designation
- Capillary tube armoured
Standards & Compliance
- Material
- Capillary tube armoured
- Thread Standard
- ISO 228-1
- HS Code
- 9032.90
Compatibility & Fitment
Inserted between the switch and the pressure source to damp strongly pulsating media. Confirm the 3/8 in G port and required capillary length against the switch installation.
