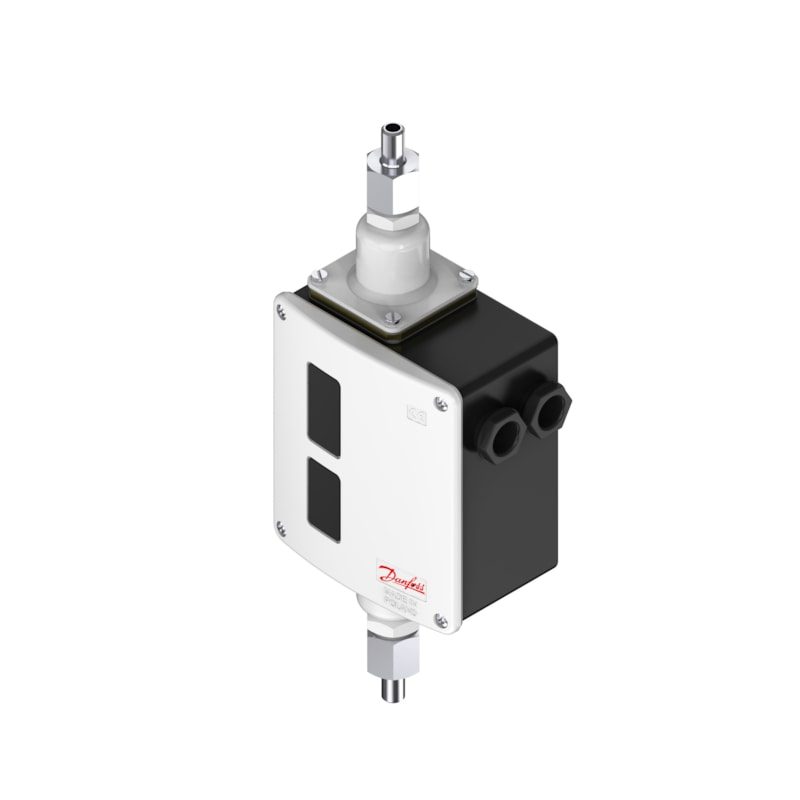

Danfoss RT260A Differential Pressure Switch 1.5 to 11 bar SPDT Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT260A mechanical differential pressure switch with bellows sensing element, SPDT contact and auto reset. Monitors the pressure difference across two connections; differential setting range 1.5 to 11 bar; maximum working pressure 42 bar; G 3/8 male pressure connection (ISO 228-1); enclosure IP66. Danfoss code number 017D002466; EAN 5702428042819.
Technical Specifications
- Brand
- Danfoss
- Model
- RT260A differential pressure switch
- Code number
- 017D002466
- Differential pressure range
- 1.5 to 11 bar
- Maximum working pressure
- 42 bar
- Contact function
- SPDT
- Reset
- Auto
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC (-58 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Maximum test pressure
- 47 bar
- EAN
- 5702428042819
- Net weight
- 1.002 kg
- Gross weight
- 1.276 kg
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CCC, CE, CMIM, EAC, KR, LVD, PED, RINA, RMRS
- Type
- RT260A
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact differential [bar]
- 0.5 bar
- Diff.press.setting range [bar] [max]
- 11 bar
- Diff.press.setting range [bar] [min]
- 1.5 bar
- Diff.press.setting range [MPa] [max]
- 1.1 MPa
- Diff.press.setting range [MPa] [min]
- 0.15 MPa
- Diff.press.setting range [psi] [max]
- 159.5 psi
- Diff.press.setting range [psi] [min]
- 21.8 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 47 bar
- Max. test pressure [psig]
- 681 psig
- Max. Working Pressure [bar]
- 42 bar
- Max. Working Pressure [psig]
- 609 psig
- Operat. range LP side [bar] Pe [max]
- 31 bar
- Operat. range LP side [bar] Pe [min]
- -1 bar
- Operat. range LP side [psig]Pe [max]
- 450 psig
- Operat. range LP side [psig]Pe [min]
- -15 psig
- Pressure connection notes
- Weld nipple d6.5/D10mm
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] Pe [max]
- 31 bar
- Pressure range [bar] Pe [min]
- -1 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R11
- Relay release time [s]
- 0 s
- Reset function
- Auto
- UL approved refrigerants
- R11
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 42 bar
- Temperature Range
- -50 to +70 degC
- IP Rating
- IP66
- Classification / Approval
- CCC, CE, CMIM, EAC, KR, LVD, PED, RINA, RMRS
- HS Code
- 9032.20
Compatibility & Fitment
G 3/8 male (ISO 228-1) pressure connection. Neutral-zone (adjustable) differential pressure switch; confirm range and reset type against application.
