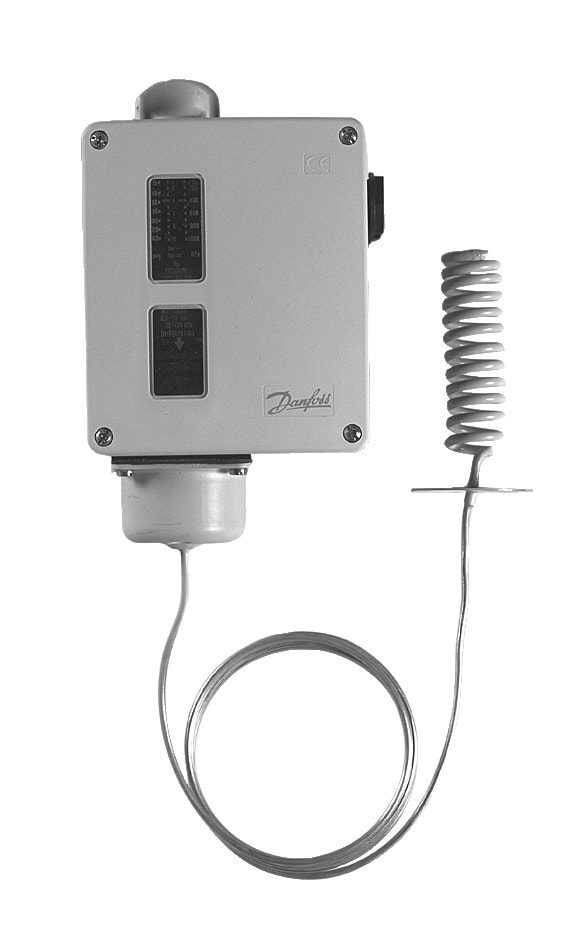

Danfoss RT141 Thermostat 40 to 80 SPDT Auto Reset, 2 m capillary
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT141 mechanical temperature switch (thermostat) with remote duct sensor and SPDT contact, auto reset. Sensor setting range 40 to 80; differential 1.9 to 17 degC (adjustable); enclosure IP66. For industrial and marine refrigeration and HVAC applications. Danfoss code number 017-524166; EAN 5702423120956.
Technical Specifications
- Brand
- Danfoss
- Model
- RT141 thermostat
- Code number
- 017-524166
- Sensor temperature setting range
- 40 to 80
- Differential
- 1.9 to 17 degC (adjustable)
- Contact function
- SPDT
- Reset
- Auto
- Sensor type
- remote duct sensor, sensor 25 x 90 mm
- Capillary tube length
- 2000 mm (2 m)
- Max. sensor temperature
- 250 degC
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CCC, CE, EAC, LVD, RoHS, RoHS China, TYSK
- EAN
- 5702423120956
- Part number
- 017-524166
- Net weight
- 1.048 Kilogram
- Type
- RT141
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- CCC
- Cap. tube length fraction [in]
- 78 3/4 in
- Capillary tube length [mm]
- 2000 mm
- CE mark
- Yes
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Diff. @ Max. range setting[°C] [max]
- 17 °C
- Diff. @ Max. range setting[°C] [min]
- 2.5 °C
- Diff. @ Min. range setting[°C] [max]
- 9 °C
- Diff. @ Min. range setting[°C] [min]
- 1.9 °C
- Differential type
- Adjustable
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- Max. sensor temperature [°C]
- 250 °C
- Max. sensor temperature [°F]
- 482 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor size (Ø x L) [in]
- 1 x 3 1/2 in
- Sensor size (Ø x L) [mm]
- 25 x 90 mm
- Temperature range [°C] [max]
- 80 °C
- Temperature range [°C] [min]
- 40 °C
- Temperature range [°F] [max]
- 176 °F
- Temperature range [°F] [min]
- 104 °F
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Remote duct sensor
- Temperature Range
- -50 to +70 degC (ambient); sensor 40 to 80 degC
- IP Rating
- IP66
- Classification / Approval
- CCC, CE, EAC, LVD, RoHS, RoHS China, TYSK
- HS Code
- 9032.10
Compatibility & Fitment
RT141 remote duct sensor thermostat, 2 m capillary. Confirm setting range, reset type and sensor/capillary length against application.
Product Documentation
More from Danfoss
Danfoss
Danfoss RT23 Thermostat 5 to 22 SPDT Auto Reset, 2 m capillary
017-527866
Danfoss

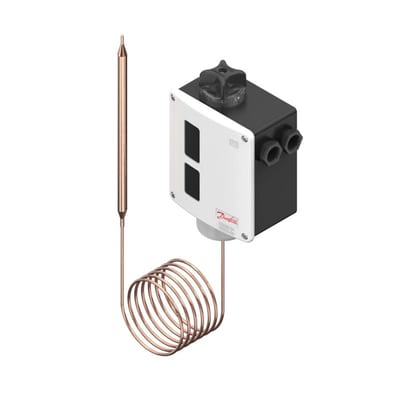

Danfoss RT24 Thermostat 15 to 34 SPDT Auto Reset, 2 m capillary
017-528566
Danfoss

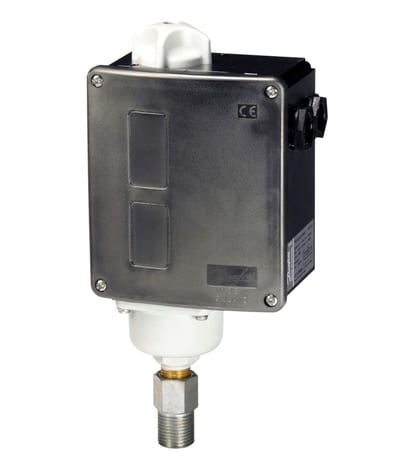

Danfoss RT113E Pressure Switch 0 to 0.3 bar SPDT Auto Reset
017-519566
Danfoss

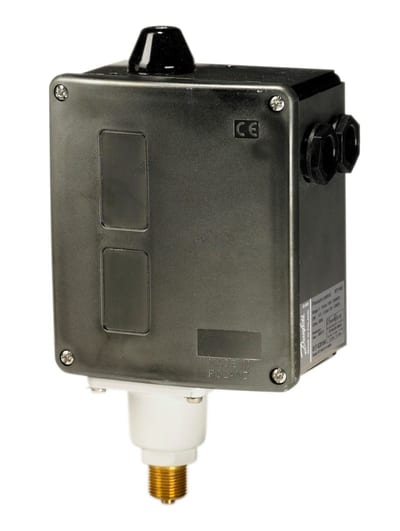

Danfoss RT116E Pressure Switch 1 to 10 bar SPDT Auto Reset
017-520166
Danfoss

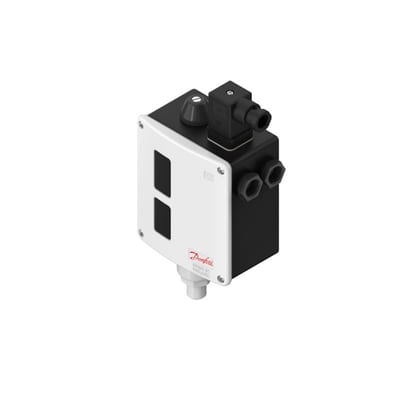

Danfoss RT5 Pressure Switch 4 to 17 bar SPDT Manual Reset (max)
017-525166
Danfoss

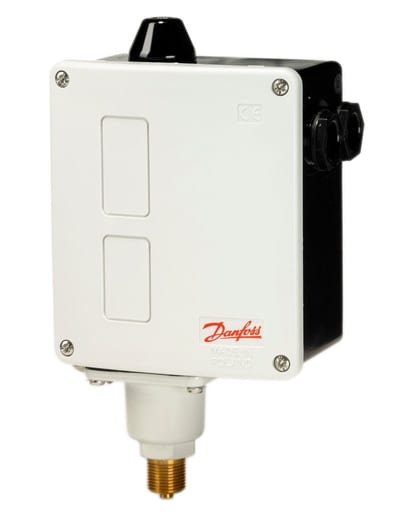

Danfoss RT5 Pressure Switch 4 to 17 bar SPDT Auto Reset (017-525366)
Danfoss

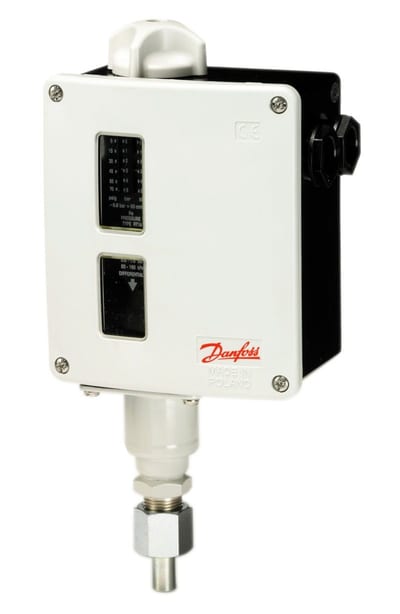

Danfoss RT5 Pressure Switch 4 to 17 bar SPDT Auto Reset (017-528466)
Danfoss

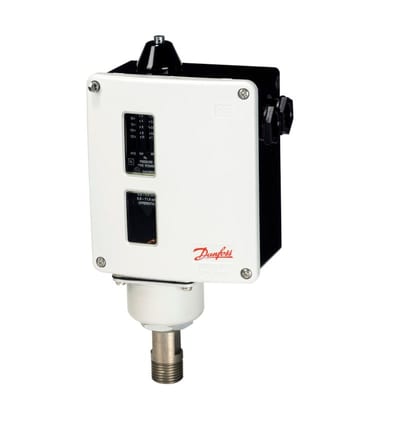

Danfoss RT110 Pressure Switch 0.2 to 3 bar SPDT Auto Reset
