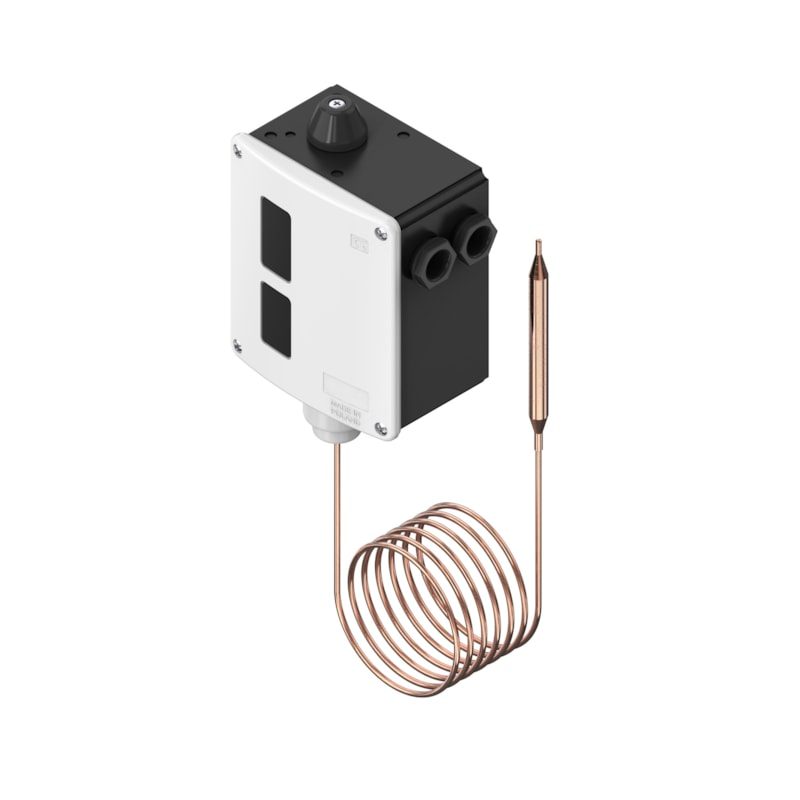

Danfoss RT107E Thermostat 70 to 150 degC SPDT gold Auto Reset, 2 m capillary
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT107E mechanical temperature switch (thermostat) with remote bulb and SPDT gold contact, auto reset. Sensor setting range 70 to 150 degC; differential 1.8 to 25 degC (adjustable); enclosure IP66. For industrial and marine refrigeration and HVAC applications. Danfoss code number 017-515366; EAN 5702423245277.
Technical Specifications
- Brand
- Danfoss
- Model
- RT107E thermostat
- Code number
- 017-515366
- Sensor temperature setting range
- 70 to 150 degC
- Differential
- 1.8 to 25 degC (adjustable)
- Contact function
- SPDT gold
- Reset
- Auto
- Sensor type
- remote bulb, sensor 9.5 x 110 mm (min. pocket 112 mm)
- Capillary tube length
- 2000 mm (2 m)
- Max. sensor temperature
- 215 degC
- Enclosure
- IP66
- Ambient temperature range
- -20 to +65 degC
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- ATEX Cat. 2 Zone 1, CE, EAC, RoHS, RoHS China
- EAN
- 5702423245277
- Part number
- 017-515366
- Net weight
- 0.966 Kilogram
- Type
- RT107E
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -20 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -4 °F
- Approval
- ATEX - Cat. 2 - Zone 1
- Cap. tube length fraction [in]
- 78 3/4 in
- Capillary tube length [mm]
- 2000 mm
- CE mark
- Yes
- Charge type
- Partial
- China RoHS compliance
- Yes
- Diff. @ Max. range setting[°C] [max]
- 8 °C
- Diff. @ Max. range setting[°C] [min]
- 1.8 °C
- Diff. @ Min. range setting[°C] [max]
- 25 °C
- Diff. @ Min. range setting[°C] [min]
- 6 °C
- Differential type
- Adjustable
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Out of scope
- EX Sales text
- -20C<ta<+65C
- Max. sensor temperature [°C]
- 215 °C
- Max. sensor temperature [°F]
- 419 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor pocket length min. [in]
- 4 13/32 in
- Sensor pocket length min. [mm]
- 112 mm
- Sensor size (Ø x L) [in]
- 3/8 x 4 1/4 in
- Sensor size (Ø x L) [mm]
- 9.5 x 110 mm
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- 70 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- 158 °F
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Remote bulb
- Temperature Range
- -20 to +65 degC (ambient); sensor 70 to 150 degC
- IP Rating
- IP66
- Classification / Approval
- ATEX Cat. 2 Zone 1, CE, EAC, RoHS, RoHS China
- HS Code
- 9032.10
Compatibility & Fitment
RT107E remote bulb thermostat, 2 m capillary. Confirm setting range, reset type and sensor/capillary length against application.
Product Documentation
More from Danfoss
Danfoss

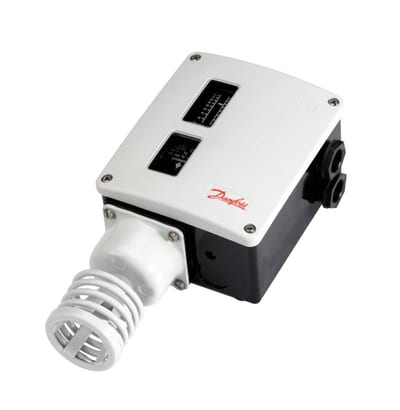

Danfoss RT103 Thermostat 10 to 45 degC SPDT Auto Reset
017-515566
Danfoss

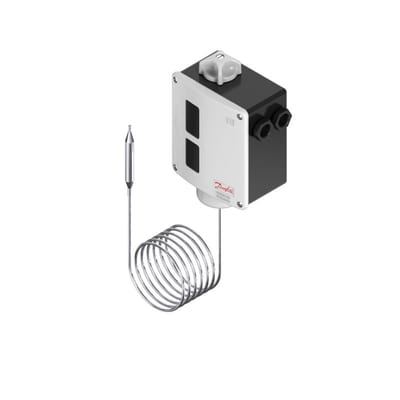

Danfoss RT26 Thermostat -5 to 50 degC SPDT Auto Reset, 2 m capillary
017-518066
Danfoss

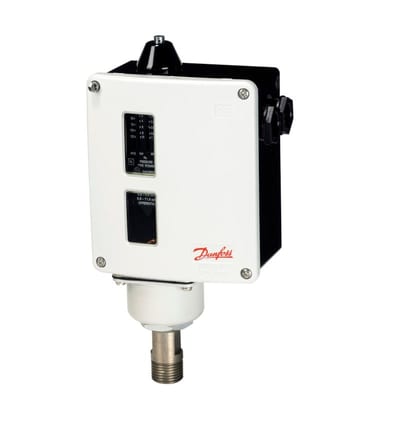

Danfoss RT6AW Pressure Switch 5 to 25 bar SPDT Auto Reset (017-513166)
Danfoss

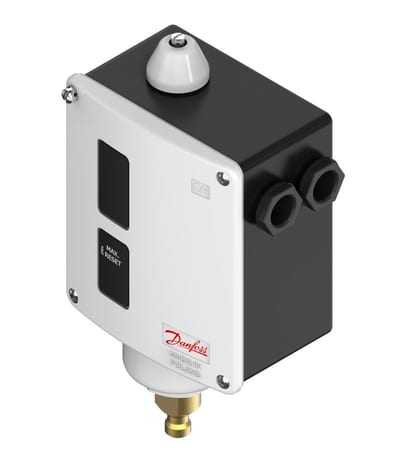

Danfoss RT6AB Pressure Switch 10 to 28 bar SPDT Manual Max Reset (017-513366)
Danfoss
Danfoss RT6AEB Pressure Switch 10 to 28 bar SPDT gold Manual Max Reset
017-513466
Danfoss

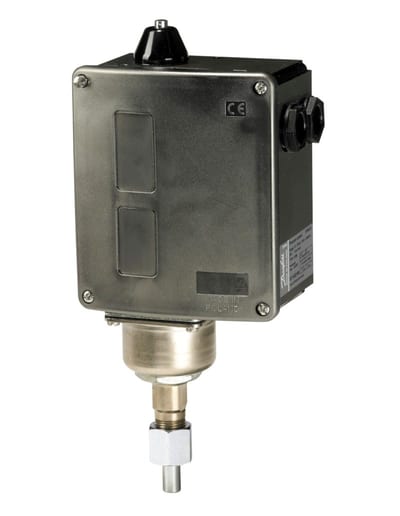

Danfoss RT6AEW Pressure Switch 5 to 25 bar SPDT gold Auto Reset
017-513866
Danfoss

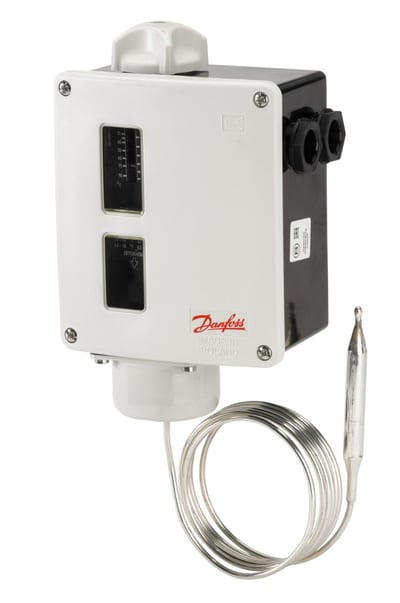

Danfoss RT101 Thermostat 25 to 90 SPDT Auto Reset, 2 m capillary
017-500566
Danfoss

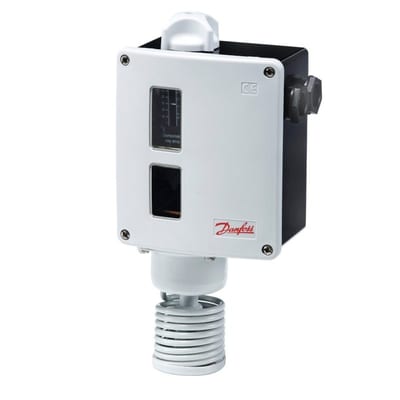

Danfoss RT115 Thermostat 10 to 35 SPDT Auto Reset
