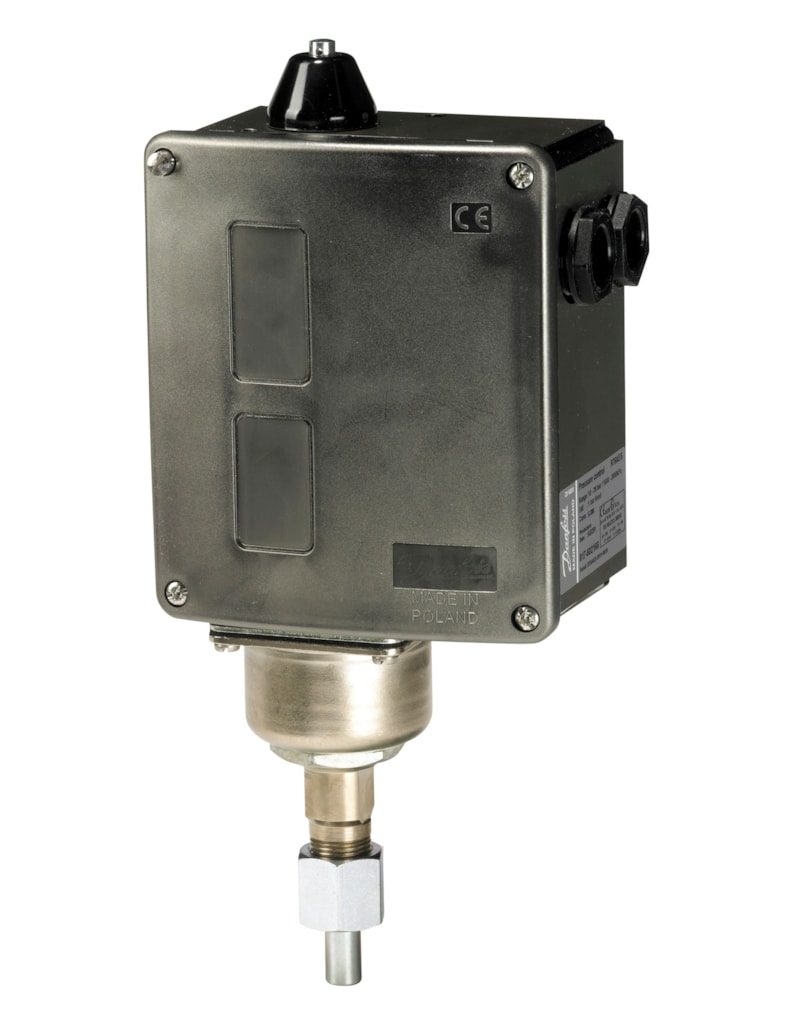

Danfoss RT6AEB Pressure Switch 10 to 28 bar SPDT gold Manual Max Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT6AEB mechanical pressure switch with bellows sensing element and SPDT gold contact, manual max reset. Regulation range 10 to 28 bar; differential 1.5 bar; pressure connection G 3/8; max. working pressure 34 bar (495 psig); enclosure IP54. For industrial and marine refrigeration and HVAC applications. Danfoss code number 017-513466; EAN 5702428130813.
Technical Specifications
- Brand
- Danfoss
- Model
- RT6AEB pressure switch
- Code number
- 017-513466
- Regulation range (Pe)
- 10 to 28 bar
- Differential
- 1.5 bar
- Contact function
- SPDT gold
- Reset
- Manual Max
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Max. working pressure
- 34 bar (495 psig)
- Burst pressure
- 136 bar
- Enclosure
- IP54
- Ambient temperature range
- -20 to +65 degC
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- ATEX Cat. 2 Zone 1, CCC, CE, EAC, LLC CDC EURO-TYSK, PED, RMRS, RoHS, RoHS China, TYSK
- EAN
- 5702428130813
- Part number
- 017-513466
- Net weight
- 1.126 Kilogram
- Type
- RT6AEB
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -20 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -4 °F
- Approval
- ATEX - Cat. 2 - Zone 1
- Burst pressure [bar]
- 136 bar
- CE mark
- Yes
- China RoHS compliance
- Yes
- Differential [bar]
- 1.5 bar
- Differential [psi]
- 14.5 psi
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Out of scope
- EX Sales text
- -20C<ta<+65C
- Fluid Group
- 1
- Max. test pressure [bar] Pe
- 38 bar
- Max. test pressure [psig]
- 551 psig
- Max. Working Pressure [bar]
- 34 bar
- Max. Working Pressure [psig]
- 495 psig
- PED category
- IV
- Pressure connection notes
- Weld nipple d6.5/D10mm
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 28 bar
- Regulation range [bar] Pe [min]
- 10 bar
- Regulation range [psig] Pe [max]
- 406.1 psig
- Regulation range [psig] Pe [min]
- 145 psig
- Reset function
- Manual Max
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Pressure Rating
- 34 bar (495 psig)
- Temperature Range
- -20 to +65 degC (ambient)
- IP Rating
- IP54
- Classification / Approval
- ATEX Cat. 2 Zone 1, CCC, CE, EAC, LLC CDC EURO-TYSK, PED, RMRS, RoHS, RoHS China, TYSK
- HS Code
- 9032.20
Compatibility & Fitment
RT6AEB bellows pressure switch, G 3/8 connection, manual max reset. Confirm range, reset type and pressure connection against application.
