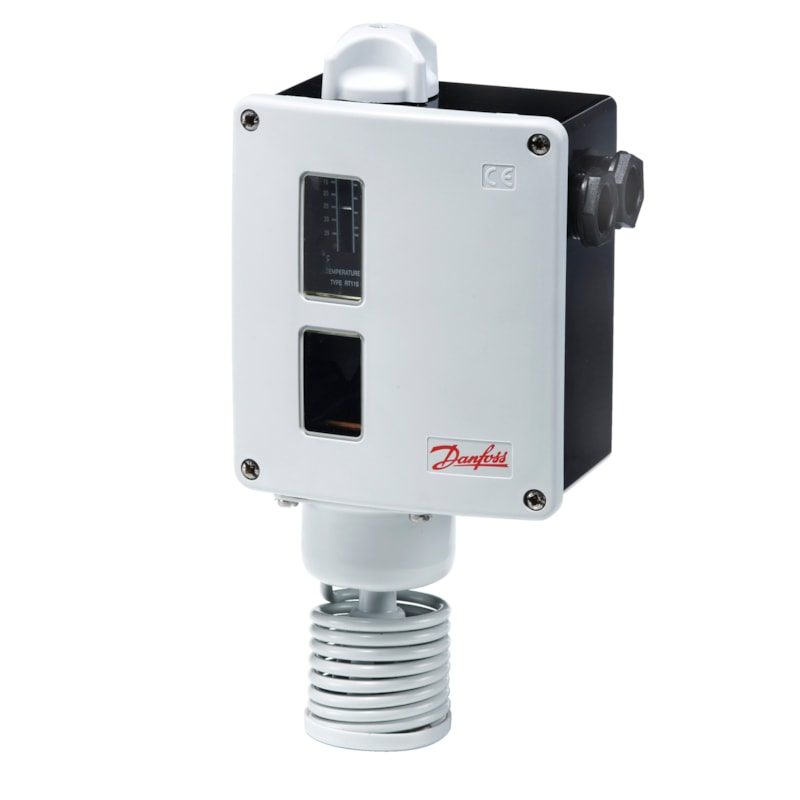

Danfoss RT115 Thermostat 10 to 35 SPDT Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT115 mechanical temperature switch (thermostat) with room sensor and SPDT contact, auto reset. Sensor setting range 10 to 35; differential 1.8 degC (fixed); enclosure IP66. For industrial and marine refrigeration and HVAC applications. Danfoss code number 017-519766; EAN 5702423120567.
Technical Specifications
- Brand
- Danfoss
- Model
- RT115 thermostat
- Code number
- 017-519766
- Sensor temperature setting range
- 10 to 35
- Differential
- 1.8 degC (fixed)
- Contact function
- SPDT
- Reset
- Auto
- Sensor type
- room sensor
- Max. sensor temperature
- 92 degC
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CCC, CE, EAC, LLC CDC EURO-TYSK, LVD, RMRS, RoHS, RoHS China, TYSK
- EAN
- 5702423120567
- Part number
- 017-519766
- Net weight
- 0.868 Kilogram
- Type
- RT115
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- CCC
- CE mark
- Yes
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Diff. @ Max. range setting[°C]
- 1.8 °C
- Diff. @ Min. range setting[°C]
- 1.8 °C
- Differential type
- Fixed
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- Max. sensor temperature [°C]
- 92 °C
- Max. sensor temperature [°F]
- 198 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Temperature range [°C] [max]
- 35 °C
- Temperature range [°C] [min]
- 10 °C
- Temperature range [°F] [max]
- 95 °F
- Temperature range [°F] [min]
- 50 °F
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Room sensor
- Temperature Range
- -50 to +70 degC (ambient); sensor 10 to 35 degC
- IP Rating
- IP66
- Classification / Approval
- CCC, CE, EAC, LLC CDC EURO-TYSK, LVD, RMRS, RoHS, RoHS China, TYSK
- HS Code
- 9032.10
Compatibility & Fitment
RT115 room sensor thermostat. Confirm setting range, reset type and sensor/capillary length against application.
