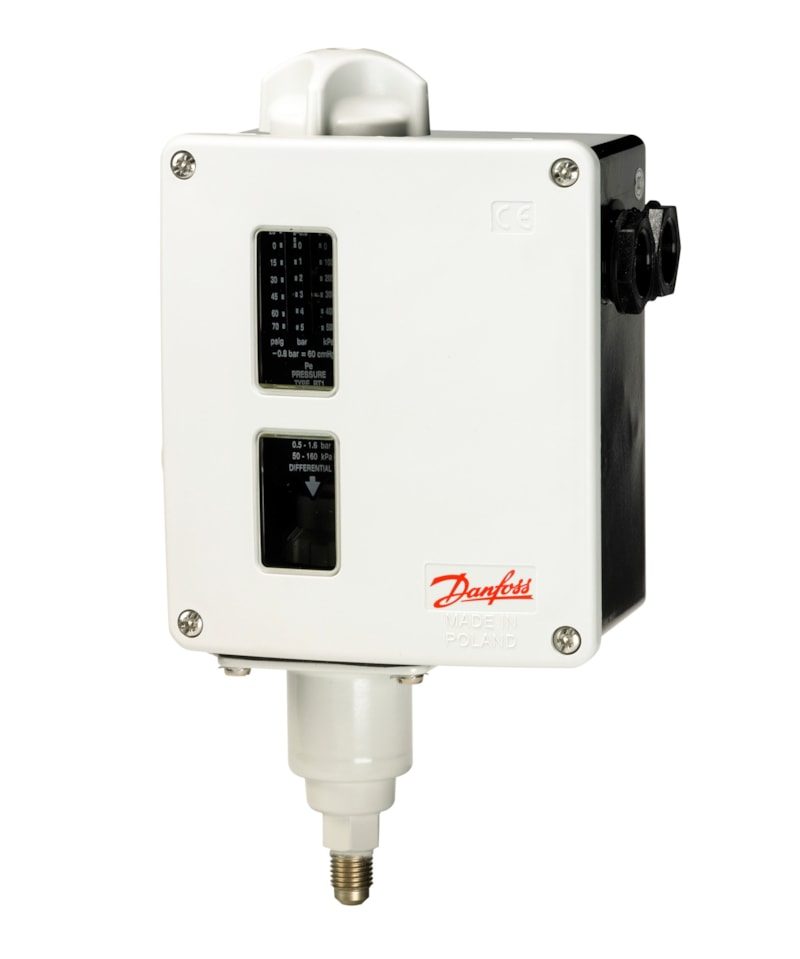

Danfoss RT1 Pressure Switch -0.8 to 5 bar SPDT Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT1 mechanical pressure switch with bellows sensing element, single-pole double-throw (SPDT) contact and auto reset. Regulating range -0.8 to 5 bar; 1/4 in flare male pressure connection (DIN 8906); enclosure IP66. Danfoss code number 017-524566.
Technical Specifications
- Brand
- Danfoss
- Model
- RT1 pressure switch
- Code number
- 017-524566
- Regulating range (Pe)
- -0.8 to 5 bar
- Maximum working pressure
- 22 bar
- Contact function
- SPDT (single-pole double-throw)
- Reset
- Auto
- Differential
- 0.5 to 1.6 bar (adjustable)
- Pressure sensing element
- bellows
- Pressure connection
- 1/4 in flare male (DIN 8906)
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC (-58 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CE, EAC
- Product type
- RT1
- Product group
- Switches and thermostats
- Max. test pressure
- 363.0 psig
- Max. test pressure Pe
- 25.0 bar
- Max. working pressure
- 22.0 bar
- Refrigerants
- R11; R113; R12; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R507C
- UL approved refrigerants
- R11; R113; R12; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R507C
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.728 kg
- EAN
- 5702428517416
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 10A
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2; Flex, no ferrules: 0.2-2.5 mm2; Solid/stranded: 0.2-2.5 mm2
- Enclosure rating IP
- IP66
- In scope of WEEE
- Yes
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- DIN 8906
- Pressure Rating
- 22 bar
- Temperature Range
- -50 to +70 degC
- IP Rating
- IP66
- Classification / Approval
- CE, EAC
- HS Code
- 9032.20
Compatibility & Fitment
1/4 in flare male (DIN 8906) pressure connection. Confirm range and reset type against application.
