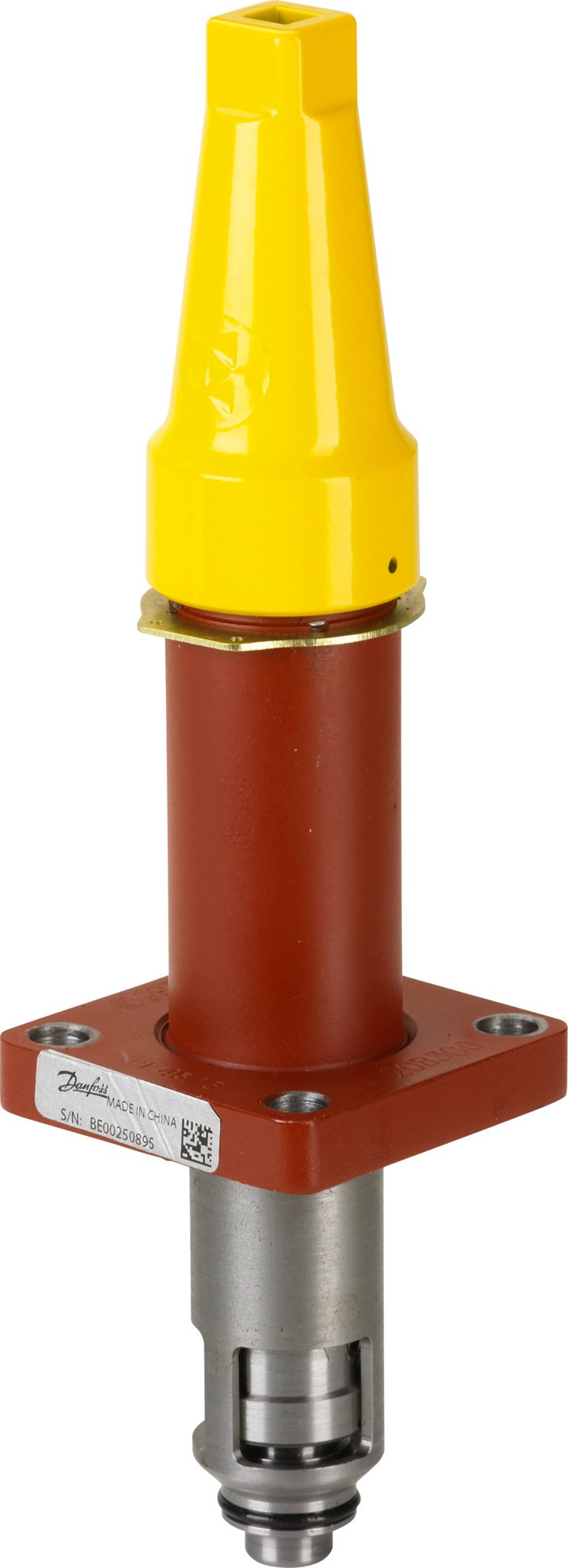

Danfoss REG-LA 15-20 function module (Top Complete) for hand regulating valve, SVL Flexline
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss REG-LA 15-20/25-40 series function module (Top Complete) for the SVL Flexline hand regulating valve, code 148B6401. Supplied as a complete top assembly — 1 gasket, top part and 4 bolts — with a long neck for insulation. Flow area 36.5 mm2 (0.056 in2). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Used for products REG-LA 15; REG-LA 20. The SVL Flexline design lets the function module be exchanged on an installed valve body without cutting the valve out of the line. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- REG-LA function module (Top Complete)
- Code number
- 148B6401
- Series
- SVL Flexline REG-LA
- Product group
- Shut-off and regulating valves
- Type designation
- Top Complete
- Parts included
- 1 gasket; top part; 4 bolts
- Connection neck
- Long
- Flow area
- 36.5 mm2 (0.056 in2)
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Used for products
- REG-LA 15; REG-LA 20
- Weight
- net 1.1 kg, gross 1.684 kg
- EAN
- 5702428818100
- Net weight
- 1.1 Kilogram
- China RoHS compliance
- Yes
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow area [in2]
- 0.056 in²
- Flow area [mm2]
- 36.5 mm²
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Long
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- REG-LA 15
- Used for product comments
- Long neck for insulation
Standards & Compliance
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline REG-LA function module (spare top). Fits the REG-LA 15; REG-LA 20 valve bodies. Confirm the valve size/series and refrigerant before ordering; the module exchanges on an installed body without cutting it out of the line.
Product Documentation
More from Danfoss
Danfoss
Danfoss REG-LB 15-20 function module (Top Complete) for hand regulating valve, SVL Flexline
148B6402
Danfoss
Danfoss REG-LA 25-40 function module (Top Complete) for hand regulating valve, SVL Flexline
148B6403
Danfoss
Danfoss REG-LB 25-40 function module (Top Complete) for hand regulating valve, SVL Flexline
148B6404
Danfoss

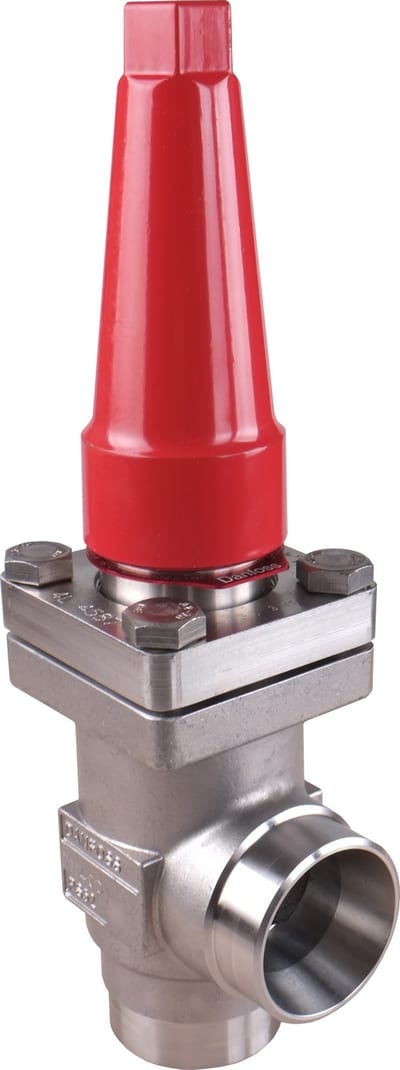

Danfoss SVA-S SS 65 A10 angleway shut-off valve, 65 mm (2 1/2 in) butt weld ASME B 36.19M Schedule 10, stainless steel, 52 bar
148B6448
Danfoss
Danfoss SVA-S SS 65 A10 straightway shut-off valve, 65 mm (2 1/2 in) butt weld ASME B 36.19M Schedule 10, stainless steel, 52 bar
148B6449
Danfoss
Danfoss SVA-S SS 25 angleway shut-off valve, 25 mm (1 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar
148B6477
Danfoss
Danfoss SVA-S SS 25 straightway shut-off valve, 25 mm (1 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar
148B6478
Danfoss

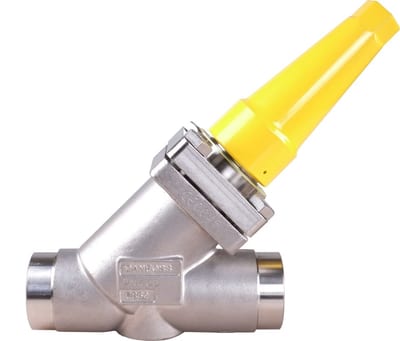

Danfoss REG-SB SS 25 straightway hand regulating valve, 25 mm (1 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar
