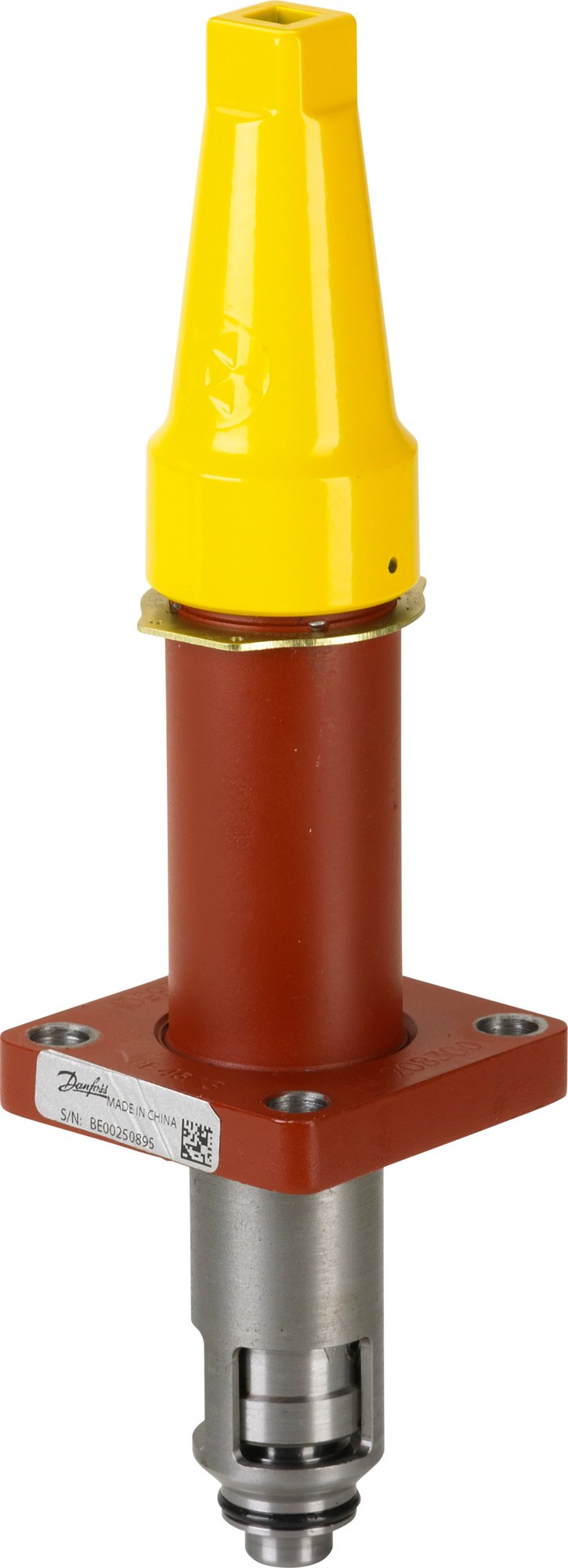

Danfoss REG-LA 25-40 function module (Top Complete) for hand regulating valve, SVL Flexline (code 148B6403)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss REG-LA 15-20/25-40 series function module (Top Complete) for the SVL Flexline hand regulating valve, code 148B6403. Supplied as a complete top assembly — 1 gasket, top part and 4 bolts — with a long neck for insulation. Flow area 178 mm2 (0.275 in2). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Used for products REG-LA 25; REG-LA 32; REG-LA 40. The SVL Flexline design lets the function module be exchanged on an installed valve body without cutting the valve out of the line. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Specifications
- Part number
- 148B6403
- HS code
- 8481.90
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
Compatibility
Danfoss SVL Flexline REG-LA function module (spare top). Fits the REG-LA 25; REG-LA 32; REG-LA 40 valve bodies. Confirm the valve size/series and refrigerant before ordering; the module exchanges on an installed body without cutting it out of the line.
