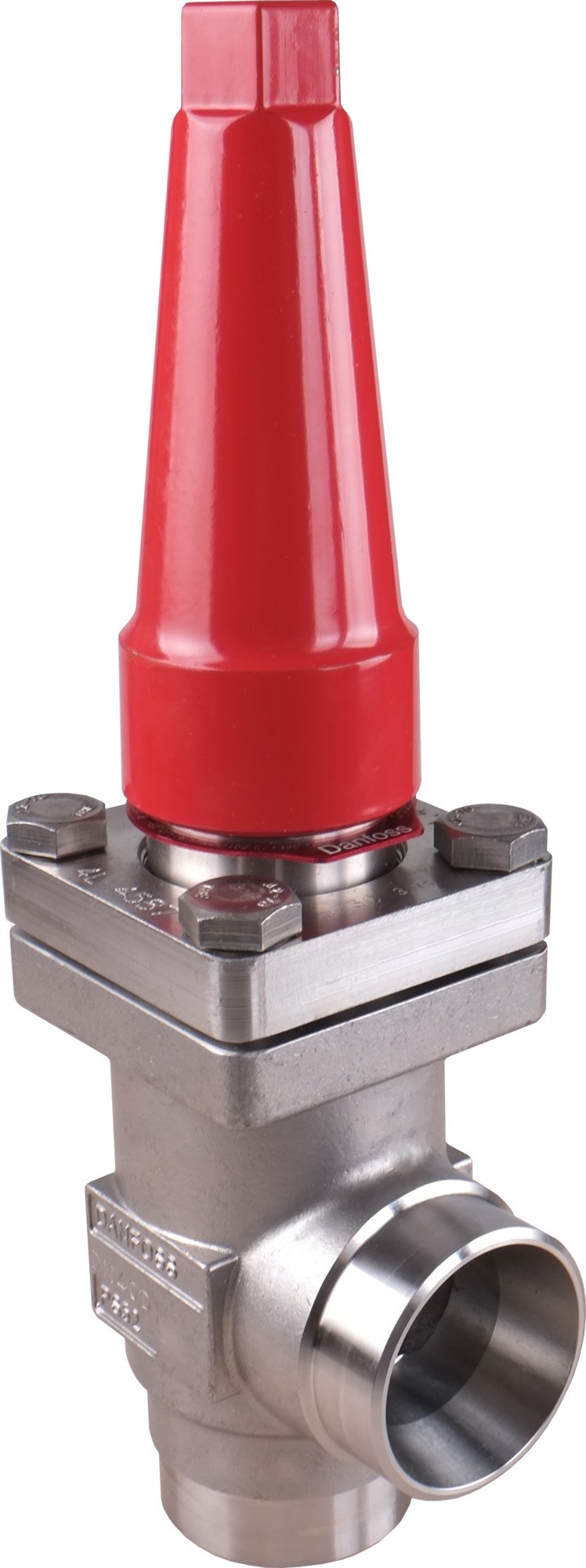

Danfoss SVA-S SS 65 A10 angleway shut-off valve, 65 mm (2 1/2 in) butt weld ASME B 36.19M Schedule 10, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S SS 65 angleway shut-off (stop) valve for industrial refrigeration, code 148B6448. Stainless steel body with butt weld connections to ASME B 36.19M Schedule 10, nominal size 65 mm (2 1/2 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 120 m3/h (Cv 140 gal/min), bi-flow. Renewable seat and cone close tightly and withstand system pulsation and vibration; the valve can be dismantled and repaired in line. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SVA-S SS 65 shut-off valve (SVL Flexline)
- Code number
- 148B6448
- Series
- SVA-S SS
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.19M Schedule 10
- Nominal size
- 65 mm (2 1/2 in)
- Body material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 120 m3/h (Cv 140 gal/min)
- Flow direction
- Bi-flow
- PED assessment
- Category II
- Approvals
- CE, EAC
- EAN
- 5702428895323
- Net weight
- 5.35 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2502:S10S:65)
- Connection material
- Stainless steel
- Cv value [gal/min]
- 140 gal/min
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 2 1/2 in
- Inlet connection size [mm]
- 65 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 120 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Outlet connection size [in]
- 2 1/2 in
- Outlet connection size [mm]
- 65 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.19M Schedule 10
- Size / Series
- 65 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S SS valve. This code is the angleway SVA-S SS 65 with butt weld (ASME B 36.19M Schedule 10) ends. Confirm line size (65 mm (2 1/2 in)), connection type/standard, direction (angleway) and refrigerant before ordering.
