Danfoss power element for TE 12 thermostatic expansion valve, R134A, externally equalized
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss exchangeable thermostatic power element for the TE 12 expansion valve, charged for R134a. Externally equalized. Evaporating temperature range -40 to +10 °C. Capillary tube 5000 mm. 1/4 in flare equalization connection. Laser-welded stainless steel element, capillary tube and bulb. Supplied with bulb strap.
Technical Specifications
- Type
- Power element (thermostatic element, exchangeable)
- Used for
- TE 12
- Refrigerant
- R134a
- Pressure equalization
- externally equalized
- MOP
- not applicable (no MOP charge)
- Evaporating temperature range
- -40 to +10 °C
- Max. working pressure
- 28 bar (400 psig)
- Capillary tube
- 5000 mm
- Equalization connection
- 1/4 in flare
- Element/capillary/bulb
- Laser-welded stainless steel
- EAN
- 5702428148979
- Code number
- 067B3363
- Product group
- Expansion valves
- Type designation
- Element
- Body material
- Brass
- Temperature range
- -40 °C to 10 °C
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.552 kg
- Capillary tube length
- 5000 mm
- Equalization connection type
- Flare
- Equalization size
- 1/4 in
- EU RoHS compliance
- Out of scope
- Compatible with
- TE 12 thermostatic expansion valve
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss

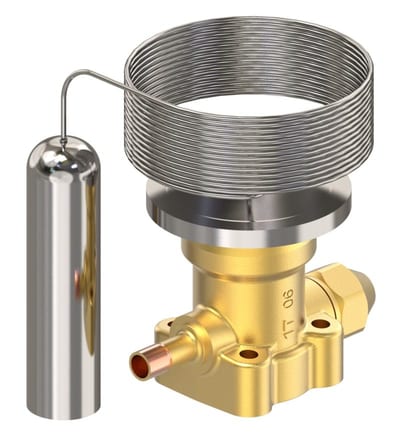

Danfoss power element for TE 5 thermostatic expansion valve, R404A/R507A, externally equalized, MOP 22 psig at -25 °C
067B3391
Danfoss

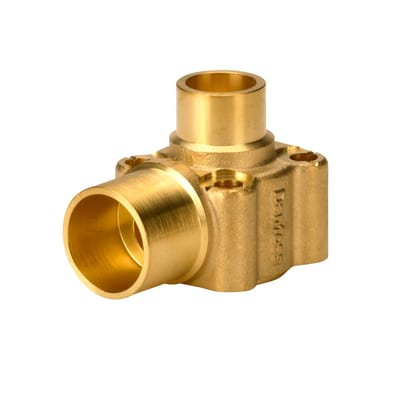

Danfoss TEH valve body for TE 5 thermostatic expansion valve, Solder ODF 12 mm × Solder ODF 22 mm, straightway
