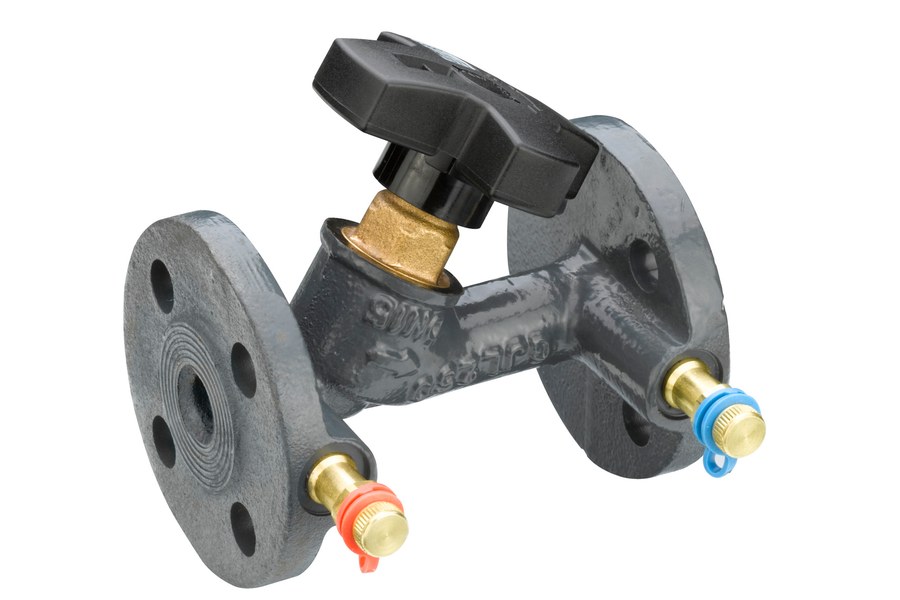

Danfoss MNF DN 25 PN 25 flanged manual static balancing valve

Danfoss MNF DN 25 PN 25 — flanged manual (static) double-regulating balancing valve, the ductile-iron sibling of the MSV-F2 range for the risers and branches of heating and cooling systems. Presetting the handwheel fixes the valve authority so design flow is distributed across the network; two built-in test plugs allow differential-pressure and flow measurement at commissioning without extra tappings, and the valve doubles as a shut-off. Kvs 9 m³/h, maximum differential pressure 200 KPa, media temperature -10 °C to 130 °C, Ductile iron (EN-GJS 400-15) body. OEM P/N 003Z1194. EAN 5710104514390. Technical data quoted verbatim from store.danfoss.com (code 003Z1194).

Code number

003Z1194

Type

MNF

Product group

Manual balancing

Description

MNF DN 25 with test plugs PN25, manual balancing valve

Valve size

DN 25

Valve body material

Ductile iron (EN-GJS 400-15)

Connection types

Flange

Test plugs

With test plugs

Kvs values [m³/h]

9 m³/h

Setting scale

Yes

Shut-off function

Yes

Drain function

No

Pressure class

PN 25

Differential pressure over the valve [kPa] [Max]

200 KPa

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

130 °C

Contains batteries

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

b53622cd-50a2-4626-a23a-856f12c6983e

SCIP dossier product name

MSV-F2 MNF DN15-300

Net weight

3.49 Kilogram

Gross weight

3.49 Kilogram

Volume

6.577 Liter

EAN

5710104514390

Material

Valve body Ductile iron (EN-GJS 400-15)

Pressure Rating

PN 25

Temperature Range

-10 °C to 130 °C (media)

Classification / Approval

CE

HS Code

8481.80
