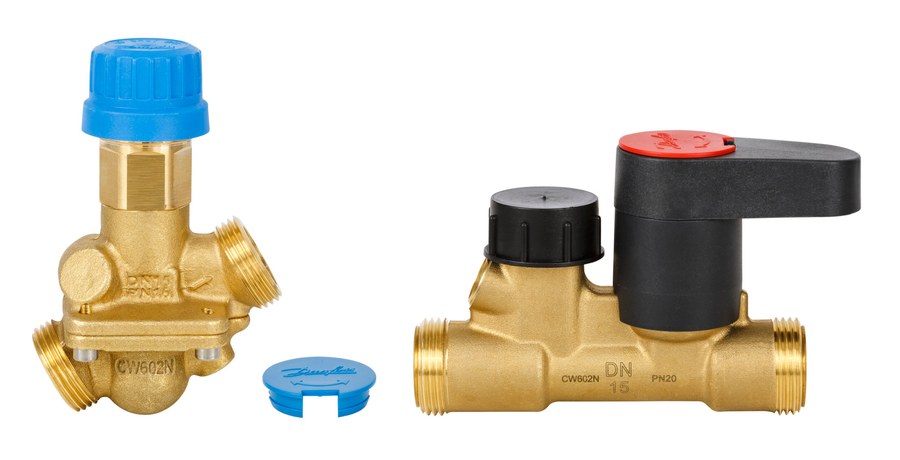

Danfoss AB-QM + MSV-S set DN 15 — PICV with partner shut-off valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AB-QM and MSV-S set, DN 15 — a pre-paired terminal-unit assembly combining an AB-QM pressure-independent balancing and control valve on one side of the coil with an MSV-S manual shut-off/drain valve on the other, giving flow control, isolation and drain-down in a single ordered kit. The AB-QM holds design flow independent of network pressure while the MSV-S allows the terminal to be isolated and drained for service. Without test plugs. OEM P/N 003Z1242. EAN 5710104030500. Technical data quoted verbatim from store.danfoss.com (code 003Z1242).
Technical Specifications
- Code number
- 003Z1242
- Type
- AB-QM set
- Product group
- Pressure independent balancing and control valves
- Description
- Set of AB-QM and MSV-S, DN 15
- Valve size
- DN 15
- Test plugs
- Without test plugs
- Contains batteries
- No
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- China RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- SCIP dossier no.
- f81e6477-f376-4990-85f4-bfb5f93ed1f1
- SCIP dossier product name
- VALVE set AB-QM + MSV-S DN15
- Net weight
- 0.976 Kilogram
- Gross weight
- 0.982 Kilogram
- Volume
- 2.053 Liter
- EAN
- 5710104030500
Standards & Compliance
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
The set pairs one AB-QM PICV with one MSV-S manual isolation/drain valve for a DN 15 terminal circuit. Fit a compatible M30 x 1.5 actuator on the AB-QM for modulating or on/off control (ordered separately).
Product Documentation
More from Danfoss
Danfoss
Danfoss AB-QM + MSV-S set DN 20 — PICV with partner shut-off valve
003Z1243
Danfoss
Danfoss AB-QM + MSV-S set DN 25 — PICV with partner shut-off valve
003Z1244
Danfoss
Danfoss AB-QM + MSV-S set DN 32 — PICV with partner shut-off valve
003Z1245
Danfoss

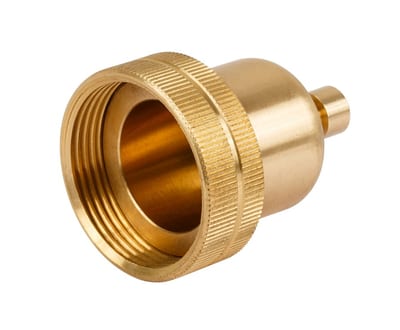

Danfoss Shut-off and protection piece for AB-QM — hydronic-balancing accessory
003Z1230
Danfoss
Danfoss Locking Ring for AB-QM DN 10-32 (5 pcs.) — hydronic-balancing accessory
003Z1236
Danfoss

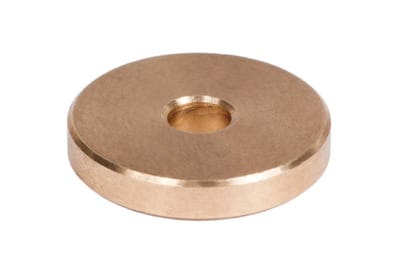

Danfoss Stroke limiter for TWA-Q & AB-QM 4.0/AB-PM — hydronic-balancing accessory
003Z1239
Danfoss

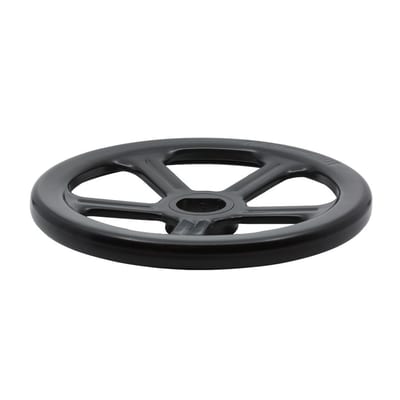

Danfoss MSV-F2-DN400 Handwheel single package — hydronic-balancing accessory
003Z1183
Danfoss

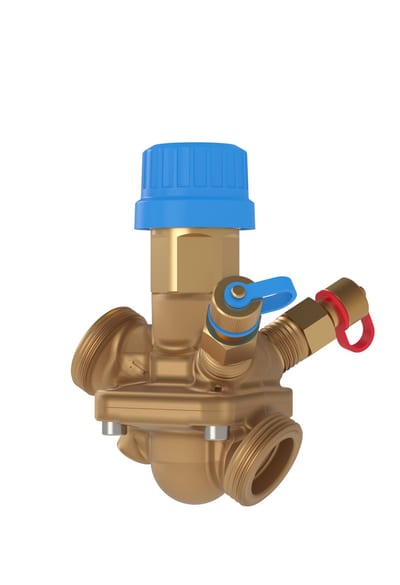

Danfoss AB-QM DN 10 LF low-flow pressure-independent balancing & control valve, with test plugs
