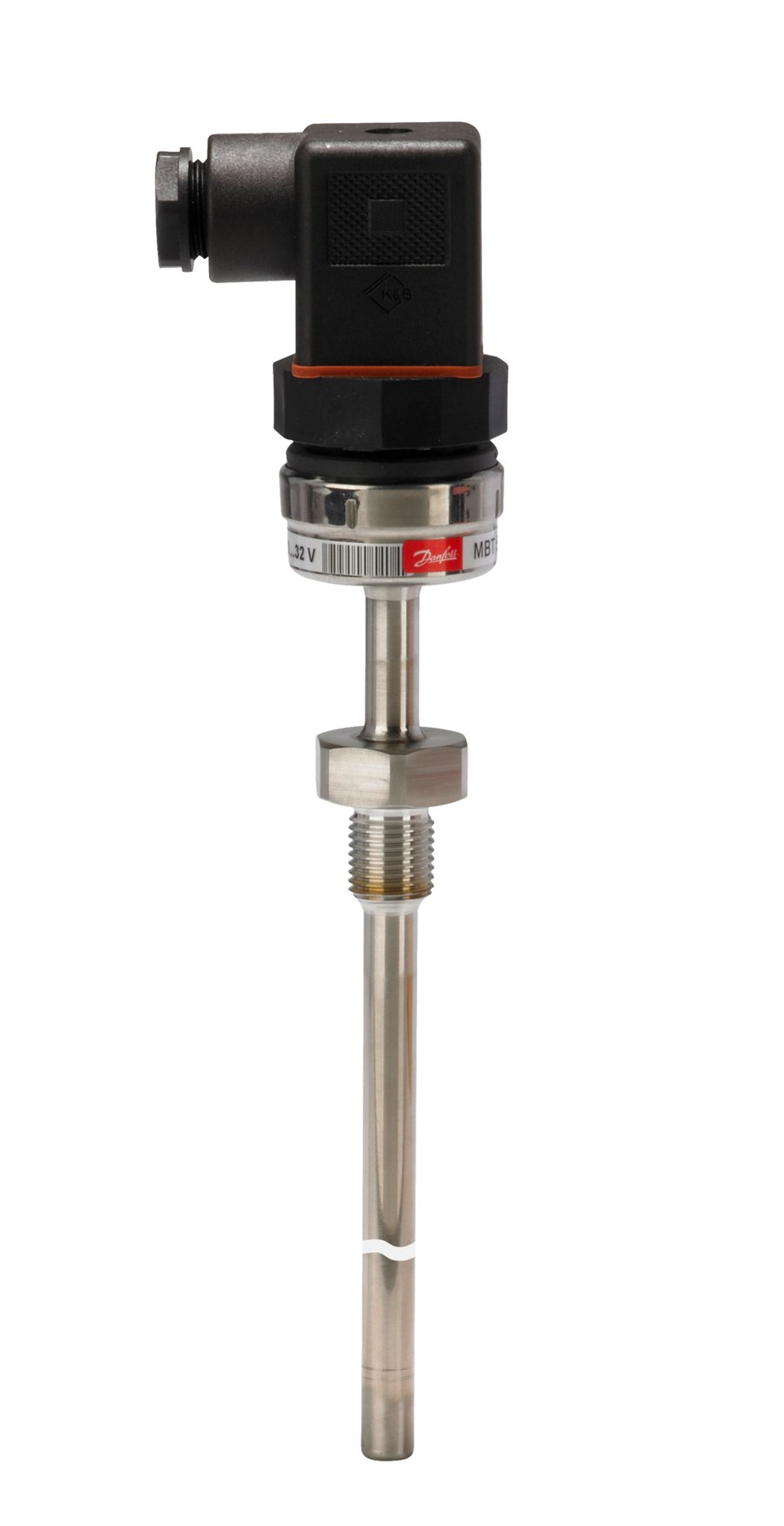

Danfoss MBT 5560 temperature transmitter, Pt 1000, 4-20 mA (0 to +150 C), 250 mm insertion, G 1/4 process connection, pg9 angular (code 084Z4087)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5560 insertion temperature transmitter, code 084Z4087 (type designation MBT 5560-0001-0250-10-115). Compact temperature sensor with an integrated 2-wire, loop-powered transmitter that converts the resistance of a built-in Pt 1000 platinum element into a standardized 4-20 mA signal, so a defined temperature is transmitted directly without a separate head or rail transmitter. For engine cooling water, lubricating and hydraulic oil, compressor, refrigeration and HVAC/R circuits, and marine and industrial plant. Insertion length 250 mm; G 1/4 male (ISO 228-1-A) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm dia. Element measuring range -50 to +200 C (-58 to +392 F). Output 4-20 mA (2-wire) over a 0 to +150 C span; supply 10-32 V DC. Electrical connection: Angular connector, Pg 9 (EN 175301-803-A), male and female. IP65 enclosure per IEC 60529. The built-in transmitter is factory-scaled to a 0 to +150 C output span. Supplied in a 9-piece multipack. CE marked.
Specifications
- Part number
- 084Z4087
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 250 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5560 sensor with factory built-in transmitter — the 4-20 mA (2-wire) 0 to +150 C span is preset by the type designation and is not field-rangeable on the standard version. Confirm the required insertion length (250 mm), process thread (G 1/4), electrical connector and supply match the pocket/thermowell and controller input before ordering. A matching thermowell can be ordered separately.
Standards
- EN 60751
- ISO 228-1-A
- IEC 60529
Approvals
