Danfoss MBT 5560 temperature transmitter, Pt 1000, 4-20 mA (-40 to +150 C), 50 mm insertion, M 14 x 1.5 process connection, bayonet

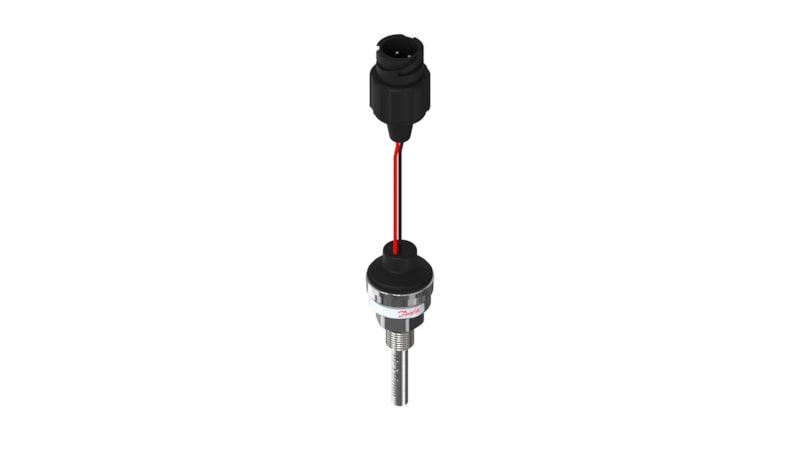

Danfoss MBT 5560 insertion temperature transmitter, code 084Z4151 (type designation MBT 5560-0000-0050-FB-815). Compact temperature sensor with an integrated 2-wire, loop-powered transmitter that converts the resistance of a built-in Pt 1000 platinum element into a standardized 4-20 mA signal, so a defined temperature is transmitted directly without a separate head or rail transmitter. For engine cooling water, lubricating and hydraulic oil, compressor, refrigeration and HVAC/R circuits, and marine and industrial plant. Insertion length 50 mm; M 14 x 1.5 male (ISO 965) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm dia. Element measuring range -50 to +200 C (-58 to +392 F). Output 4-20 mA (2-wire) over a -40 to +150 C span; supply 10-32 V DC. Electrical connection: Bayonet, 4-pin (DIN 72585) with flying leads. IP67 enclosure per IEC 60529. The built-in transmitter is factory-scaled to a -40 to +150 C output span. Supplied in a 13-piece multipack. CE marked.

Type

MBT 5560 temperature sensor with built-in transmitter

Type designation

MBT 5560-0000-0050-FB-815

Code number

084Z4151

Sensor element

Pt 1000 platinum resistance (1000 ohm at 0 C), EN 60751

Transmitter accuracy

< ±1% FS

Measuring range (element)

-50 to +200 C (-58 to +392 F)

Output signal

4-20 mA (2-wire, loop-powered), transmitter setting range -40 to +150 C

Supply voltage

10-32 V DC

Insertion length

50 mm

Process connection

M 14 x 1.5 male (ISO 965)

Protection tube

AISI 316 Ti stainless steel, 8 mm dia.

Electrical connection

Bayonet, 4-pin (DIN 72585) with flying leads

Enclosure rating

IP67 per IEC 60529

Packing quantity

13 pc (multipack)

Net weight

0.15 kg

Approvals

CE

EAN

5702428481519

Product group

Sensors

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

Approval

CE

CE mark

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316 Ti

Connection type

M

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Flying leads

Electrical connection size

4 pin

Electrical connection standard

DIN 72585

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

No

Insertion length [in]

1.97 in

Insertion length [mm]

50 mm

Insertion type

Fixed

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

14x1.5

Process connection standard

ISO 965

Process connection type

M

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 TI

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element tolerance

< ± 1% FS

Sensor element type

Pt

Sensor Insert

Fixed

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

10 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

150 °C

Transmitter setting range [°C] [min]

-40 °C

Transmitter setting range [°F] [max]

302 °F

Transmitter setting range [°F] [min]

-40 °F

Transmitter type

Integrated

Size / Series

50 mm insertion

Material

AISI 316 Ti stainless steel

Thread Standard

ISO 965

Temperature Range

-50 to +200 C (-58 to +392 F)

IP Rating

IP67

HS Code

9025.19
