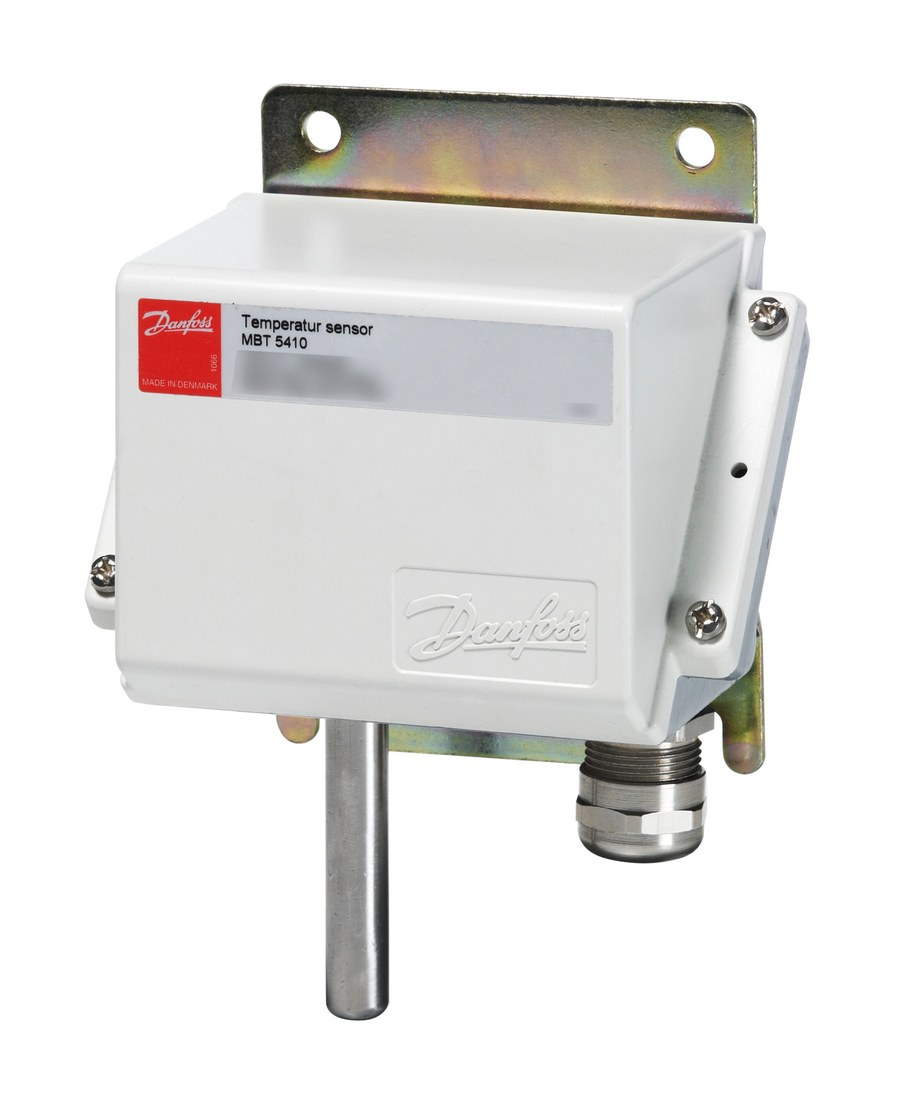

Danfoss MBT 5410 temperature sensor, PT100 100 ohm, 60 mm insertion
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5410 temperature sensor, code 084Z8280 (type designation MBT 5410-000-060-000-0000). Compact box-head temperature sensor (IP67) with an exchangeable Pt 100 measuring insert, for machinery and refrigeration monitoring duties. Standardized Pt 100 platinum resistance element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 60 mm; plain-stem mounting (process connection not specified on the Danfoss listing). AISI 316 Ti stainless-steel protection tube, 10 mm. Measuring range -50 to +100 C (-58 to +212 F); output Ohm (resistance). Box head (metal/plastic), sealed cable/terminal enclosure; IP67 enclosure per IEC 60529. The measuring insert is exchangeable. Supplied in a 8-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 5410 temperature sensor
- Type designation
- MBT 5410-000-060-000-0000
- Code number
- 084Z8280
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 60 mm
- Process connection
- Plain stem (not specified on Danfoss listing)
- Protection tube
- AISI 316 Ti stainless steel, 10 mm
- Measuring range
- -50 to +100 C (-58 to +212 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Box head (metal/plastic), sealed cable/terminal enclosure
- Enclosure rating
- IP67 per IEC 60529
- Net weight
- 0.597 kg
- Gross weight
- 0.68 kg
- Packing format
- Multi pack (8 pc)
- Approvals
- CE
- EAN
- 5702423131662
- Product group
- Sensors
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 terminals
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 2.36 in
- Insertion length [mm]
- 60 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 100 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 212 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Protection tube diameter [in]
- 0.394 in
- Protection tube diameter [mm]
- 10 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 100 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 212 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 60 mm insertion
- Material
- AISI 316 Ti stainless steel
- Temperature Range
- -50 to +100 C
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5410 insertion sensor with exchangeable measuring insert. Confirm the required insertion length (60 mm) and element type (Pt 100) match the thermowell/pocket and controller input before ordering. A matching thermowell can be ordered separately.
