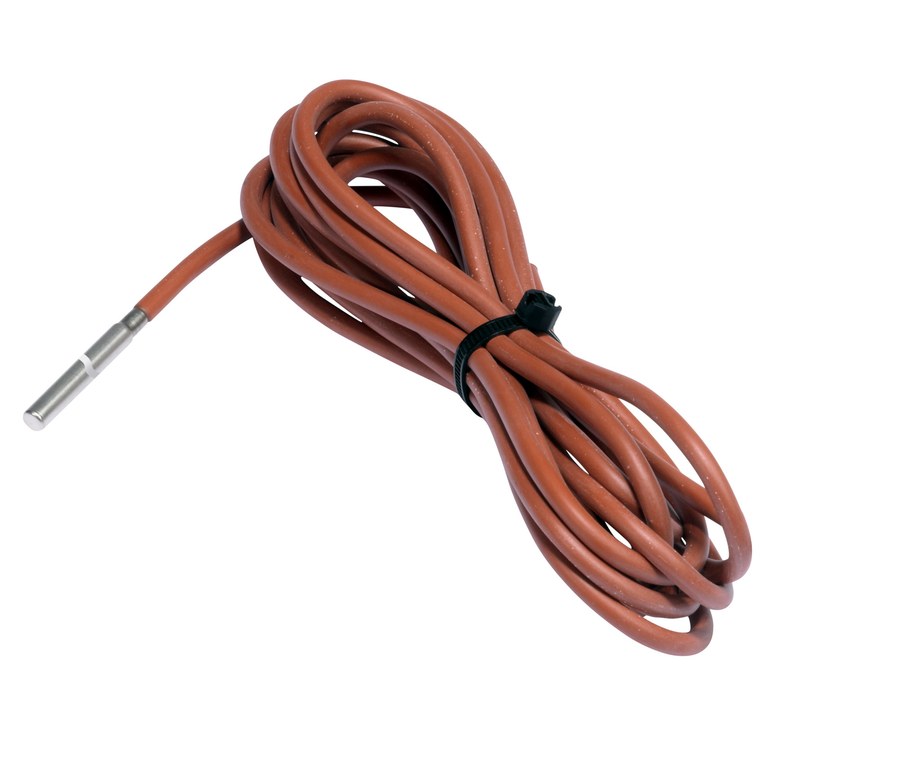

Danfoss MBT 153 cable temperature sensor, Pt 100 100 ohm, 5.5 m silicone cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 153 universal cable temperature sensor, code 084Z6037 (type designation MBT 153-2000-0550). Flexible cable-type RTD for controlling cooling water and ventilation systems in general industry and marine installations. Standardized Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751. 5.5 m silicone cable; AISI 305 stainless-steel protection tube, 6 mm diameter; 2-wire connection; resistance (ohm) output. Measuring range -50 to +200 C (-58 to +392 F) (silicone cable, -60 to +200 C cable rating). IP68 enclosure per IEC 60529. Mounts in an MBT 120 sensor pocket (ordered separately) for pressurized measuring points. CE marked.
Technical Specifications
- Type
- MBT 153 (universal cable temperature sensor)
- Type designation
- MBT 153-2000-0550
- Code number
- 084Z6037
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751 (± (0.3 + 0.005 × t) C)
- Cable length
- 5.5 m
- Cable material
- silicone
- Protection tube
- AISI 305 stainless steel, 6 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Cable temperature rating
- -60 to +200 C
- Output signal
- Ohm (resistance)
- Electrical connection
- 2-wire cable
- Enclosure rating
- IP68 per IEC 60529
- Approvals
- CE
- EAN
- 5702423150229
- Net weight
- 0.167 Kilogram
- Product group
- Sensors
- Approval
- CE
- Cable length [in]
- 217 in
- Cable length [m]
- 5.5 m
- Cable tempr. range [°C] [max]
- 200 °C
- Cable tempr. range [°C] [min]
- -60 °C
- Cable tempr. range [°F] [max]
- 392 °F
- Cable tempr. range [°F] [min]
- -76 °F
- Cable type
- Silicone
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP68
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 305
- REACH Candidate List substances
- No
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 5.5 m cable
- Material
- AISI 305 stainless steel
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP68
- HS Code
- 9025.19
Compatibility & Fitment
MBT 153 cable sensor. For pressurized points install in a matching MBT 120 sensor pocket (thermowell). Confirm cable length (5.5 m), element type (Pt 100) and controller input before ordering.
