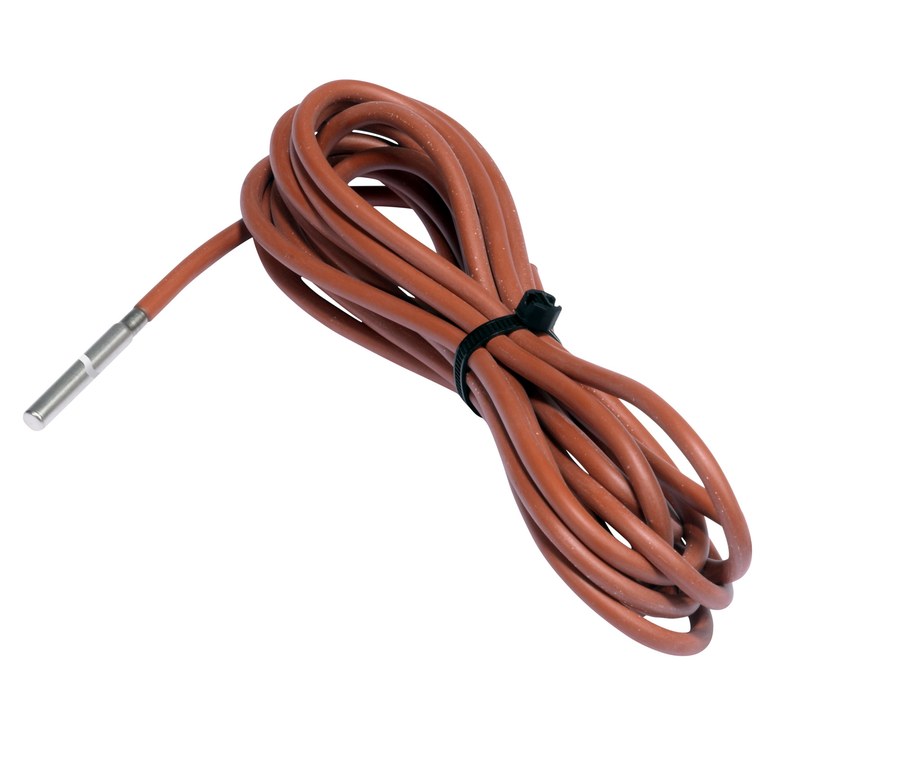

Danfoss MBT 153 cable temperature sensor, Pt 100 100 ohm, 3.5 m silicone cable (code 084Z6036)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 153 universal cable temperature sensor, code 084Z6036 (type designation MBT 153-2000-0350). Flexible cable-type RTD for controlling cooling water and ventilation systems in general industry and marine installations. Standardized Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751. 3.5 m silicone cable; AISI 305 stainless-steel protection tube, 6 mm diameter; 2-wire connection; resistance (ohm) output. Measuring range -50 to +200 C (-58 to +392 F) (silicone cable, -60 to +200 C cable rating). IP68 enclosure per IEC 60529. Mounts in an MBT 120 sensor pocket (ordered separately) for pressurized measuring points. CE marked.
Specifications
- Part number
- 084Z6036
- HS code
- 9025.19
- Material
- AISI 305 stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP68
- Standard size
- 3.5 m cable
Compatibility
MBT 153 cable sensor. For pressurized points install in a matching MBT 120 sensor pocket (thermowell). Confirm cable length (3.5 m), element type (Pt 100) and controller input before ordering.
Standards
Approvals
