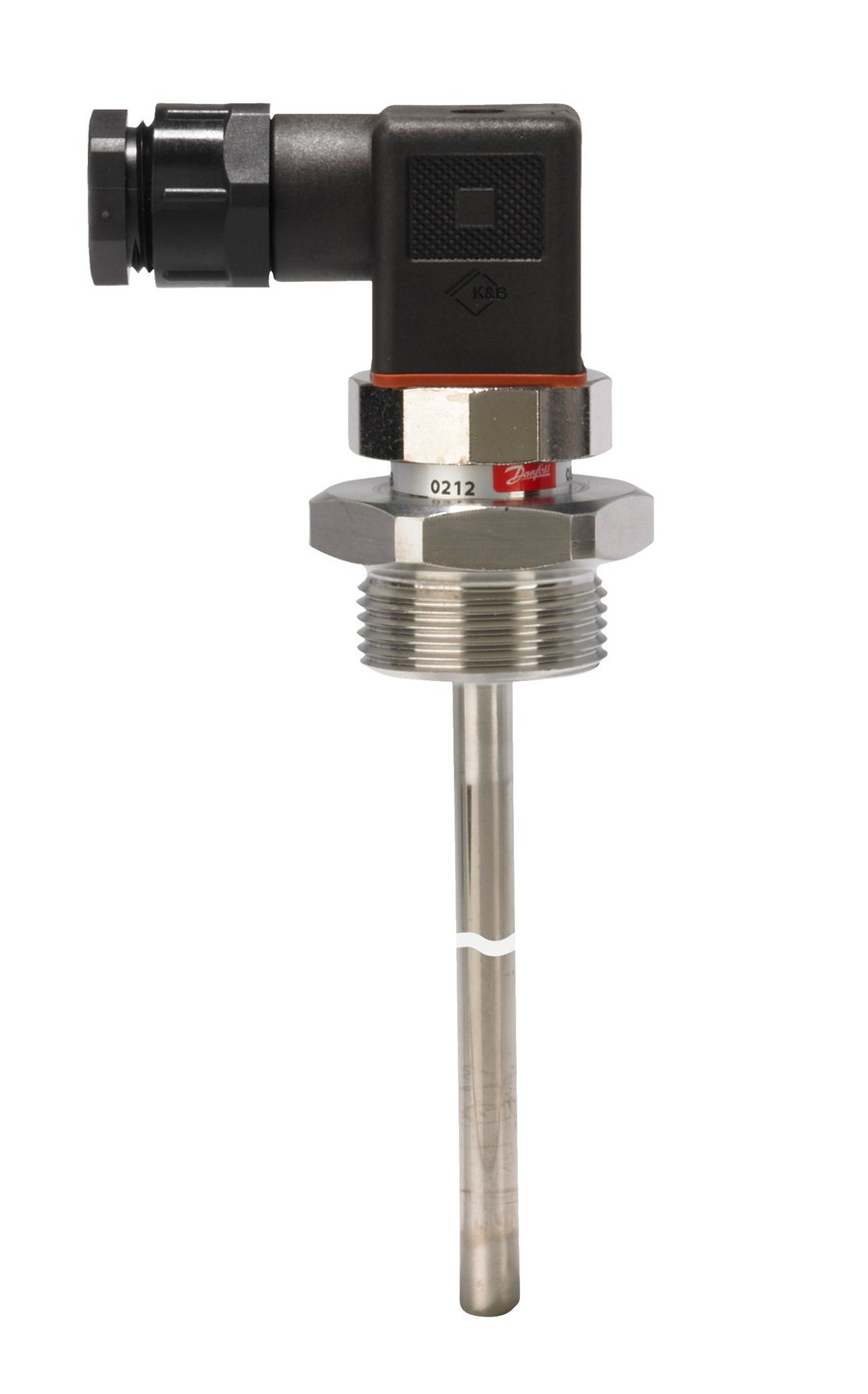

Danfoss MBT 5250 heavy-duty insertion temperature sensor, Pt100 100 ohm, 100 mm insertion, M18x1.5 process connection (code 084Z8245)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5250 heavy-duty insertion temperature sensor, code 084Z8245 (type designation MBT 5250-0000-100-250). Insertion RTD temperature sensor for controlling cooling water, lubricating oil, hydraulic oil and refrigeration plant in general industry and marine installations. Standardized Pt 100 platinum resistance element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 100 mm; M18x1.5 male process connection (ISO 965). AISI 316 Ti stainless-steel protection tube, 8 mm. Measuring range -50 to +200 C (-58 to +392 F); output Ohm (resistance). Angular connector (form A) per EN 175301-803-A, Pg 11; IP65 enclosure per IEC 60529. The measuring insert is exchangeable. Supplied in a 20-piece multipack. CE marked.
Specifications
- Part number
- 084Z8245
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C
- IP rating
- IP65
- Standard size
- 100 mm insertion
- Thread standard
- ISO 965
Compatibility
MBT 5250 insertion sensor with exchangeable measuring insert. Confirm the required insertion length (100 mm), process thread (M18x1.5) and element type (Pt 100) match the thermowell/pocket and controller input before ordering. A matching thermowell can be ordered separately.
Standards
- EN 60751
- EN 175301-803-A
- IEC 60529
Approvals
