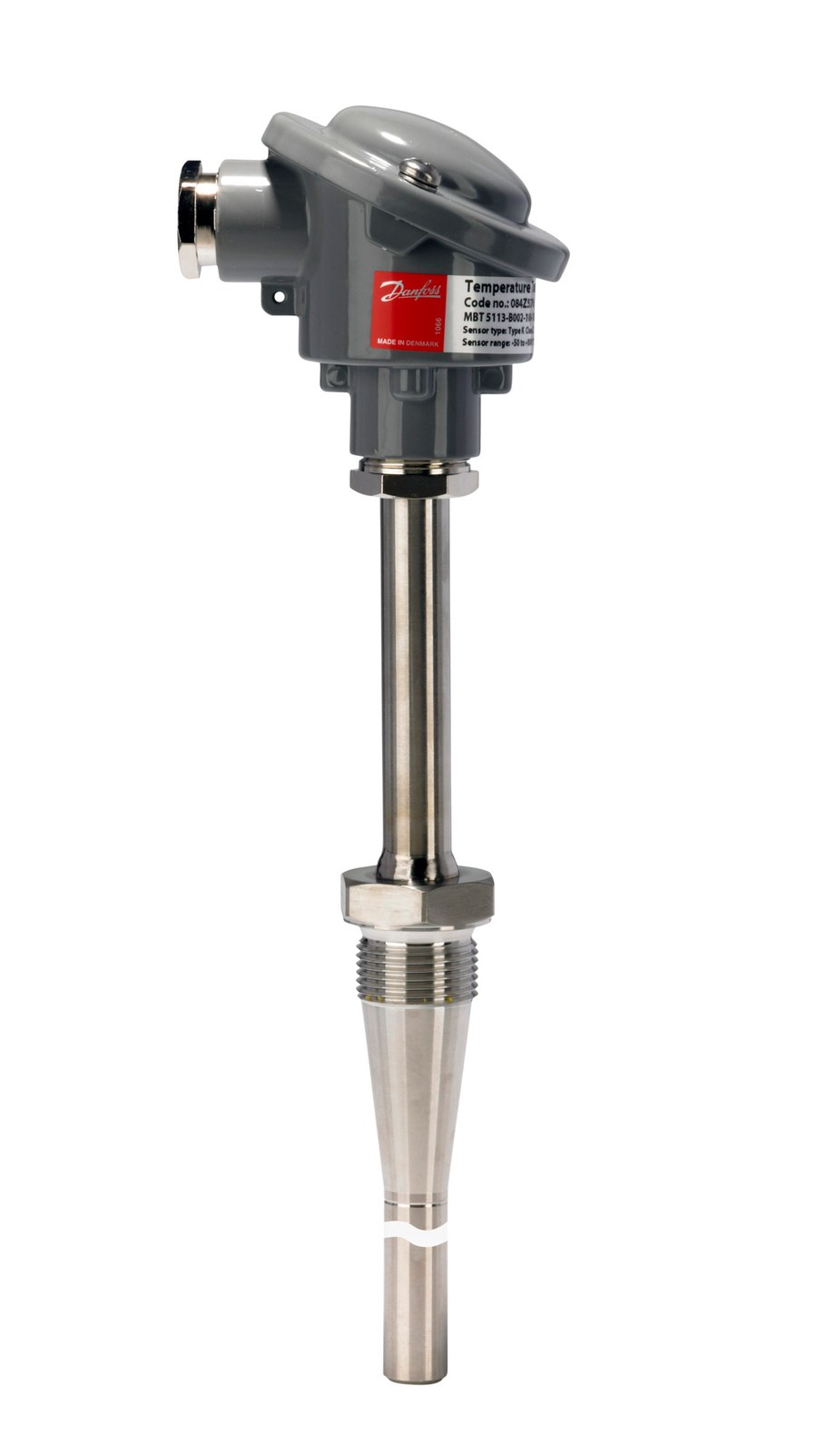

Danfoss MBT 5116 high-temperature insertion temperature sensor, Pt100 100 ohm, 200 mm insertion, G 3/4 process connection (code 084Z8254)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5116 high-temperature insertion temperature sensor, code 084Z8254 (type designation MBT 5116-B002-200-10-0000). High-temperature insertion sensor with a Type B terminal-box head, rated to +600 C, for exhaust-gas, thermal-oil, flue and process-heating duties in industrial and marine plant. Standardized Pt 100 platinum resistance element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 200 mm; G 3/4 male process connection (ISO 228-1-A). AISI 316 Ti stainless-steel protection tube, 14 mm (protection tube, high-temperature slim-line). Measuring range -50 to +600 C (-58 to +1112 F); output Ohm (resistance). Type B terminal-box head, Pg 16; IP65 enclosure per IEC 60529. The measuring insert is exchangeable. Supplied in a 6-piece multipack. CE marked.
Specifications
- Part number
- 084Z8254
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +600 C
- IP rating
- IP65
- Standard size
- 200 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5116 insertion sensor with exchangeable measuring insert. Confirm the required insertion length (200 mm), process thread (G 3/4) and element type (Pt 100) match the thermowell/pocket and controller input before ordering. A matching thermowell can be ordered separately.
Standards
Approvals
